Home >> Chevrolet >> 1983 >> Celebrity V6-260 4.3L DSL >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

Torque Specifications:

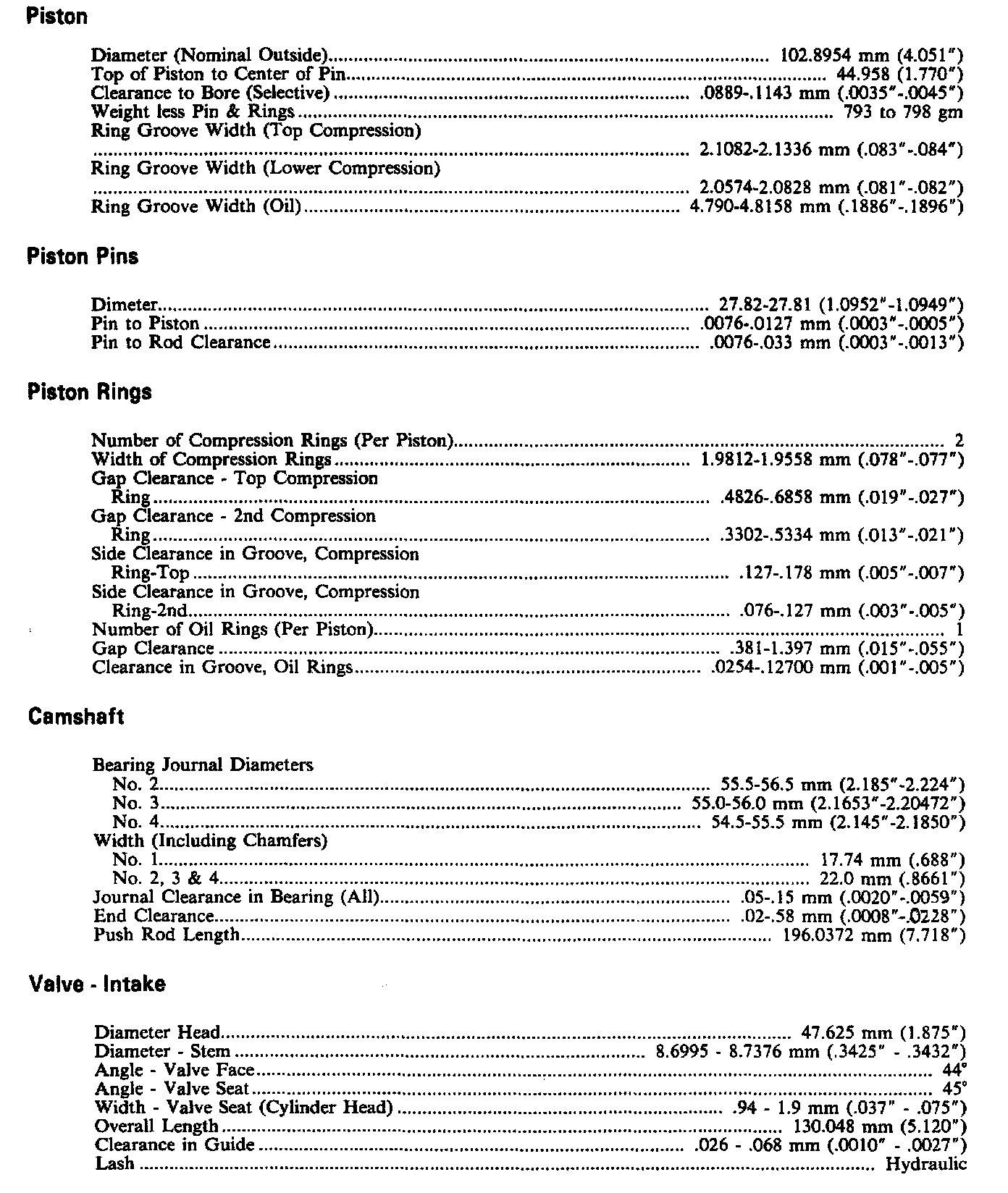

Continued Engine Specifications:

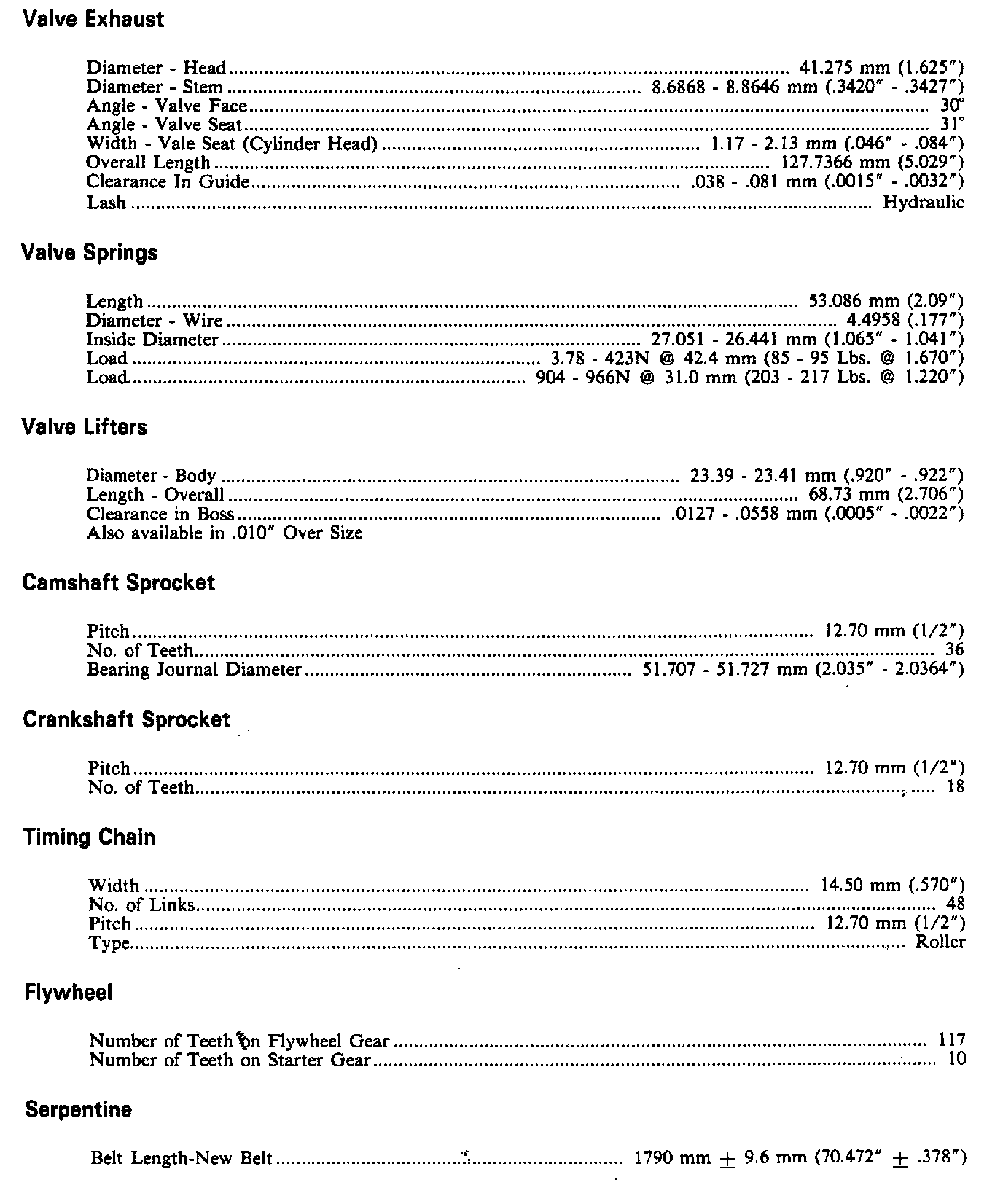

Continued Engine Specifications:







Intake Manifold Sequence:





Cylinder Head Sequence:
