Instrument Cluster / Carrier: Service and Repair

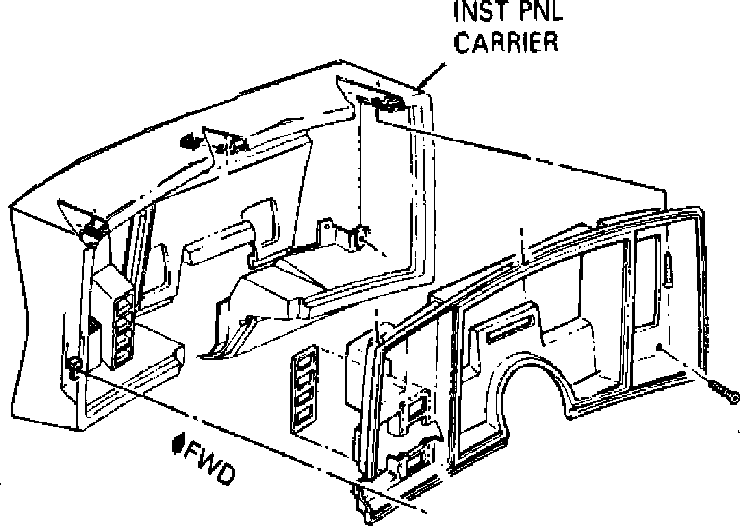

Fig. 9 Instrument cluster trim cover. Citation:

CITATION
1. Disconnect battery ground cable.
2. Remove radio knobs and nuts and the clock knob.
3. Remove instrument cluster bezel to panel carrier attaching screws, then pull bezel rearward for access, Fig. 9.
4. Remove spring clip retainer from knob shaft, then slide shaft out of switch housing.
5. Pull bezel rearward and disconnect accessory switch electrical connectors.
6. Remove instrument cluster bezel.
7. Remove four screws securing cluster assembly to instrument panel pad.
8. Disconnect shift indicator cable from steering column shift bowl.
9. Pull cluster rearward and disconnect speedometer cable and electrical connectors.
10. Remove instrument cluster from vehicle.
11. Reverse procedure to install.
