A/C Blower Relay

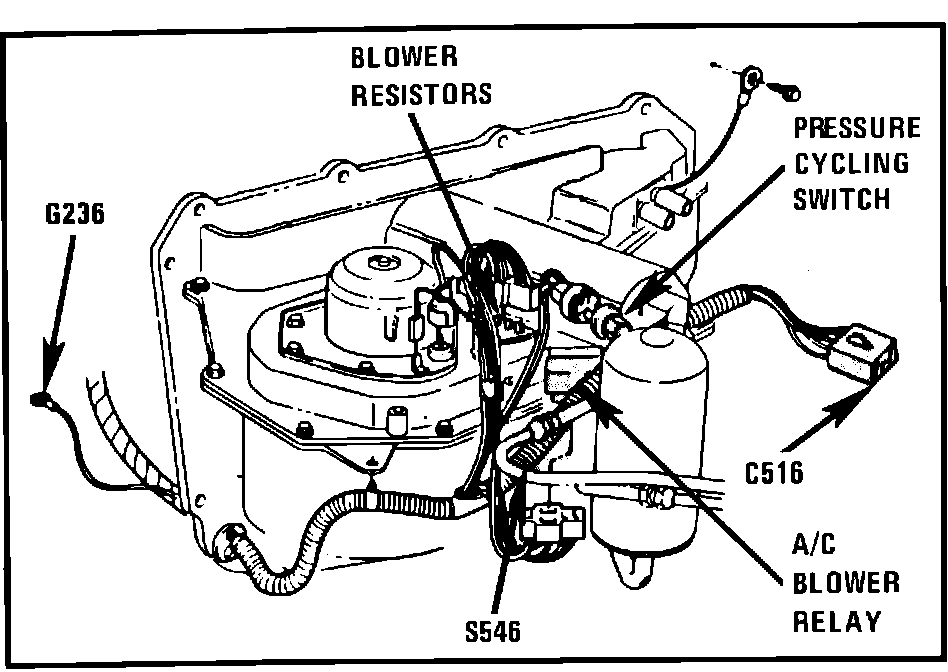

A/C Blower Relay
RH Side Of Engine Cowl:
RH Front Of Dash, Near Blower Motor
Applicable to: Caballero, El Camino, Malibu & Monte Carlo
