System Specifications

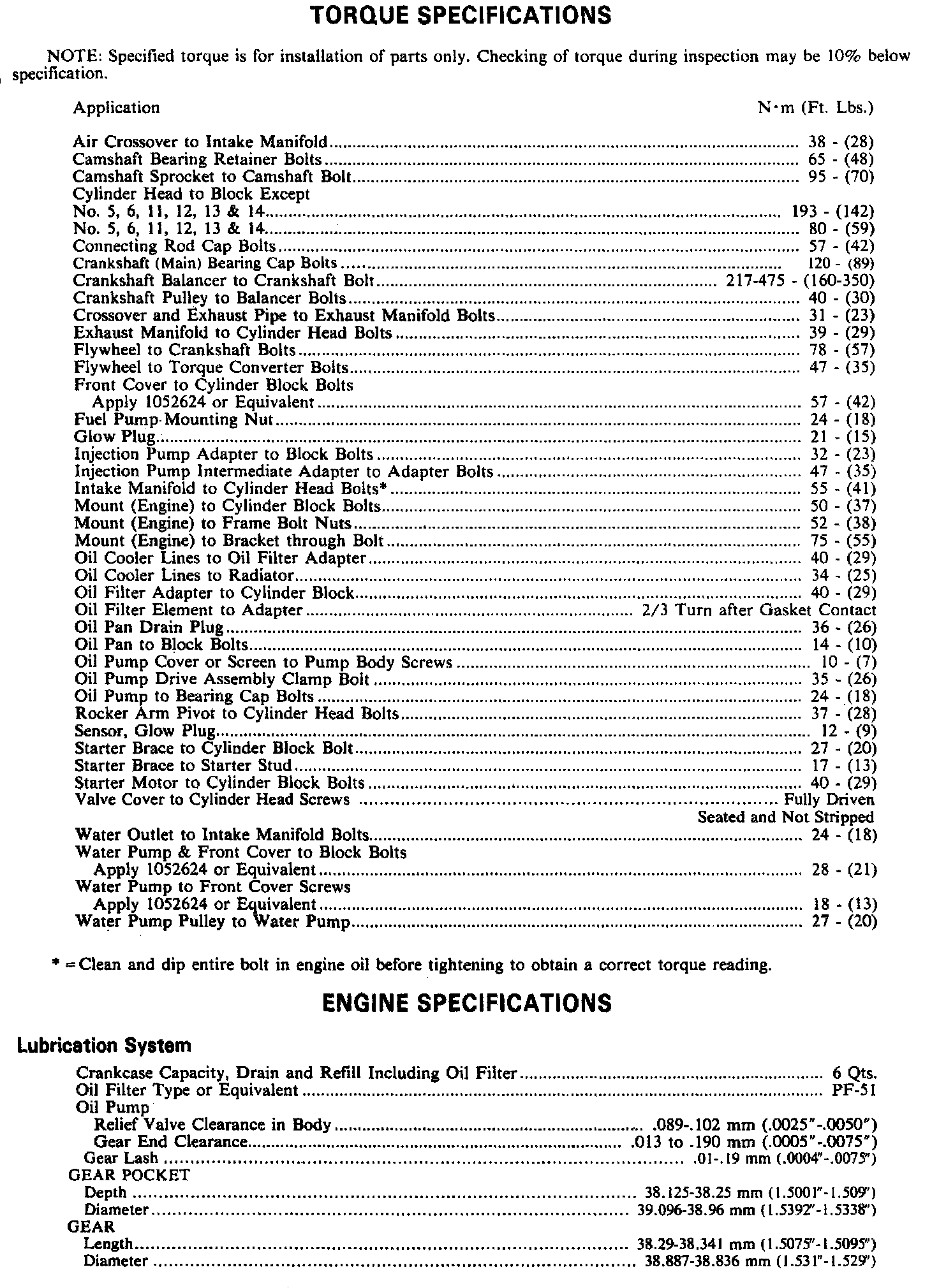

Torque & Engine Specifications:

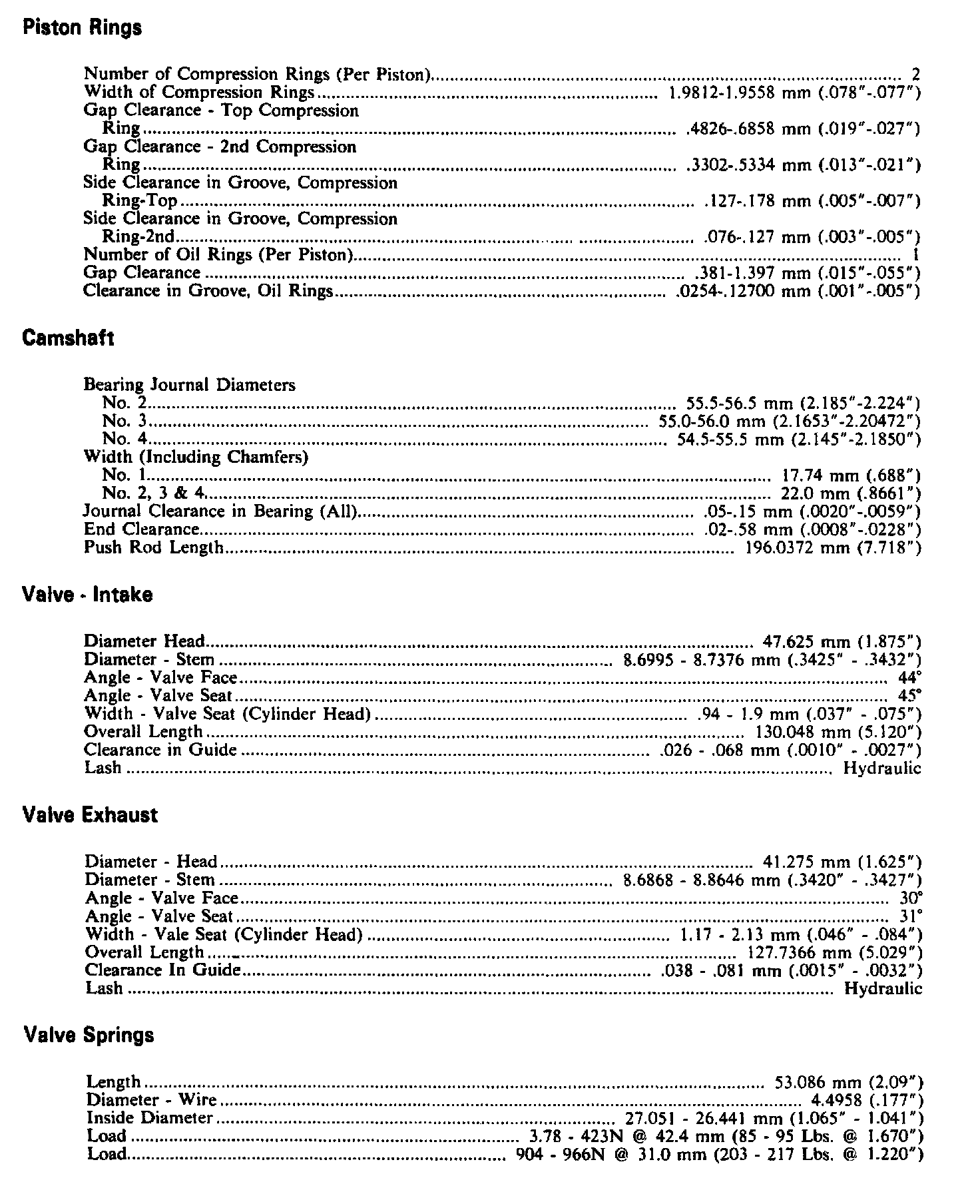

Continued Engine Specifications:

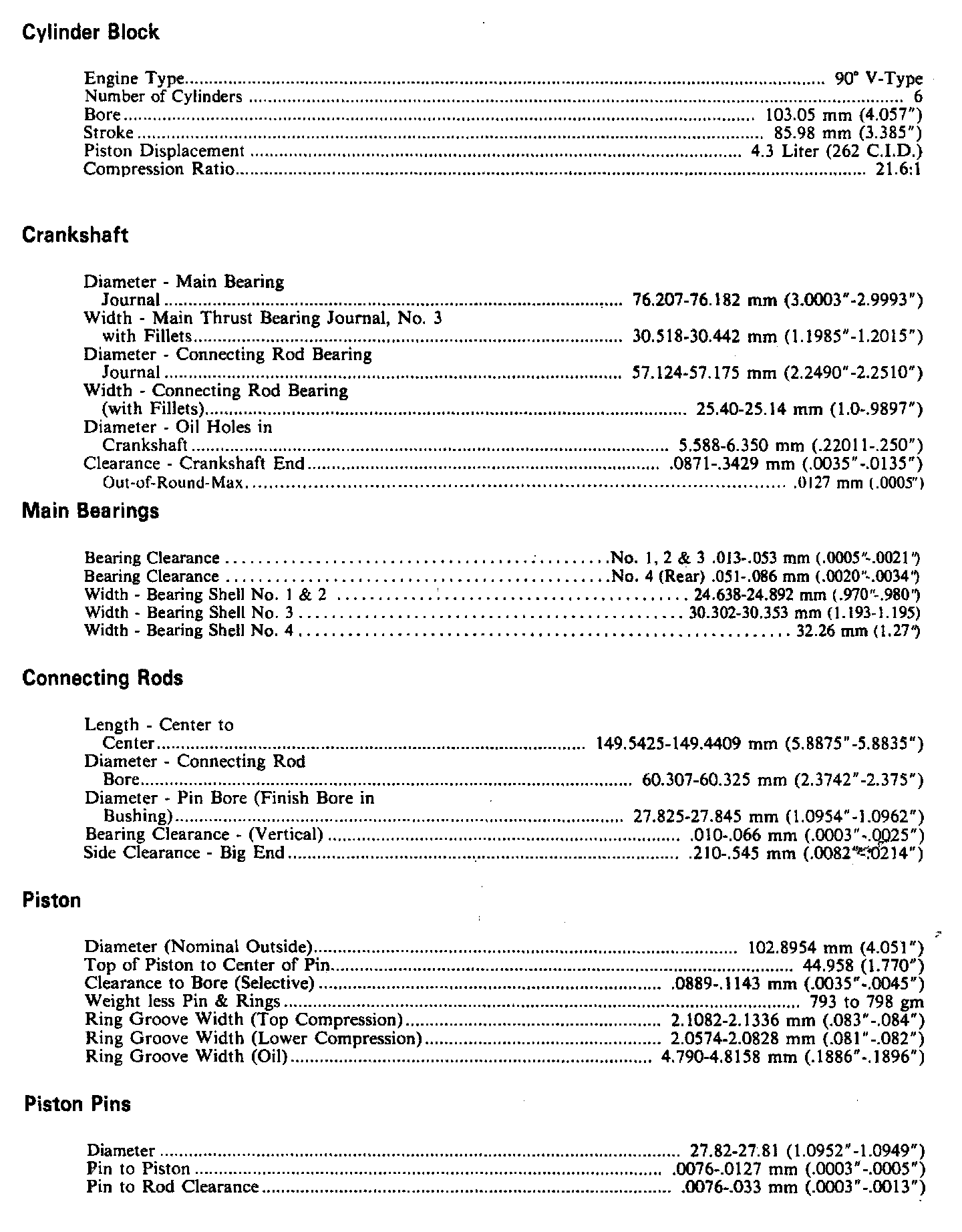

Continued Engine Specifications:









Intake Manifold Sequence:

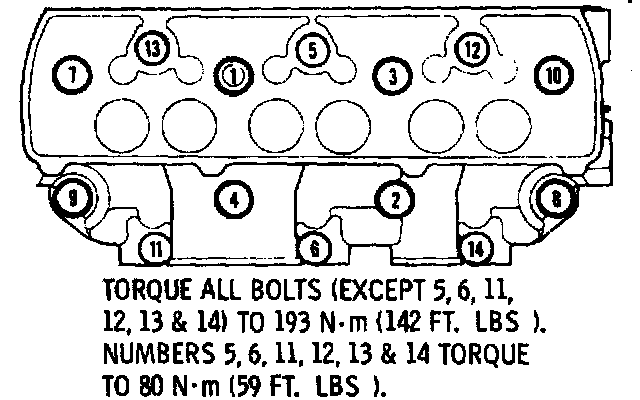

Cylinder Head Sequence:
