With Stereo Radio

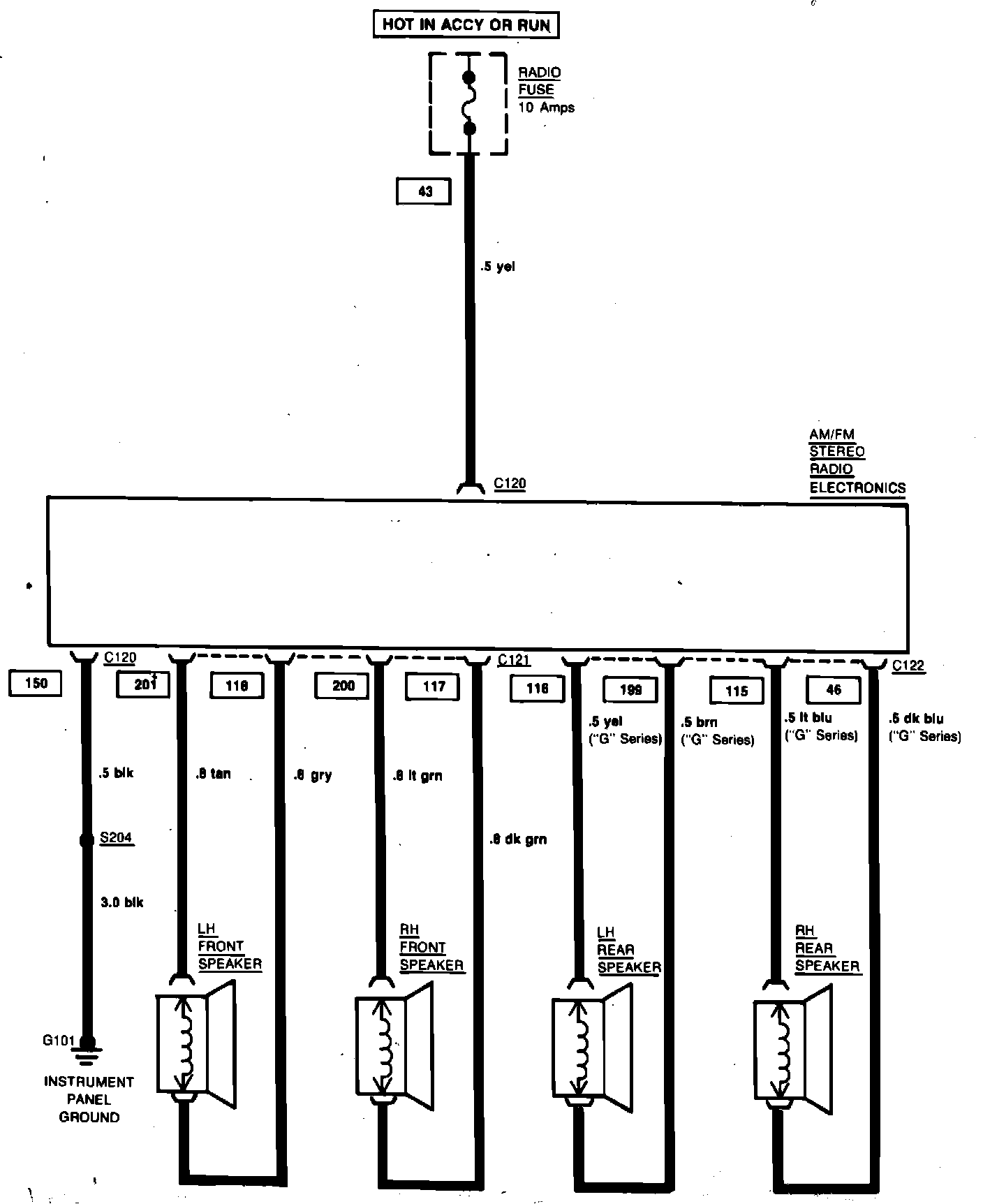

Fig. 428 Radio & Speaker Wiring Circuit (Stereo). 1983 Malibu (Sedan) & Monte Carlo:
