Hazard, License, Stop, Tail & Turn Signal

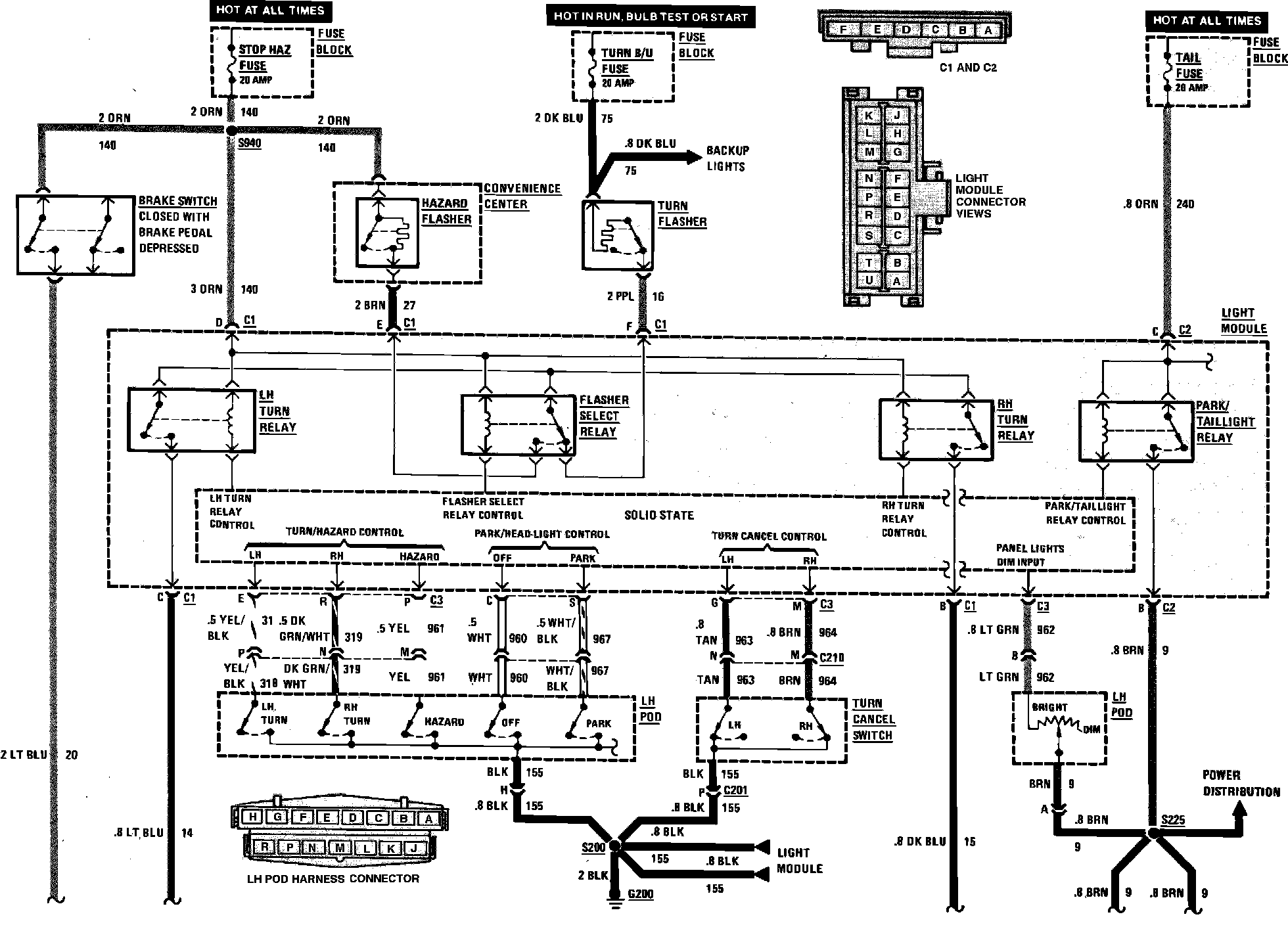

Front & Rear Marker, Front & Rear Park, Hazard, License, Stop, Tail & Turn Signal Lights (Berlinetta):

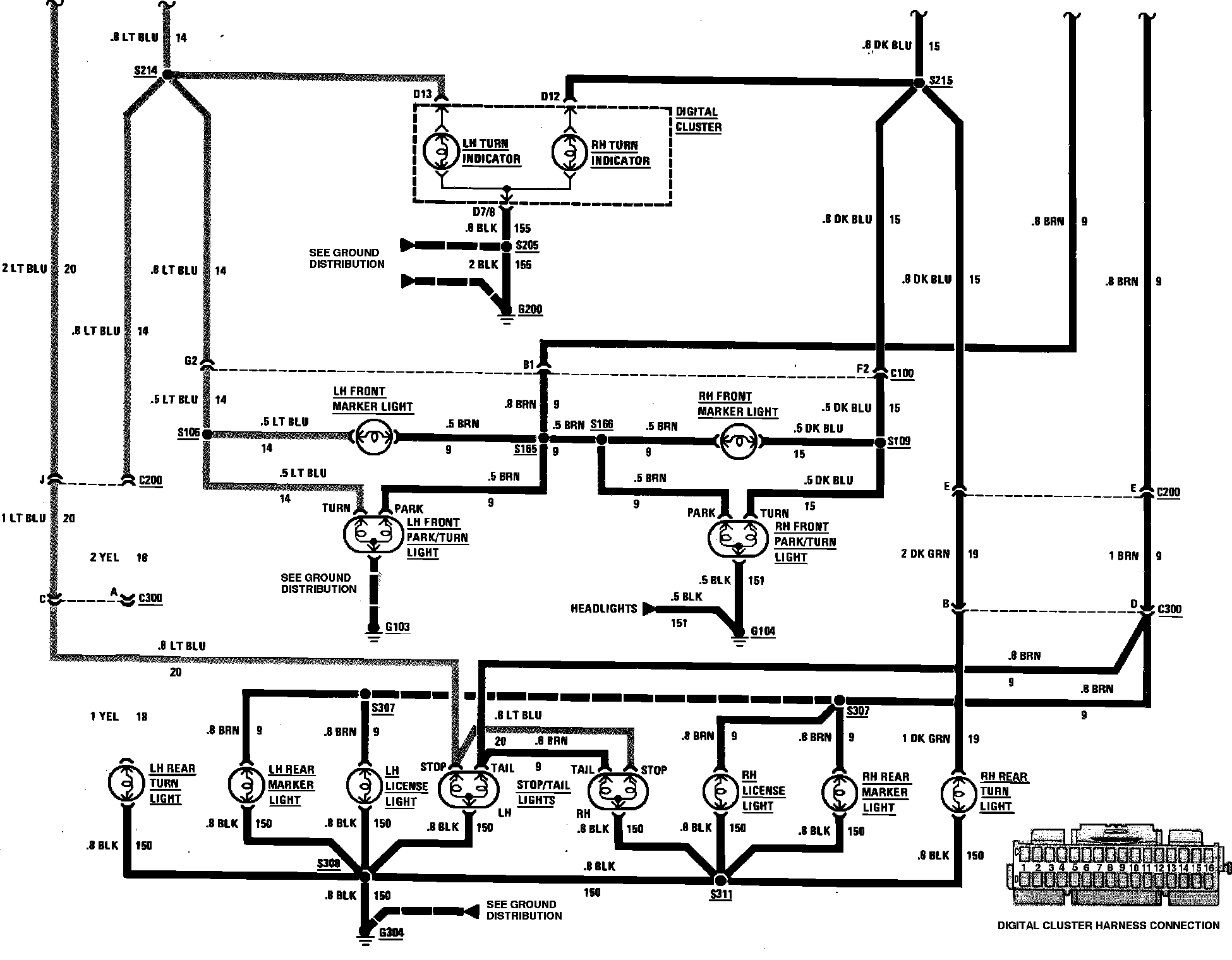

Front & Rear Marker, Front & Rear Park, Hazard, License, Stop, Tail & Turn Signal Lights (Berlinetta):
