Instrument Cluster Printed Circuit Board (Less Gages)
Instrument Cluster Printed Circuit Board (Less Gages)

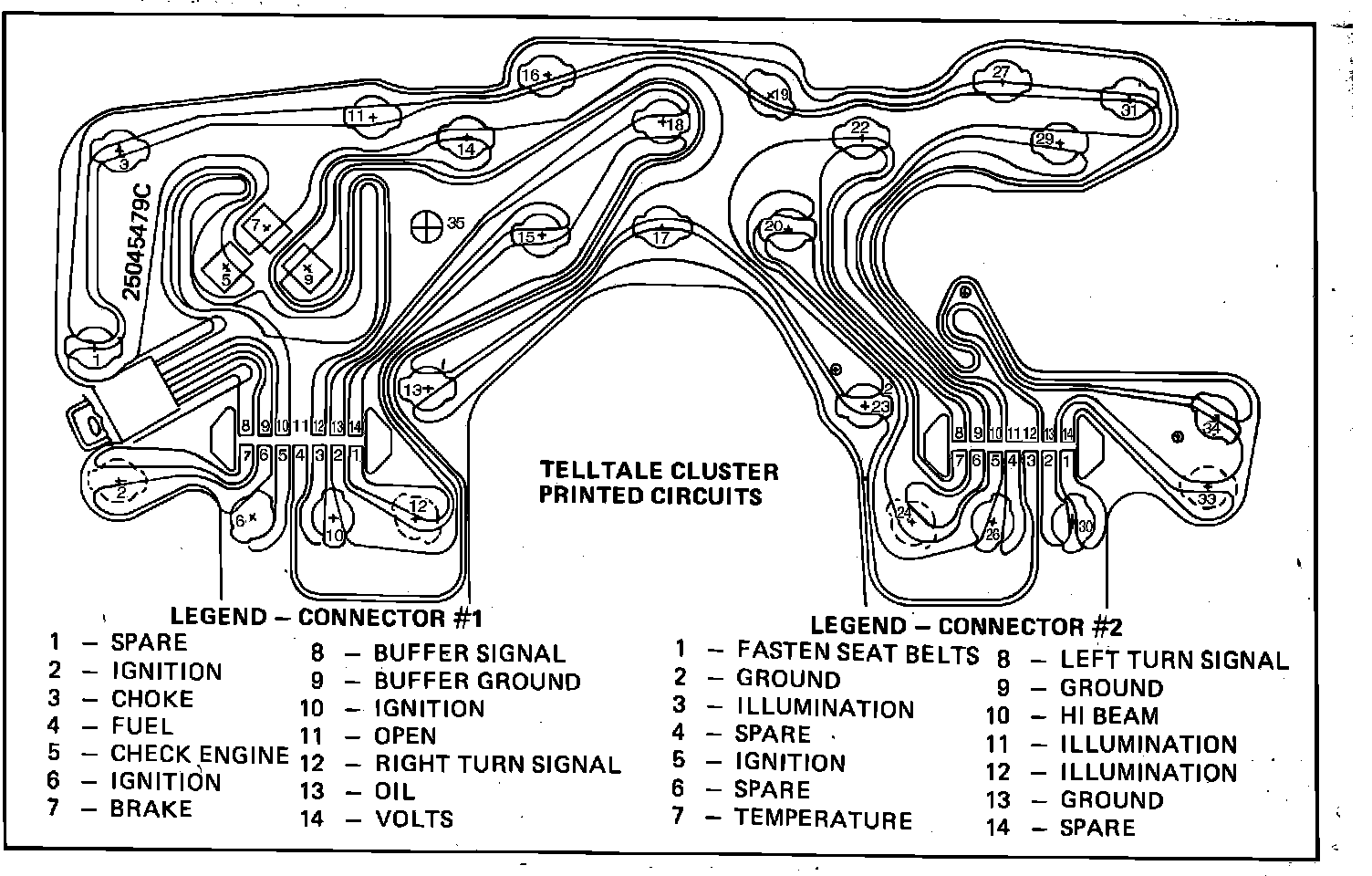

Instrument Cluster Printed Circuit (Less Gauge Package):
