Home >> Chevrolet >> 1984 >> Camaro L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Choke Heater

Choke Heater

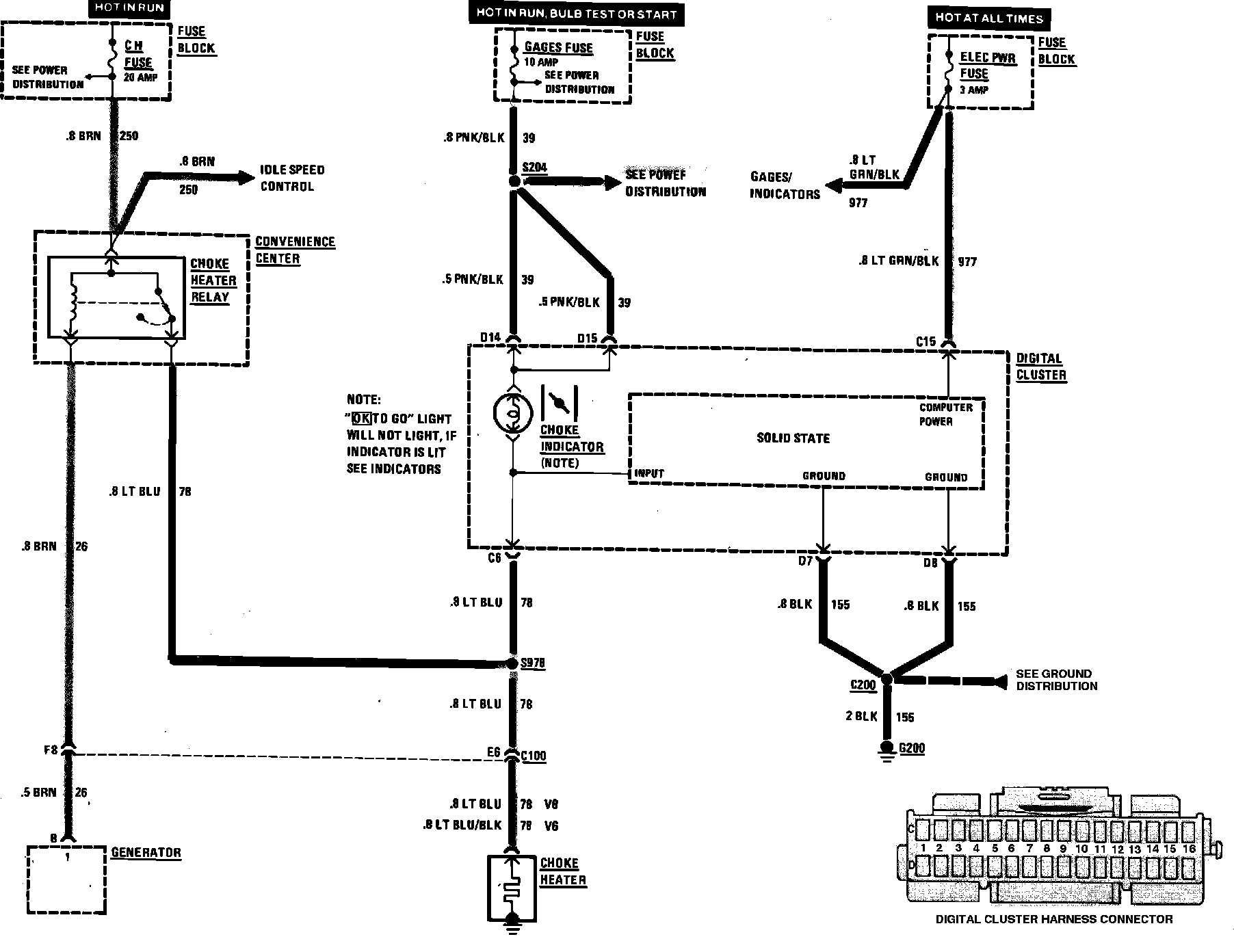

Choke Heater System Wiring Circuit. Berlinetta:
