Less Gauges
Less Gauges

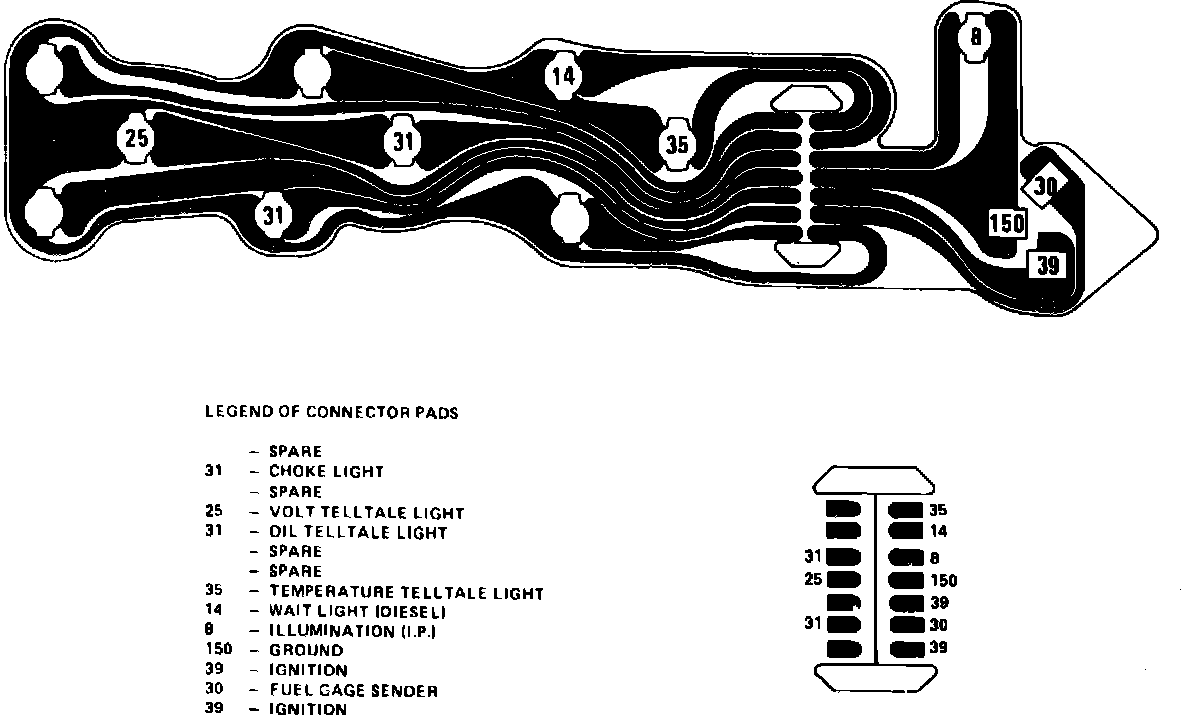

Instrument Panel Printed Circuit (Less Gauges) Celebrity & 1983 6000 & 6000LE:
