Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1984
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Coolant Temperature Sensor
Coolant Temperature Sensor

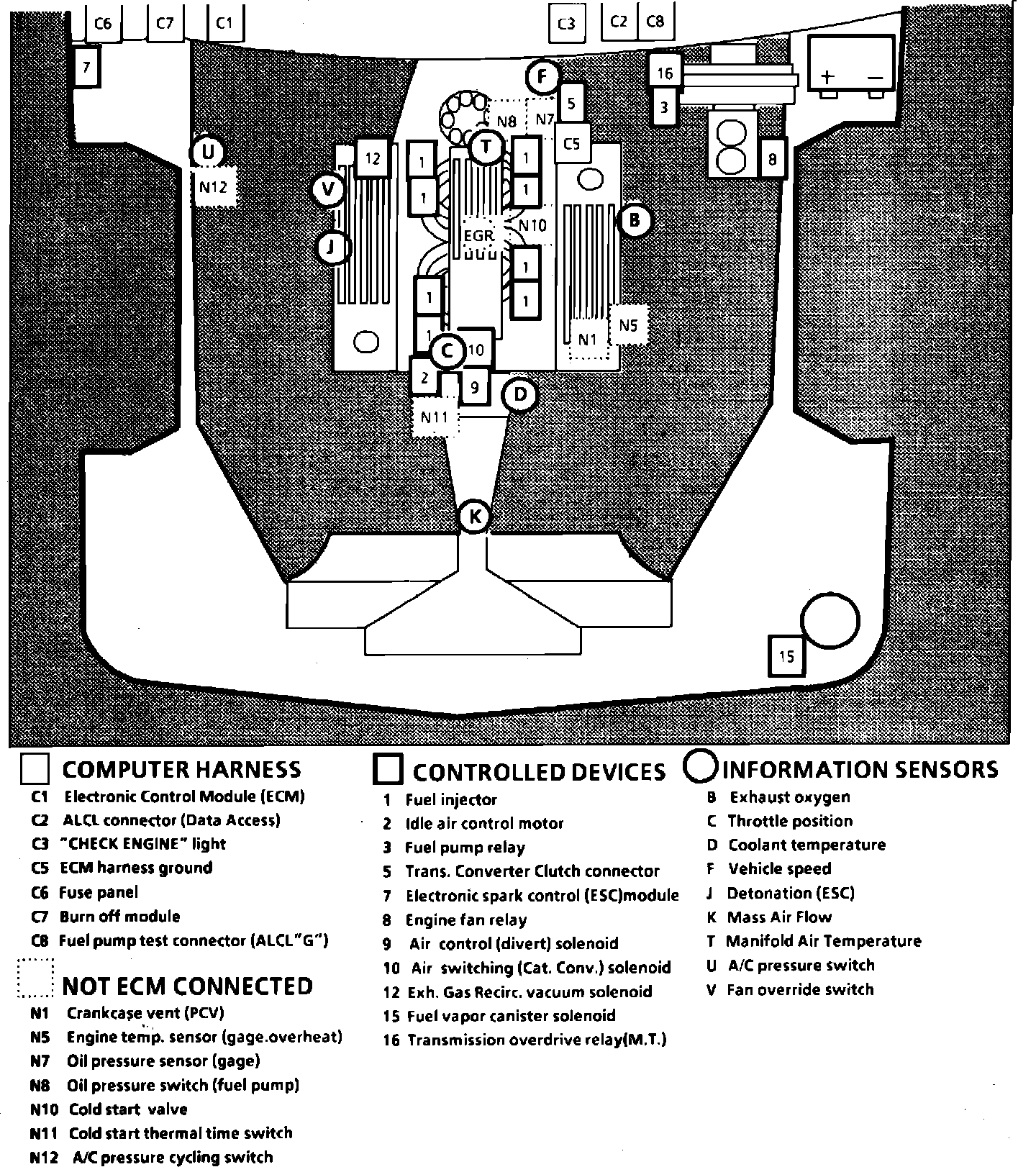

Fig. 31 Emission Component Location. 1985 Corvette W/V8-350/5.7L, PFI:
Front LH Side Of Engine
Applicable to: 1984
