Oxygen Sensor
LH Side Of Engine.:

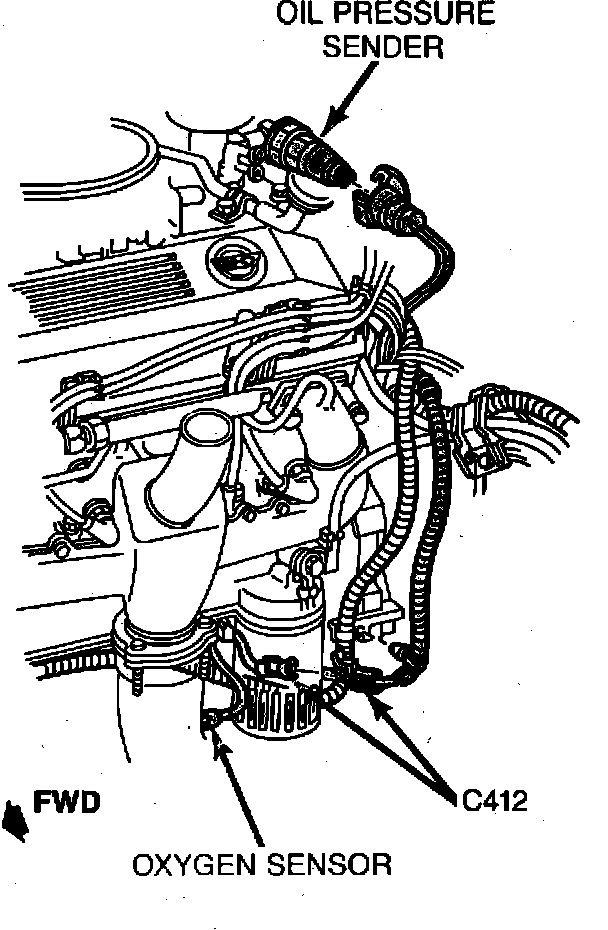

LH Side Of Engine.:
Front LH Side Of Engine.:
Top View Of Engine Compartment.:
LH Side Of Engine, In Exhaust Downpipe
Applicable to: 1984-85
