Power Trunk / Liftgate Lock Actuator
>>
Automatic Transmission
Automatic Transmission

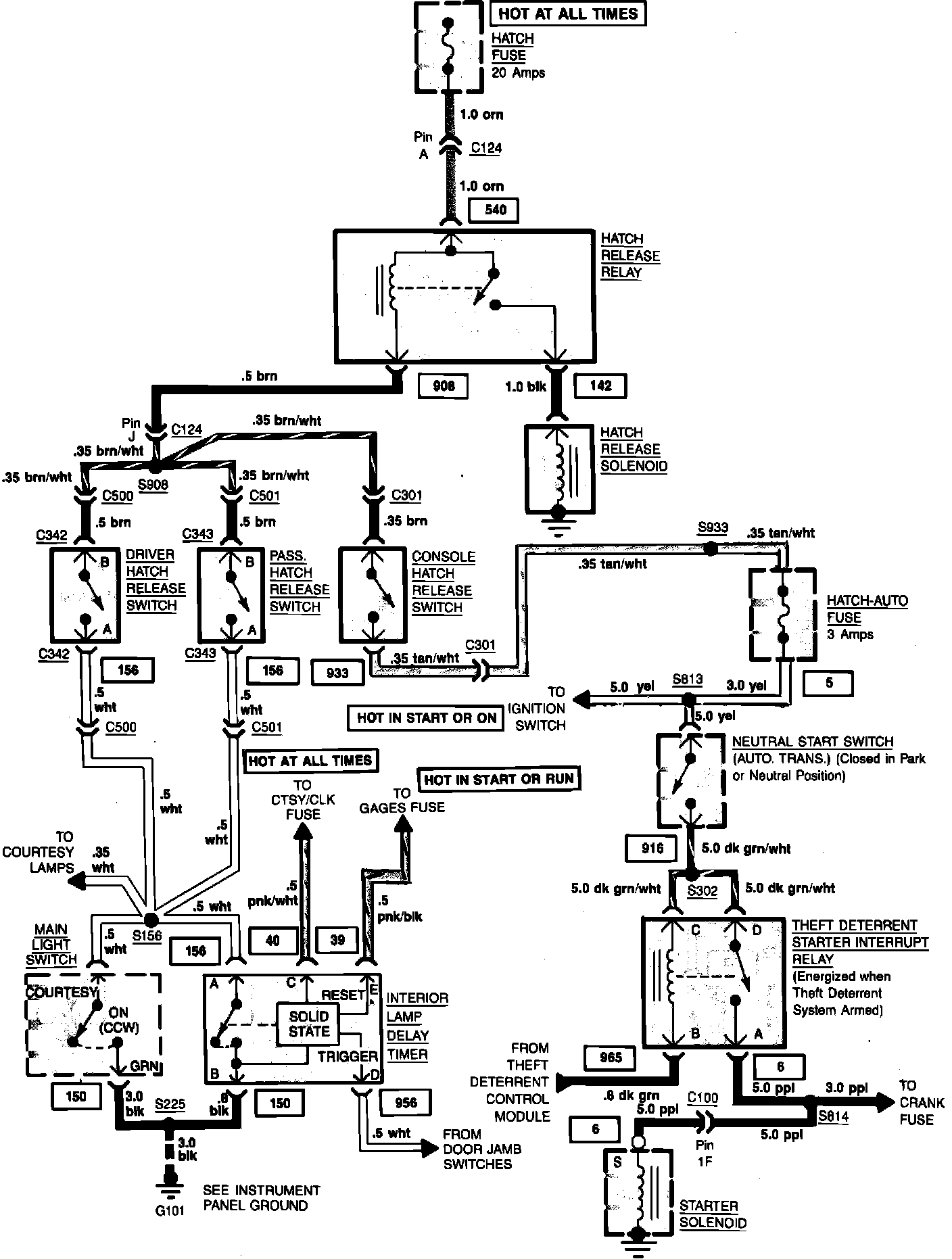

Hatch Release Wiring Circuit (Automatic Transmission):
