Power Trunk / Liftgate Lock Actuator
>>
Manual Transmission
Manual Transmission

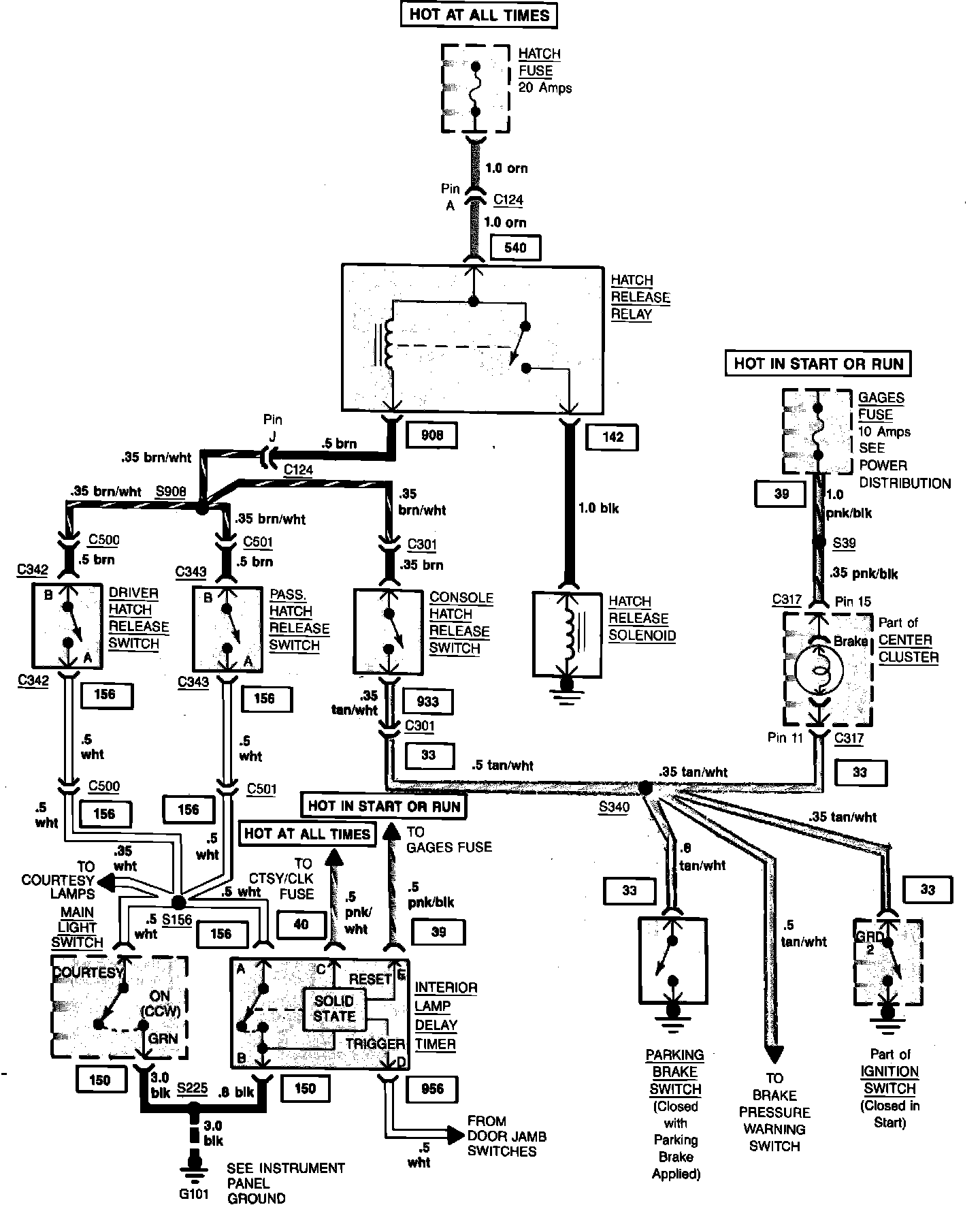

Hatch Release Wiring Circuit (Manual Transmission):
