Home
>>
Chevrolet
>>
1984
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>
Part 1 of 2
Part 1 of 2

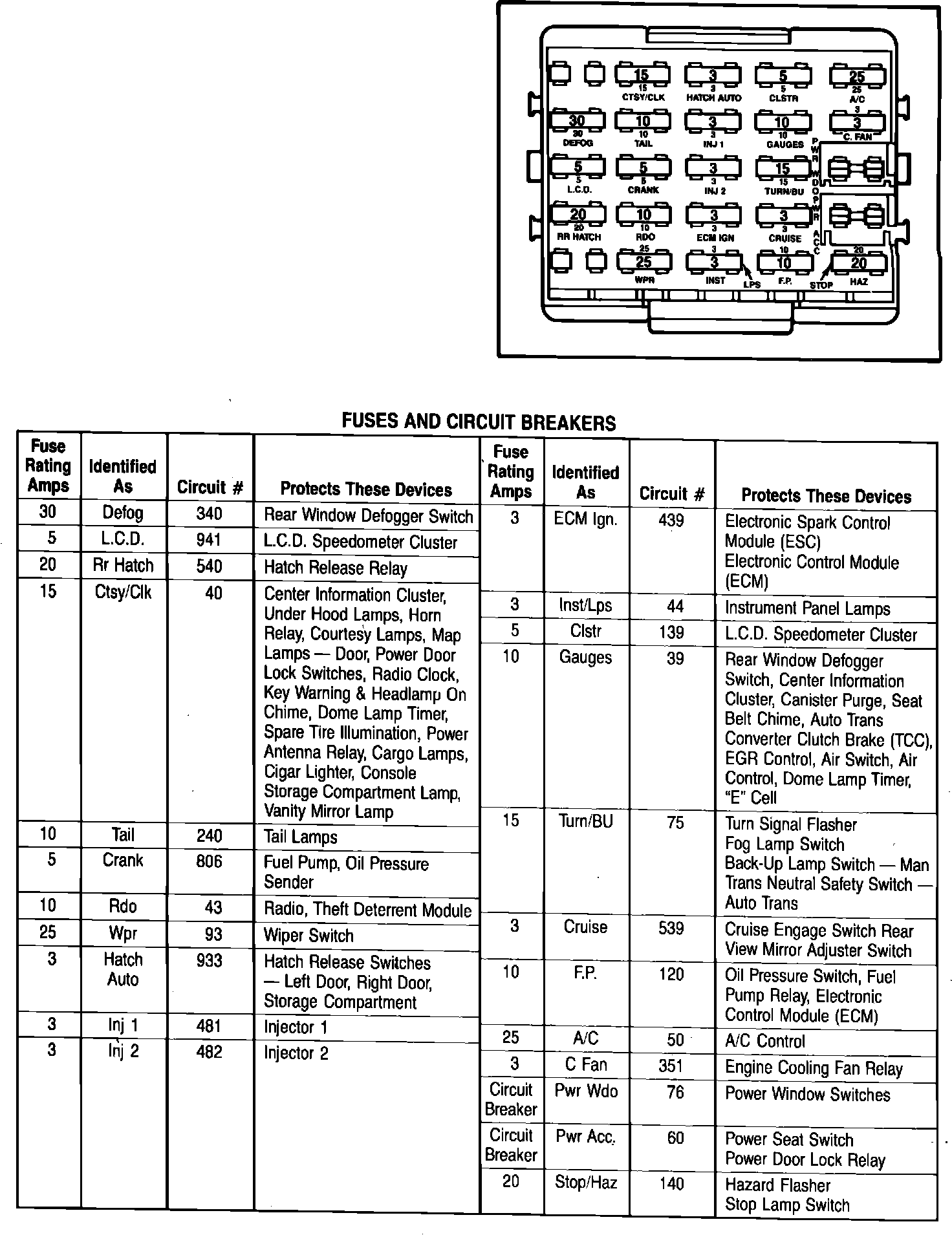

Fuse Panel:
