Main Lamp Switch Power Distribution
Main Lamp Switch Power Distribution

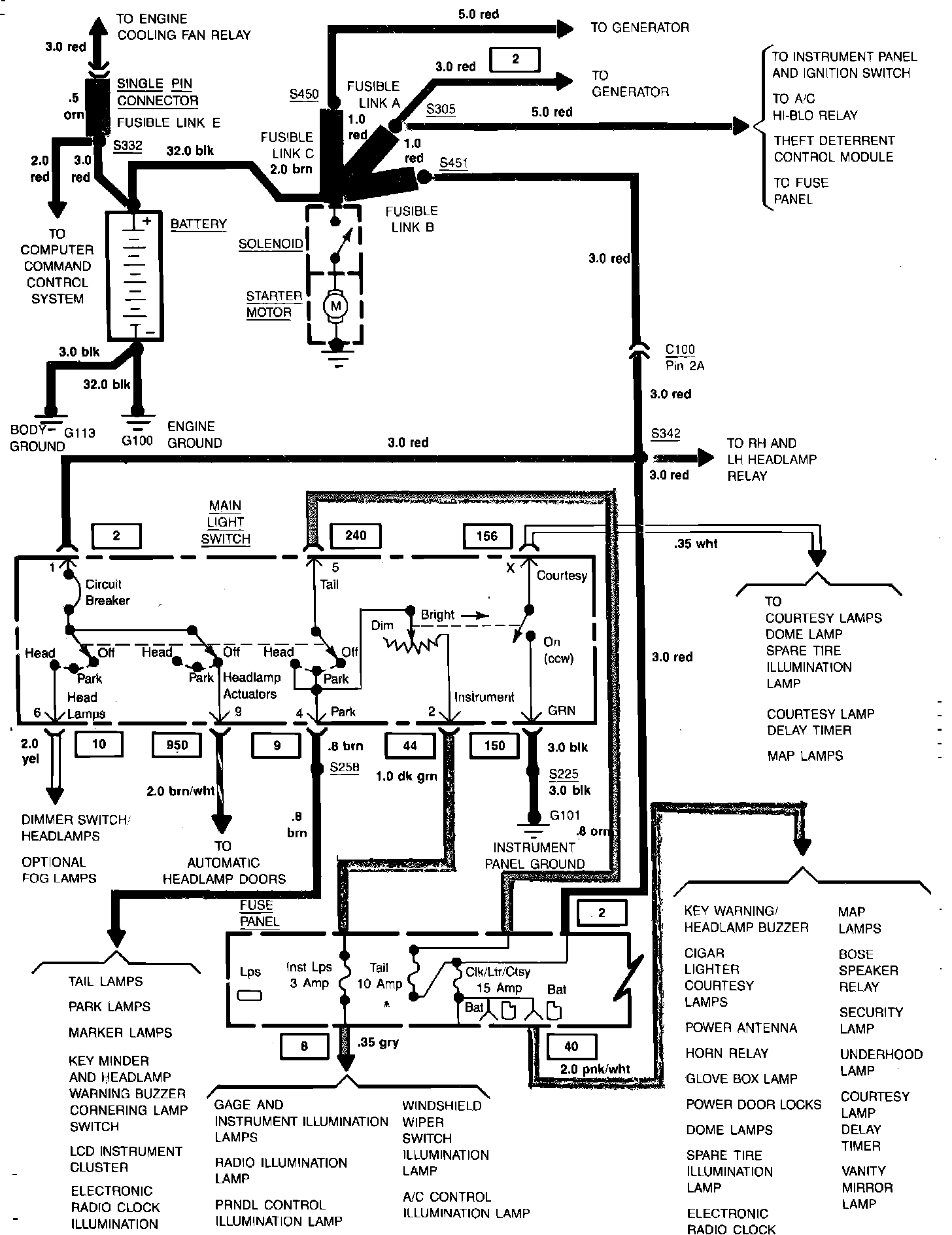

Main Lamp Switch Power Distribuiton Wiring Circuit:
