Headlamp: Service and Repair

Headlight Replacement

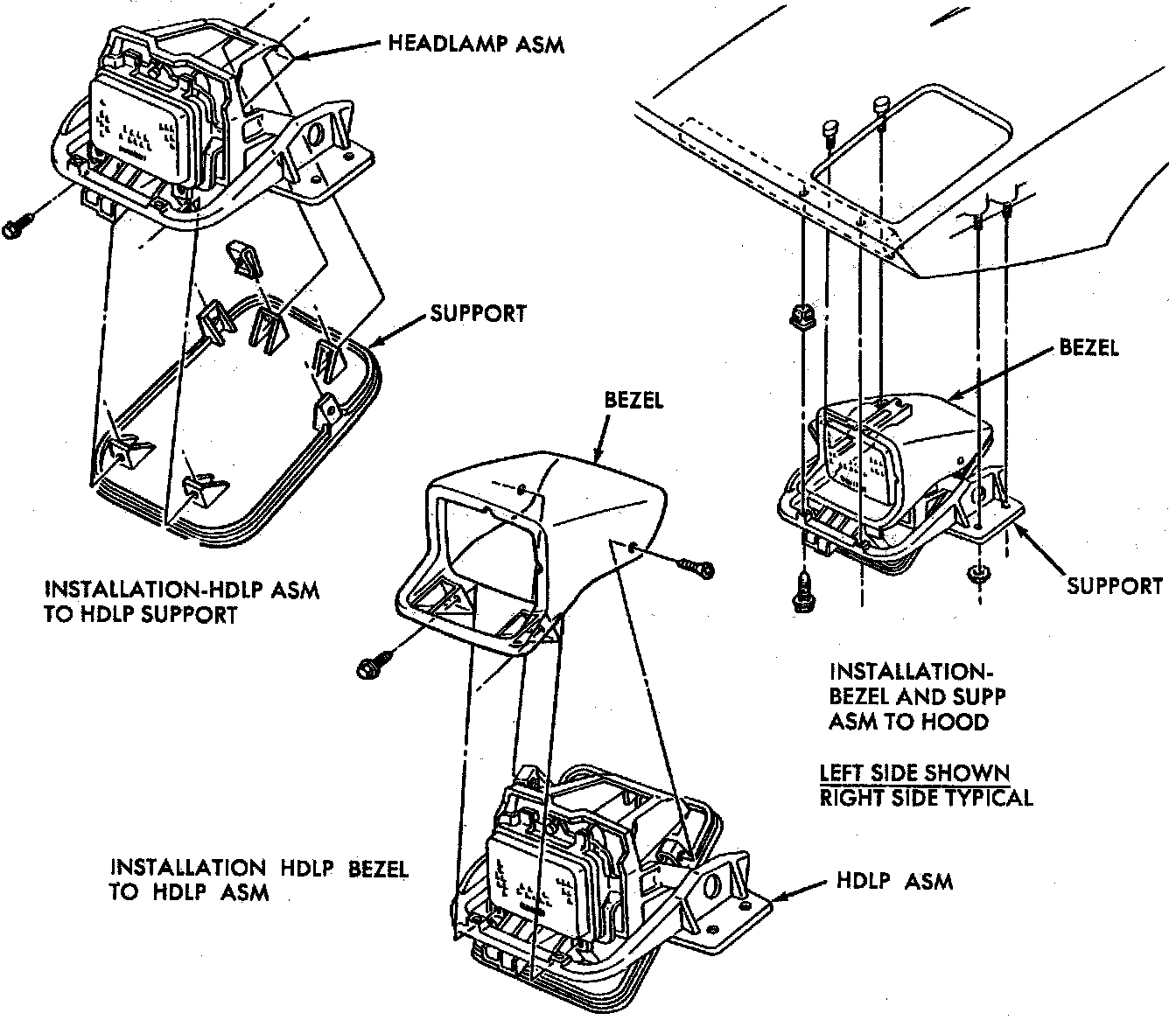

1. Remove the headlight bezel by removing the four (4) at taching screws.
2. With a hooked tool, such as a cotter pin remover, pull the retaining spring to one side to release the headlight.
3. Rotate the right headlight clockwise to release it from the aiming pins. Rotate the left headlight counterclockwise to release it.
4. Remove the electrical connector.
5. Remove the retaining ring.
6. Install the new sealed beam unit in the retaining ring and install it on the vehicle by reversing the previous procedure.
