Fuel Control & Idle Speed Control (ISC)
Fuel Control & Idle Speed Control (ISC)

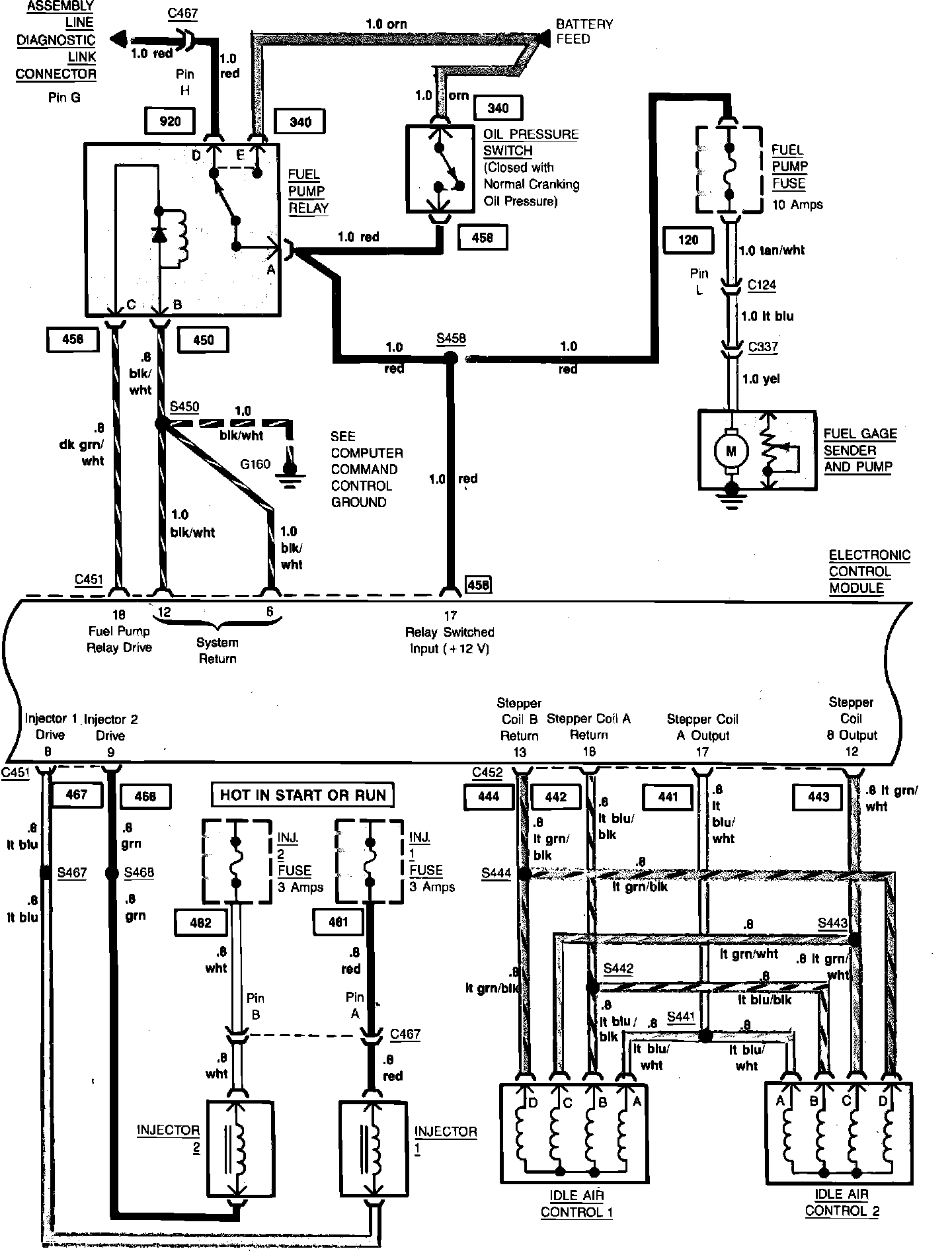

Computer Command Control Wiring Circuit (Fuel & Idle Control):
