Home >> Chevrolet >> 1984 >> Corvette V8-350 5.7L >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Electrical Diagrams >> Ignition Switch Level Diagrams

Ignition Switch Level Diagrams

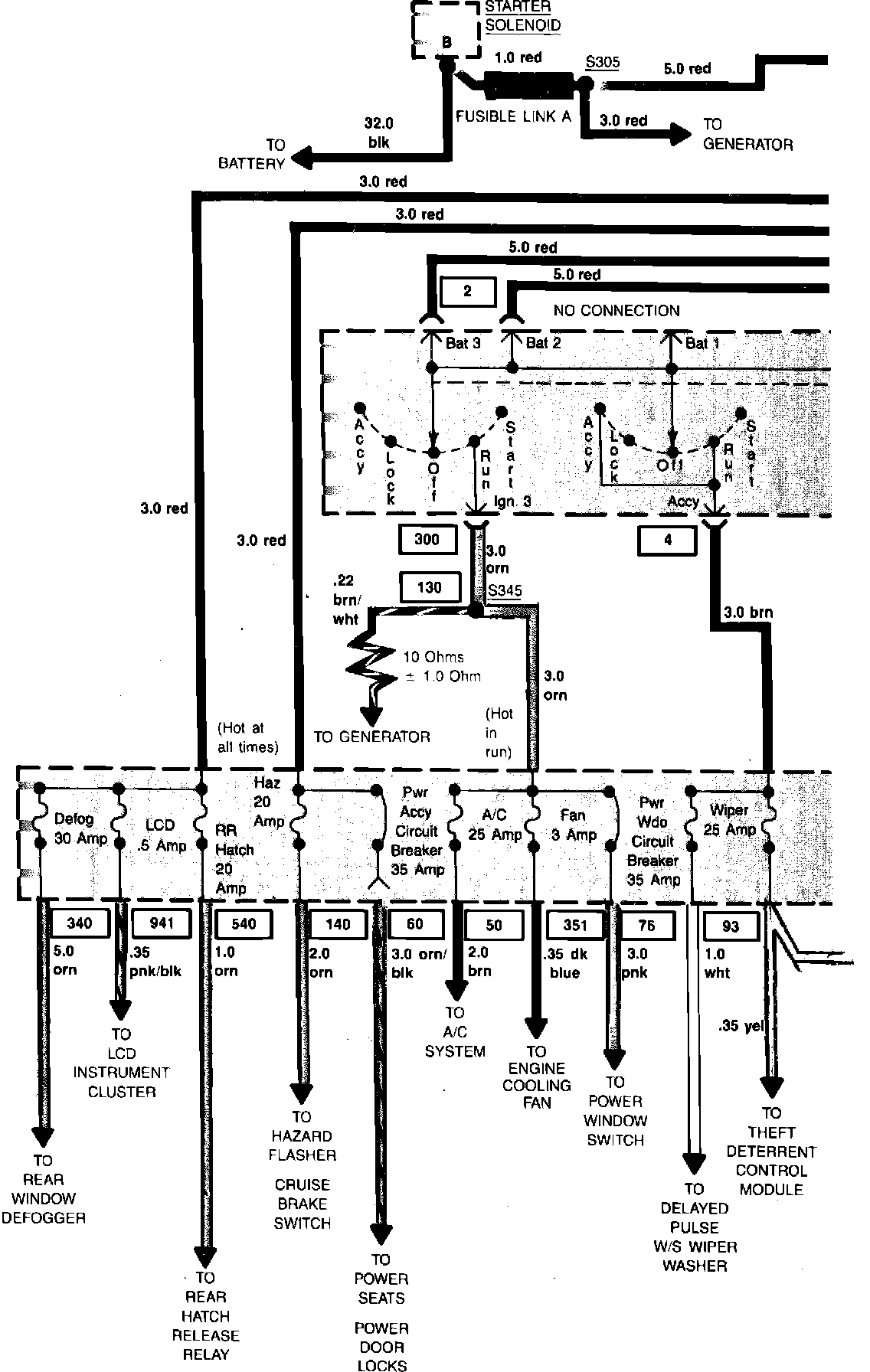

Ignition Switch Power Distribution Wiring Circuit:





Ignition Switch Power Distribution Wiring Circuit:
