Power Antenna & Radio (Stereo)

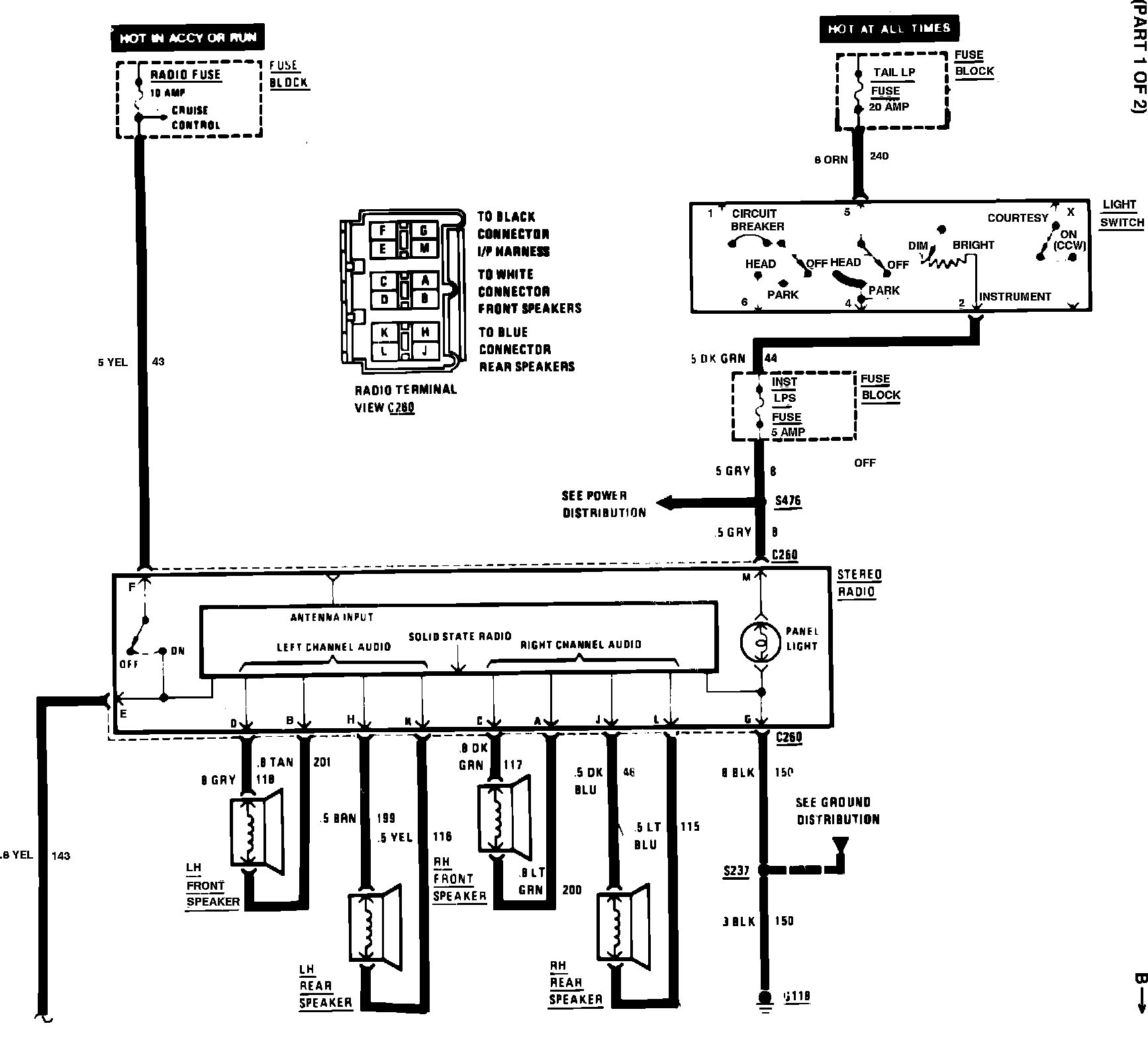

Fig. 377 Power Antenna & Radio (Stero) Wiring Circuit (Part 1 Of 2). 1984 Caballero, El Camino & Monte Carlo:

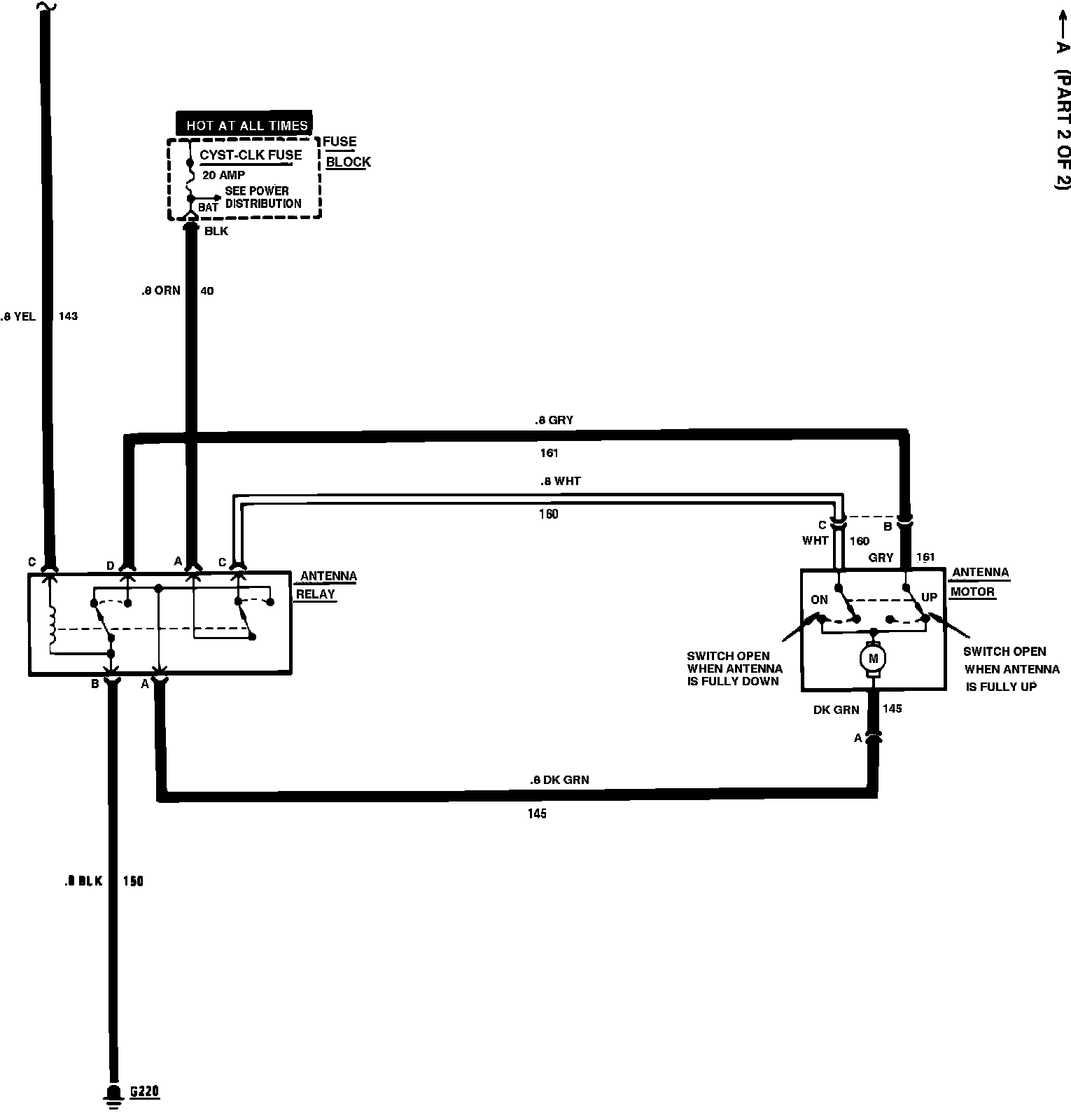

Fig. 377 Power Antenna & Radio (Stero) Wiring Circuit (Part 2 Of 2). 1984 Caballero, El Camino & Monte Carlo:
