Brake Warning Indicator
>>
Camaro Sport Coupe & Firebird
Camaro Sport Coupe & Firebird

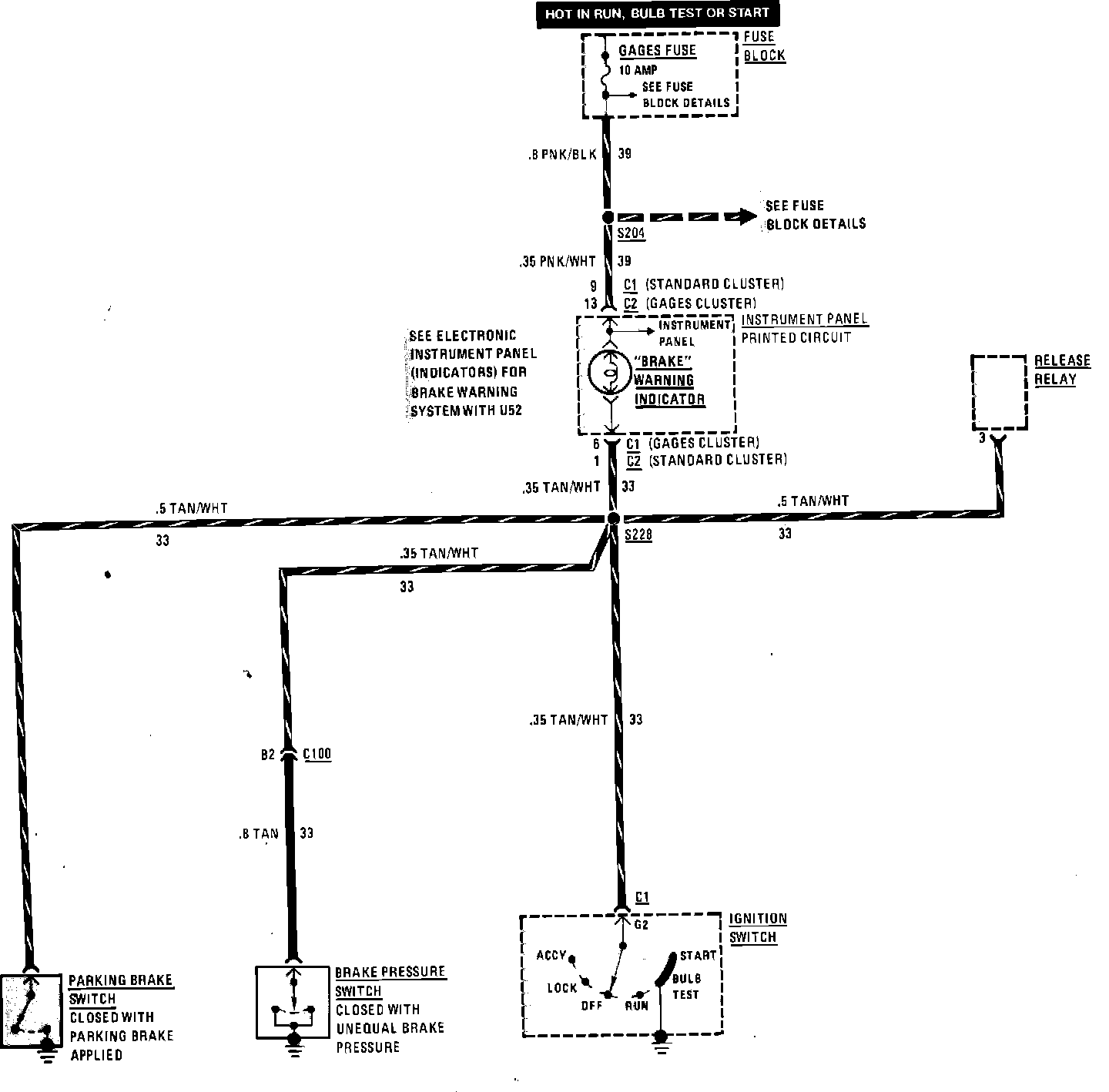

Brake Warning System Wiring Circuit:
