Tail Lamp

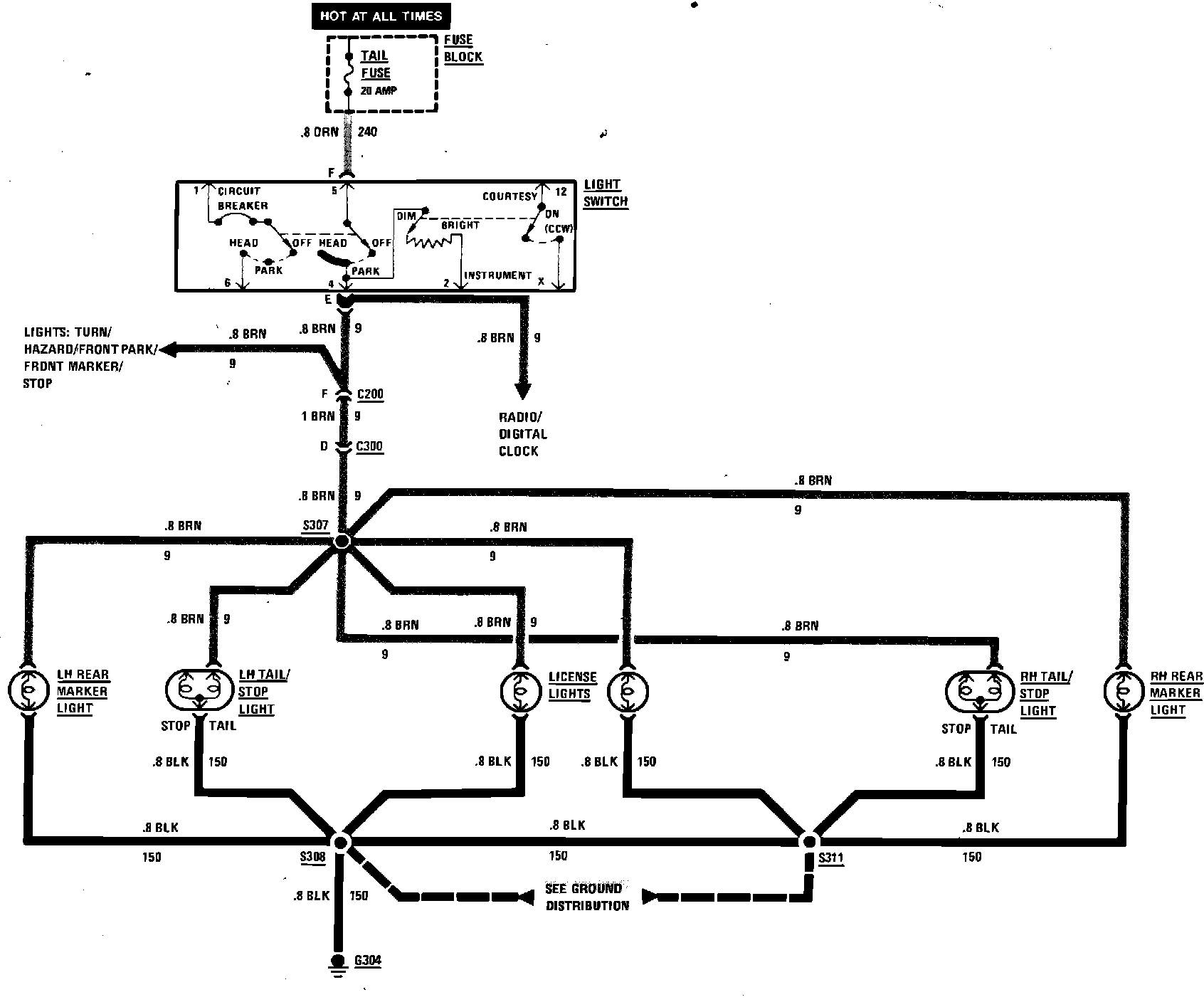

Rear License, Marker & Tail Lamp Wiring Circuit:

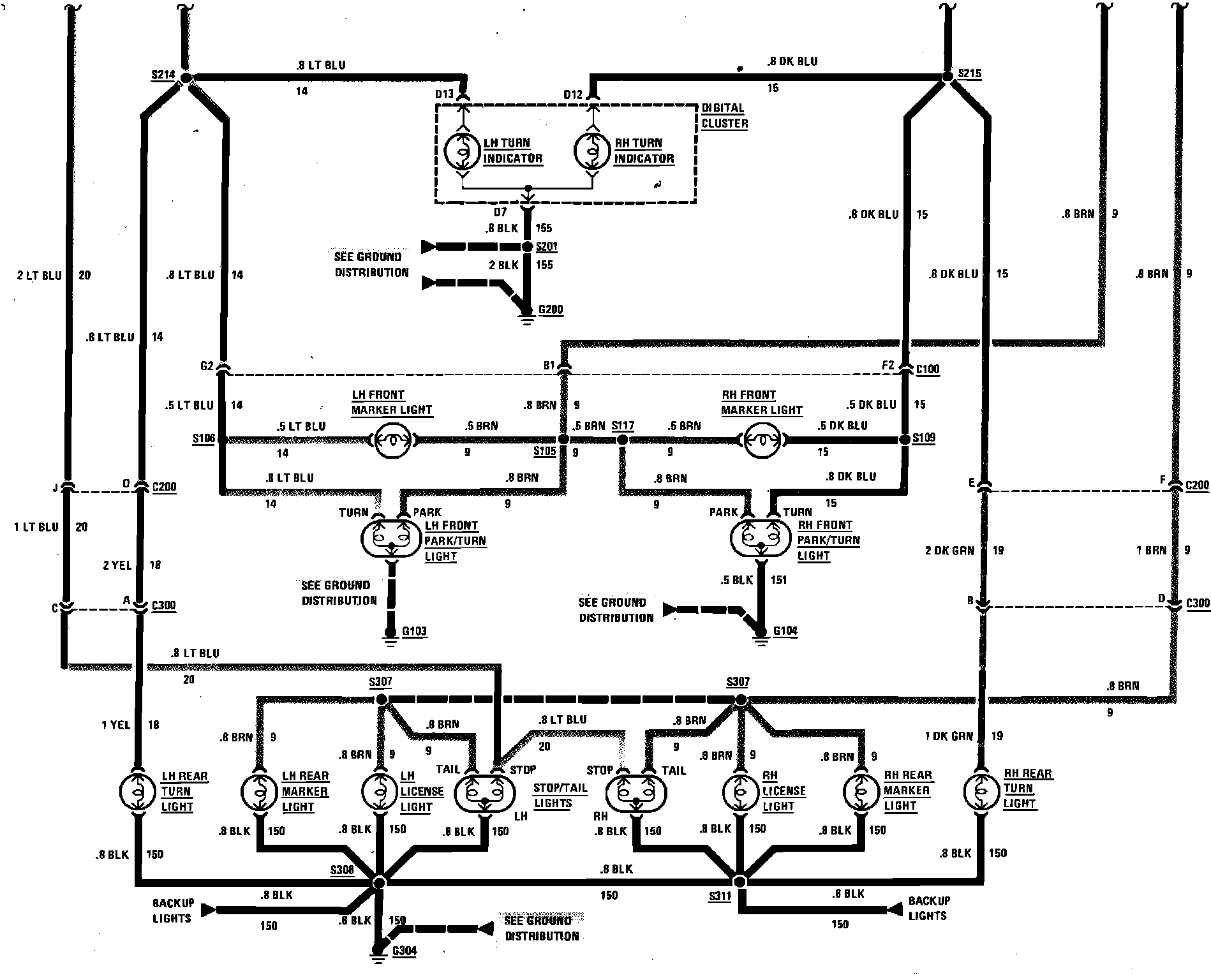

Hazard, License, Marker, Park, Stop, Tail & Turn Lamp Wiring Circuit:



Hazard, License, Marker, Park, Stop, Tail & Turn Lamp Wiring Circuit:
