Camaro Berlinetta (Part 1 of 2)

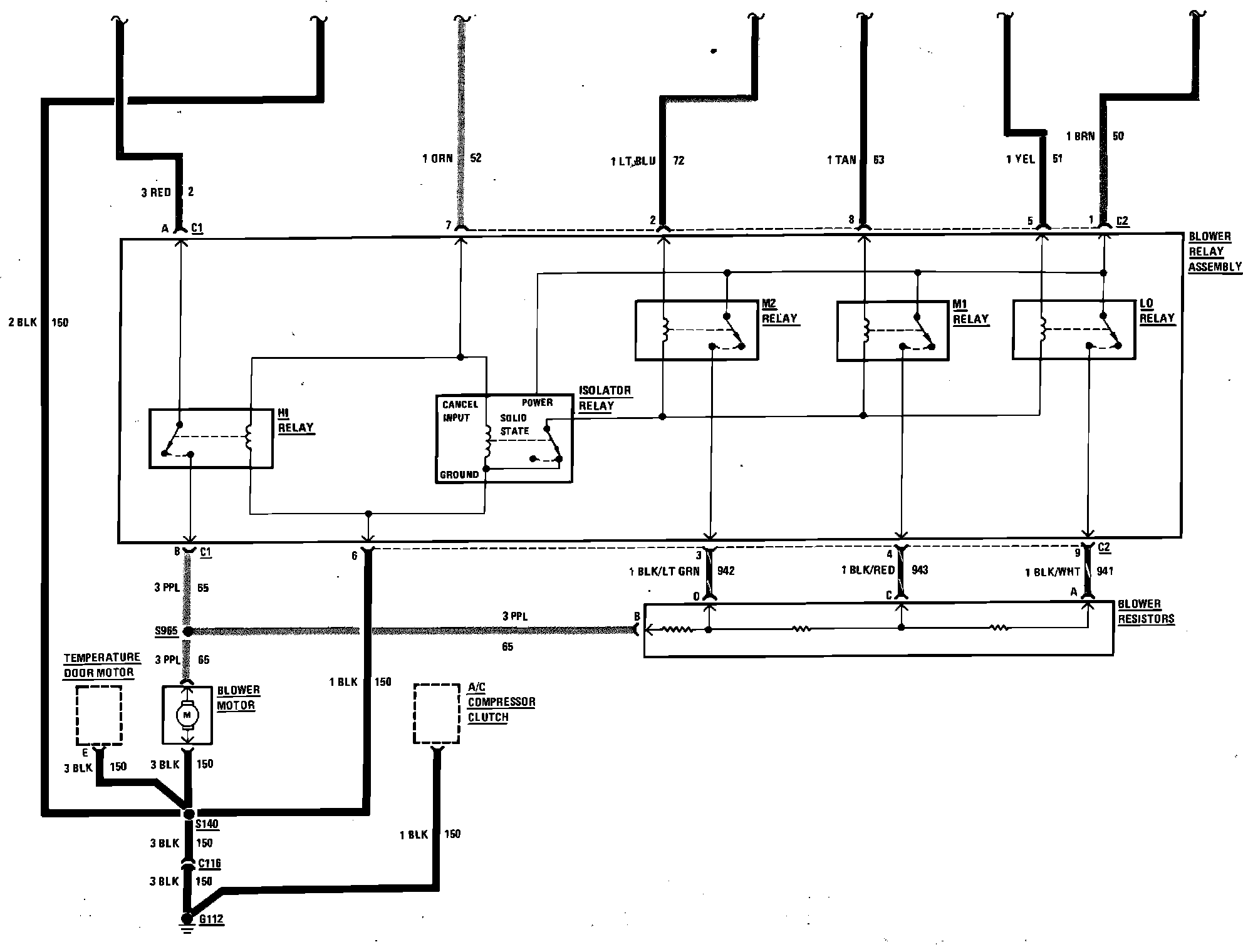

A/C Blower Control Wiring Circuit:

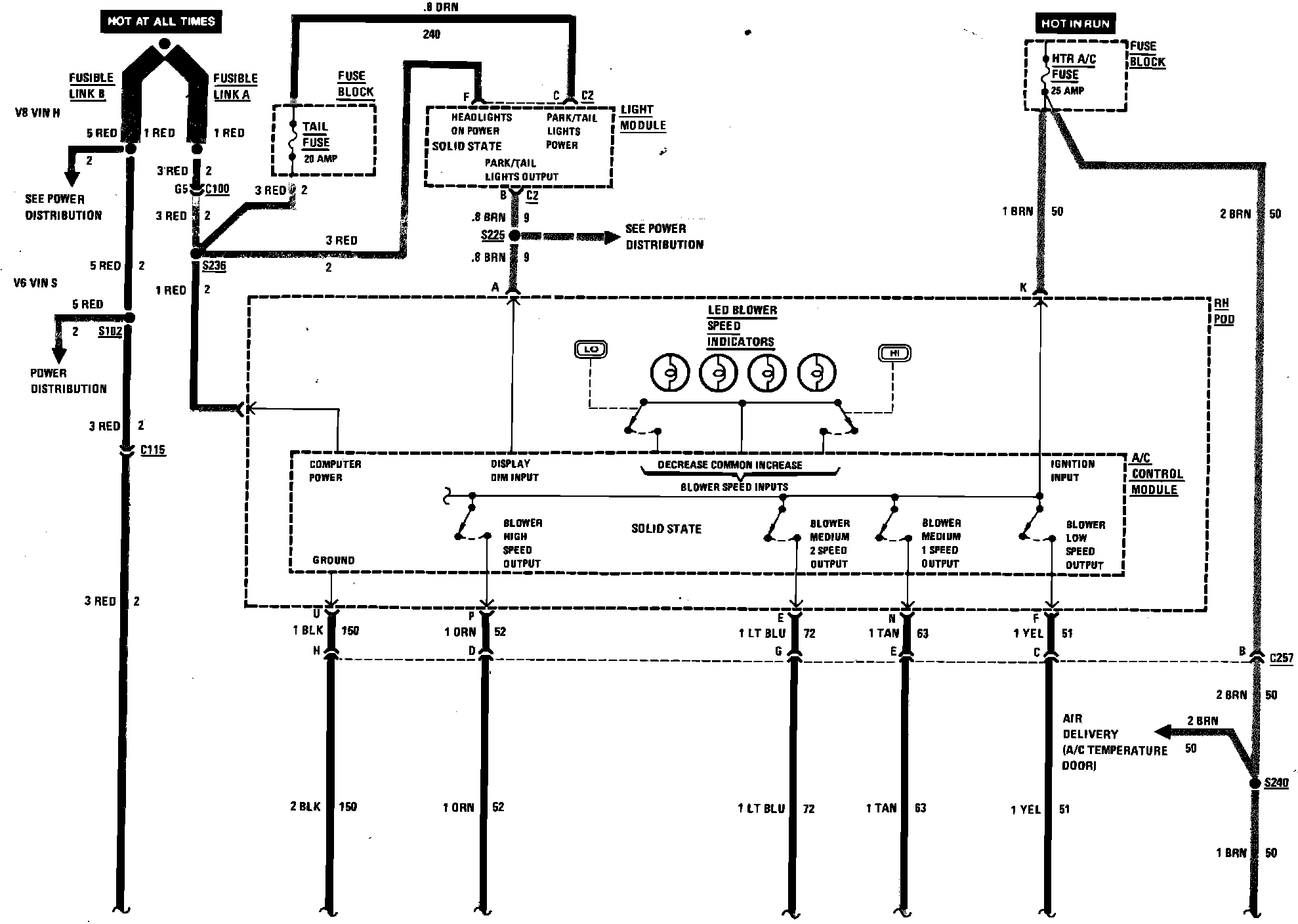

A/C Blower Control wiring Circuit:
