Firebird & Cam W/V8-305 (5.0L) & 350 (5.7L) W/A/T, (Vin G)
Firebird & Cam W/V8-305 (5.0L) & 350 (5.7L) W/A/T, (Vin G)

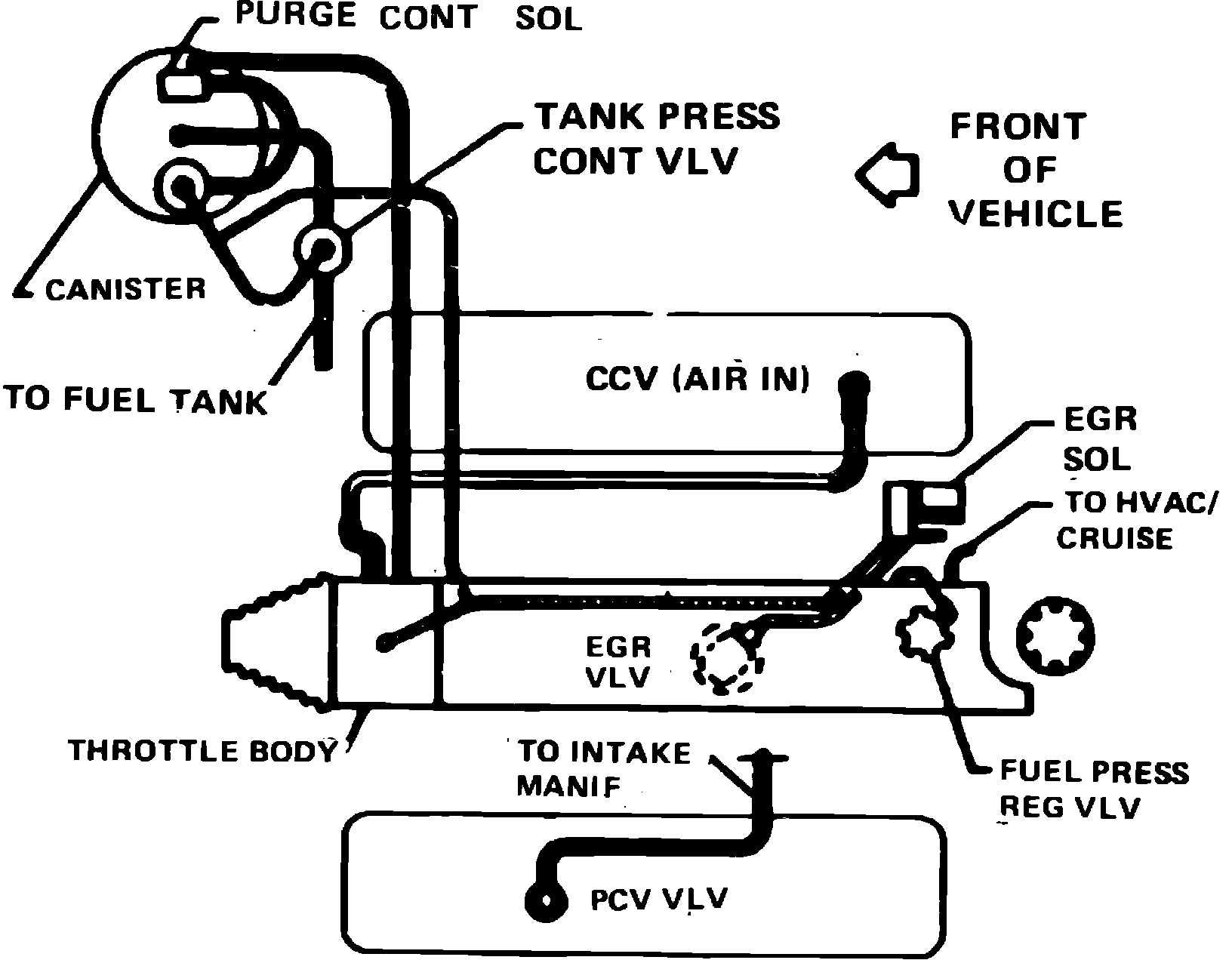

Fig. 30 Vacuum Hose Routing. 1985 Firebird & Camaro W/V8-305 (5.0L) & V8-350 (5.7L) With A/T, (VIN G):
