Camaro V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

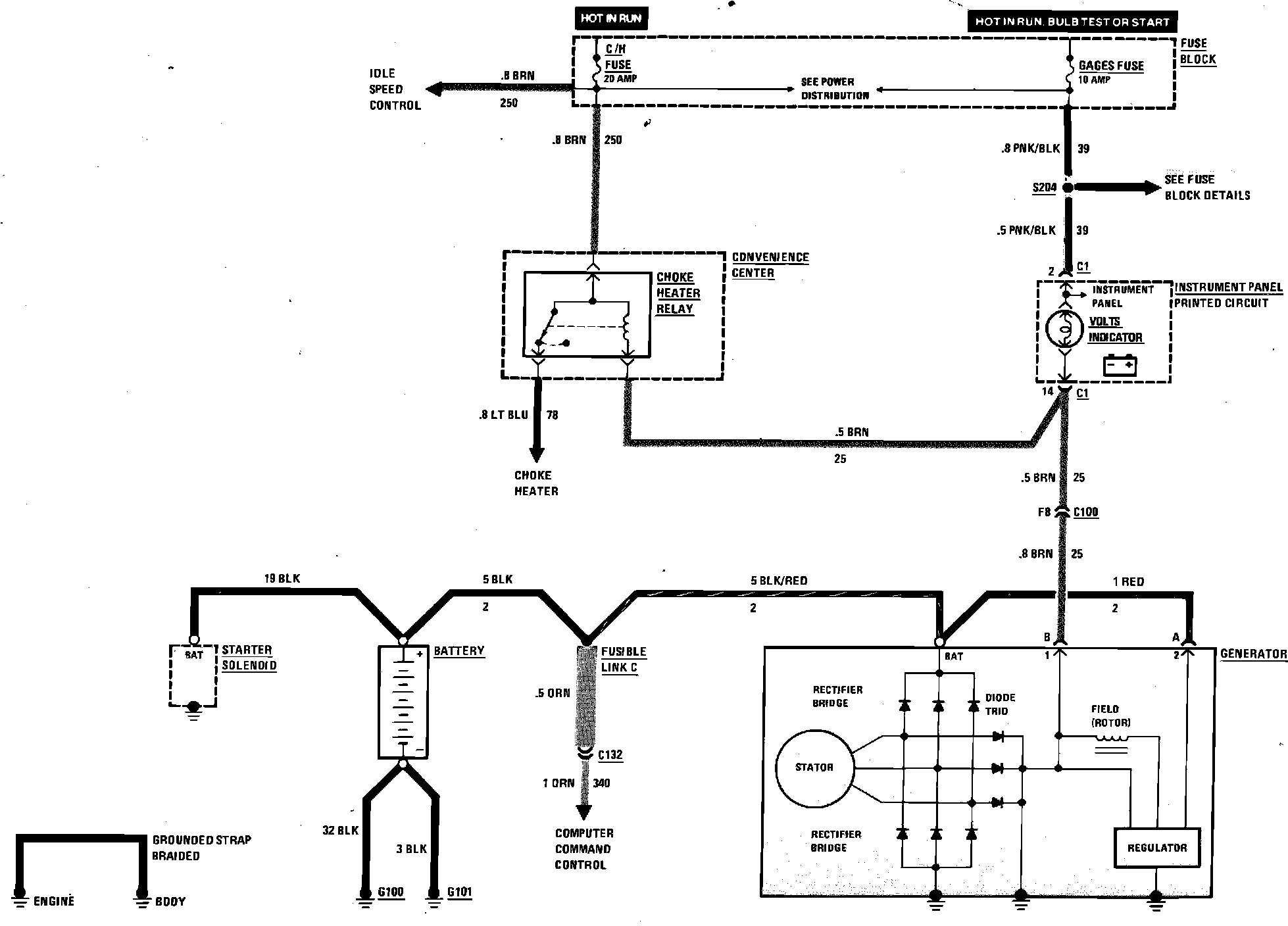

Charging System Wiring Circuit - VIN-G & H:
