Idle Speed & Compressor Controls
Idle Speed & Compressor Controls

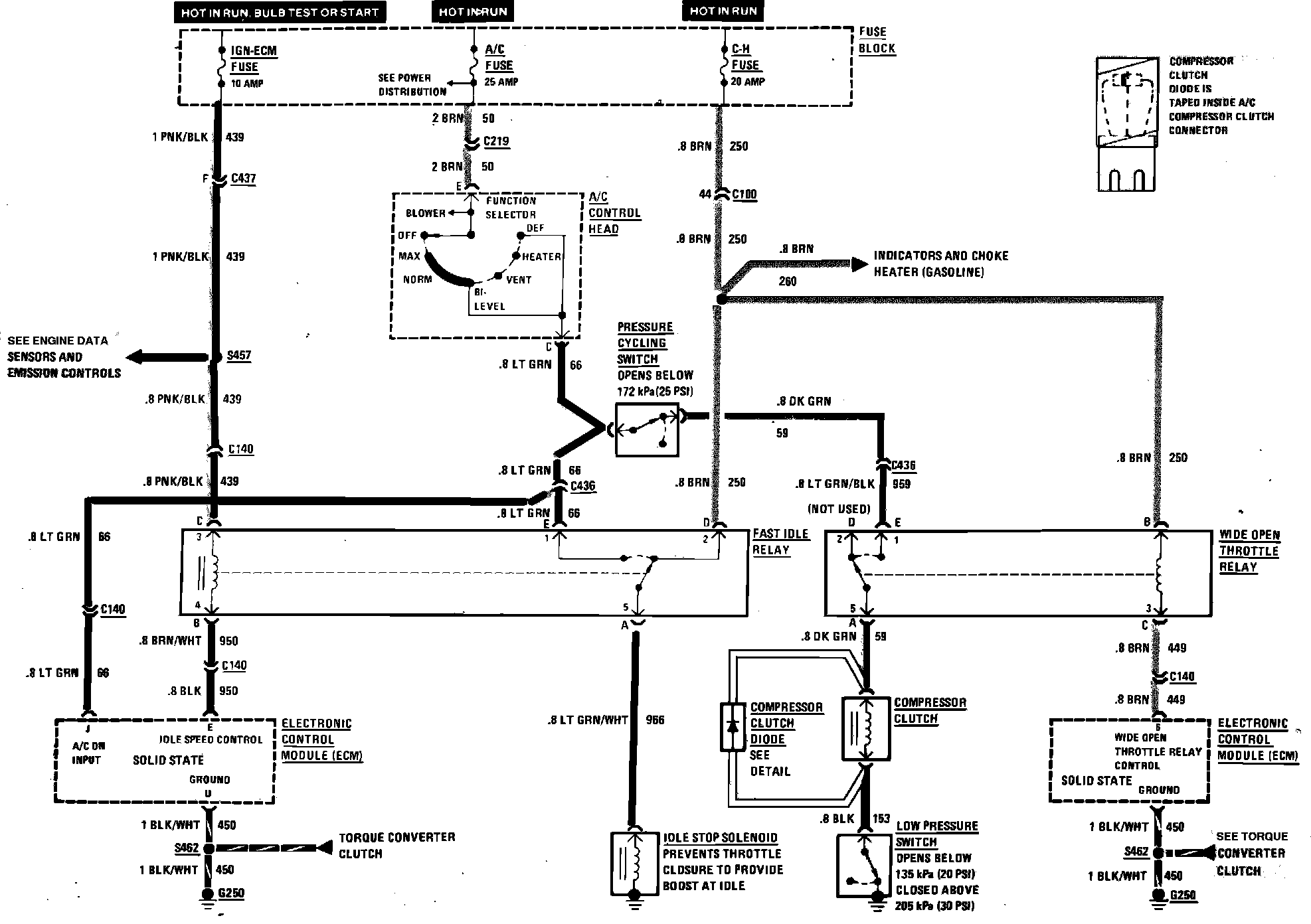

Computer Command Control (Idle Speed & Compressor Control) Wiring Circuit:
