Powertrain Management: Locations

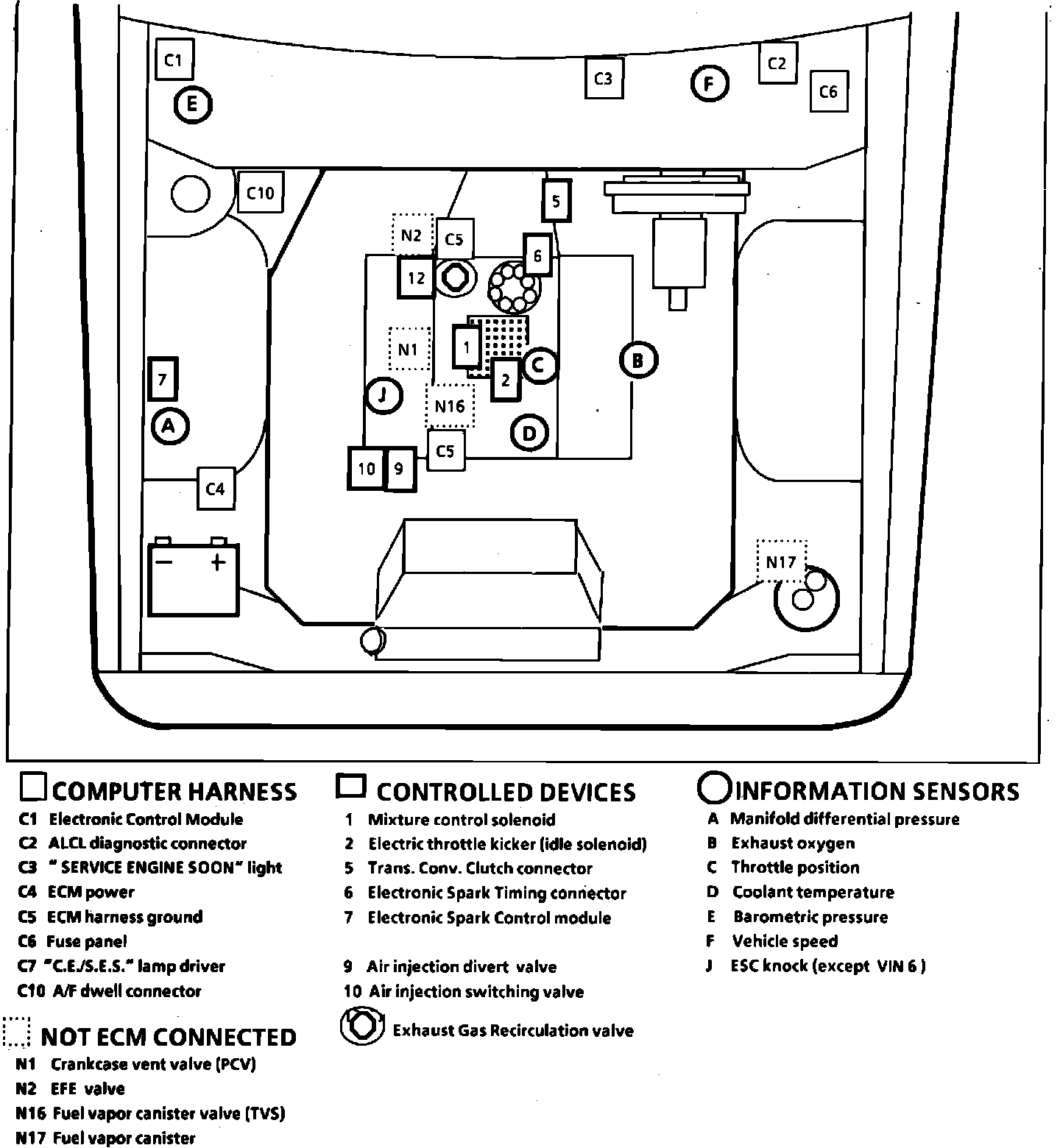

Fig. 29 Emission Component Location. 1985 Monte Carlo, Caprice & Impala W/V8-305/5.0L, 4 Bbl. 1985 Caprice Classic & Impala W/V8-350/5.7L 4 Bbl:
