System Specifications

Cylinder Head Sequence:





Engine Sequence:





Engine Sequence:

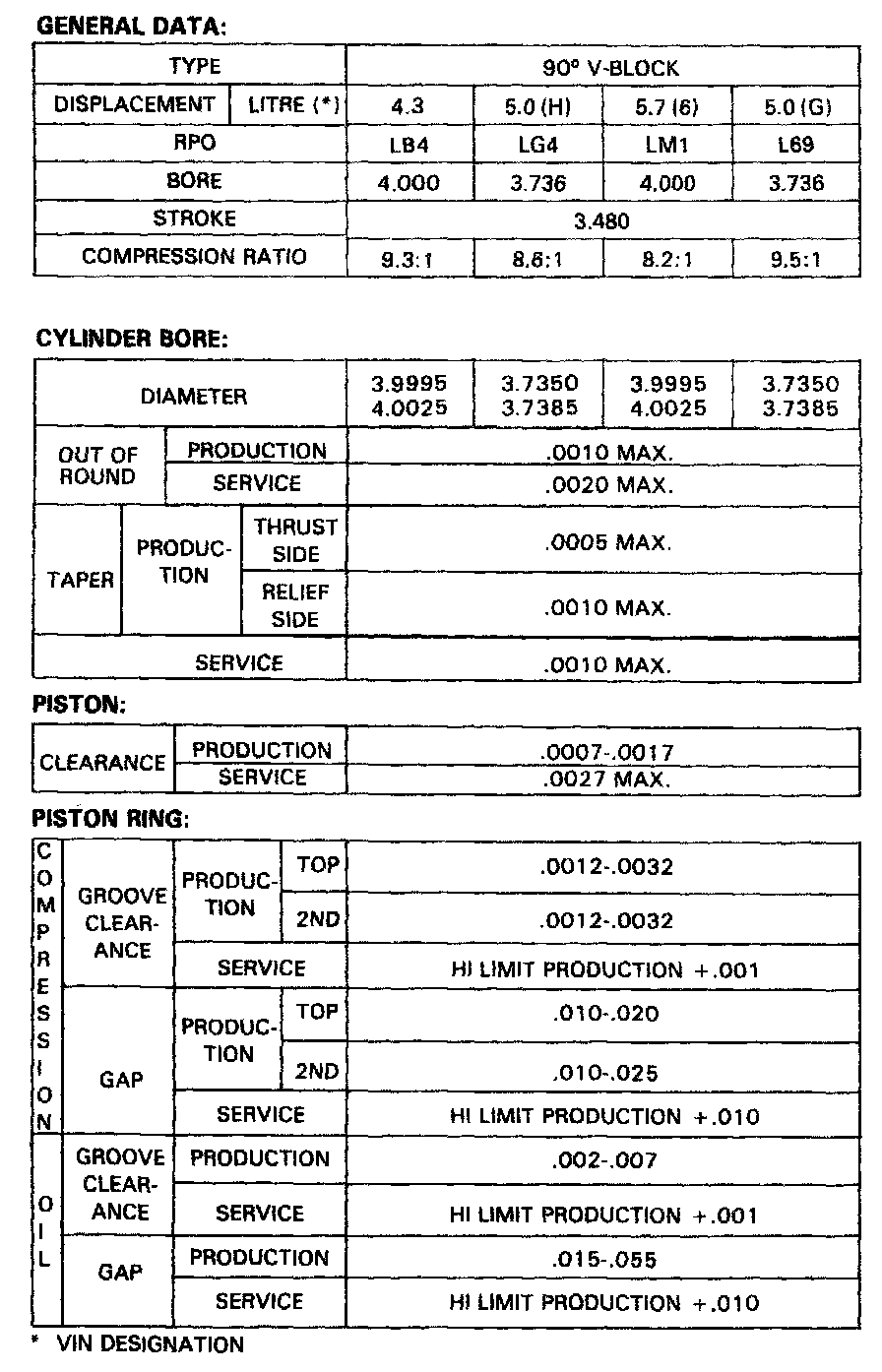

Continued Engine Specifications:





Continued Engine Specifications:





Torque Specifications:

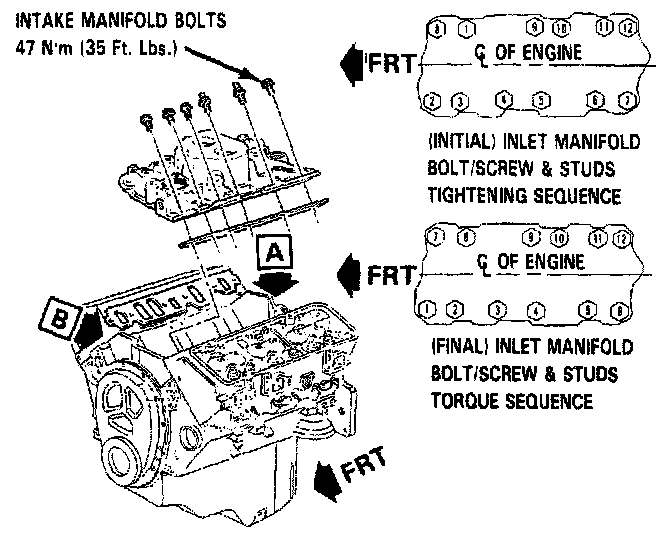

Intake Manifold Sequence V8:





Intake Manifold Sequence V6:
