Design and Clearance Specifications
Design and Clearance Specifications
200 C AUTOMATIC TRANSMISSION

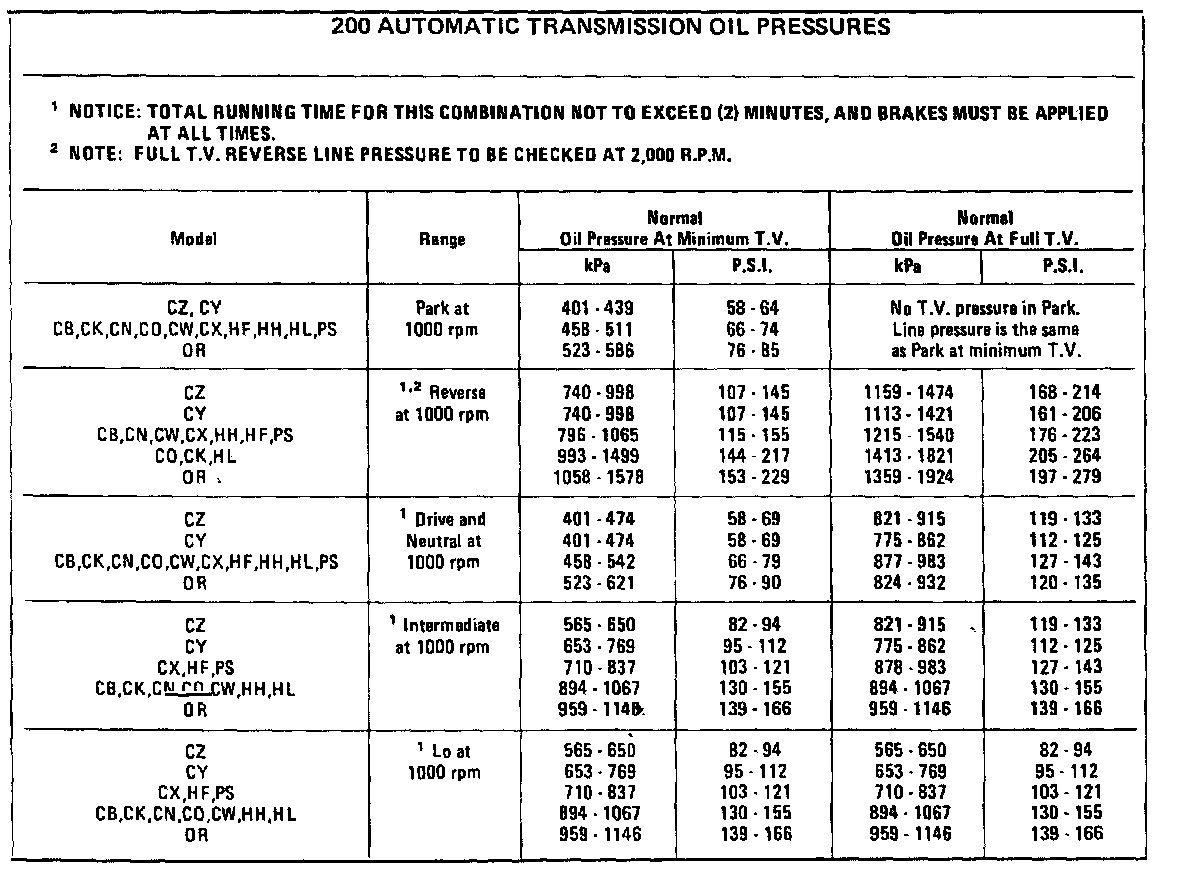

Automatic Transmission Oil Pressures:

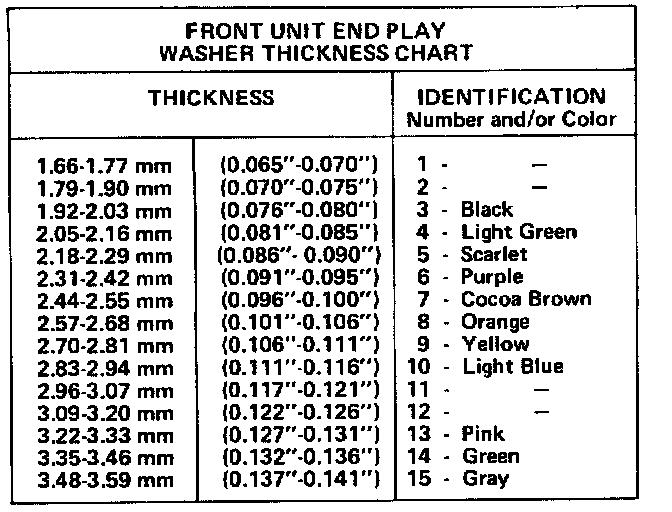

Front Unit End Play Washer Chart:

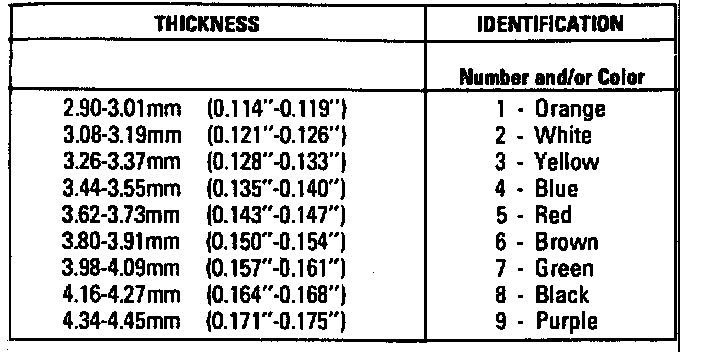

Rear Unit End Play Washer Chart:
