Home >> Chevrolet >> 1985 >> Celebrity L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram

System Diagram

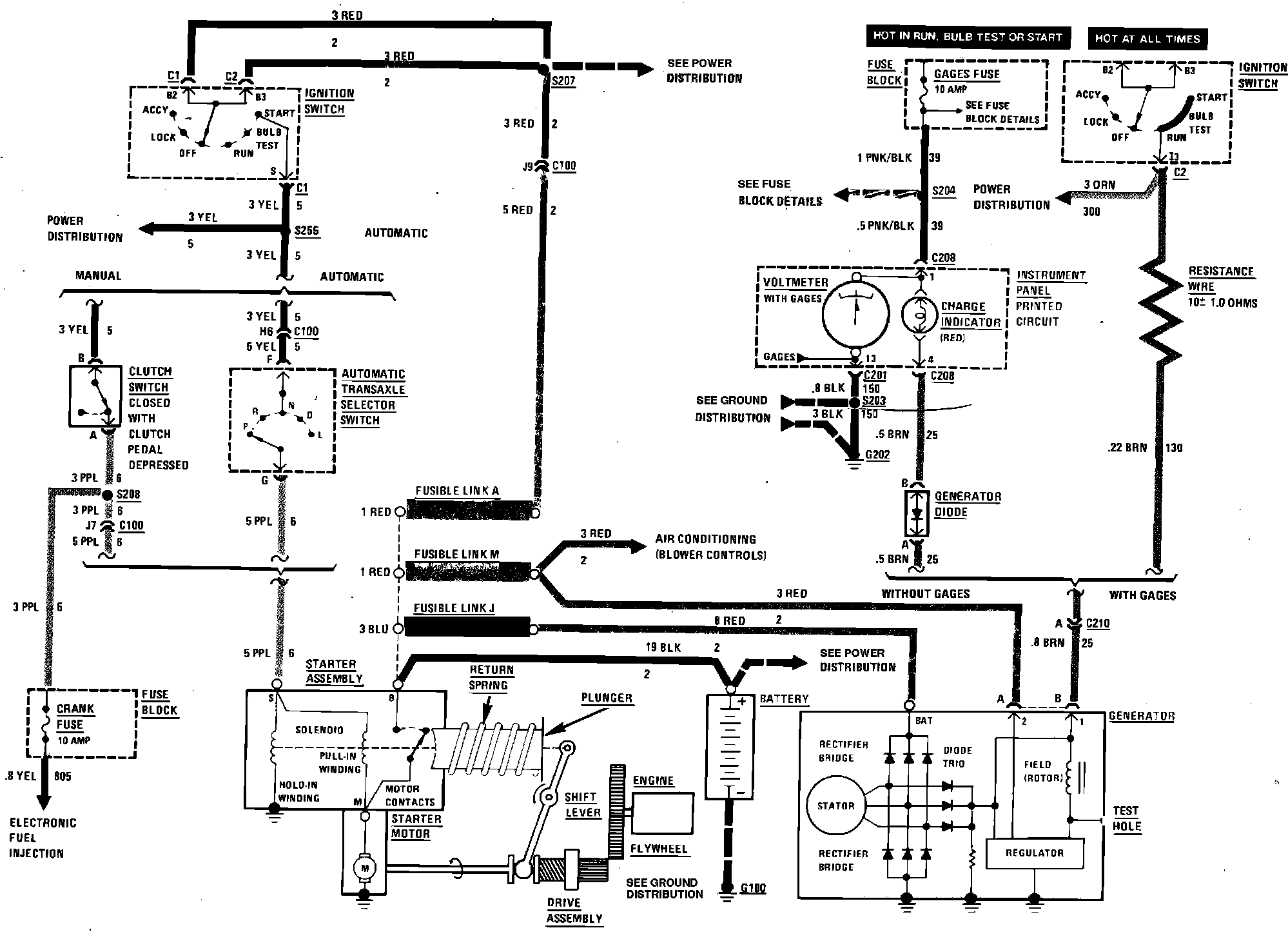

Fig. 40 Charging System & Starter Wiring Circuit:
