Check Engine/Service Engine Indicator & Ignition

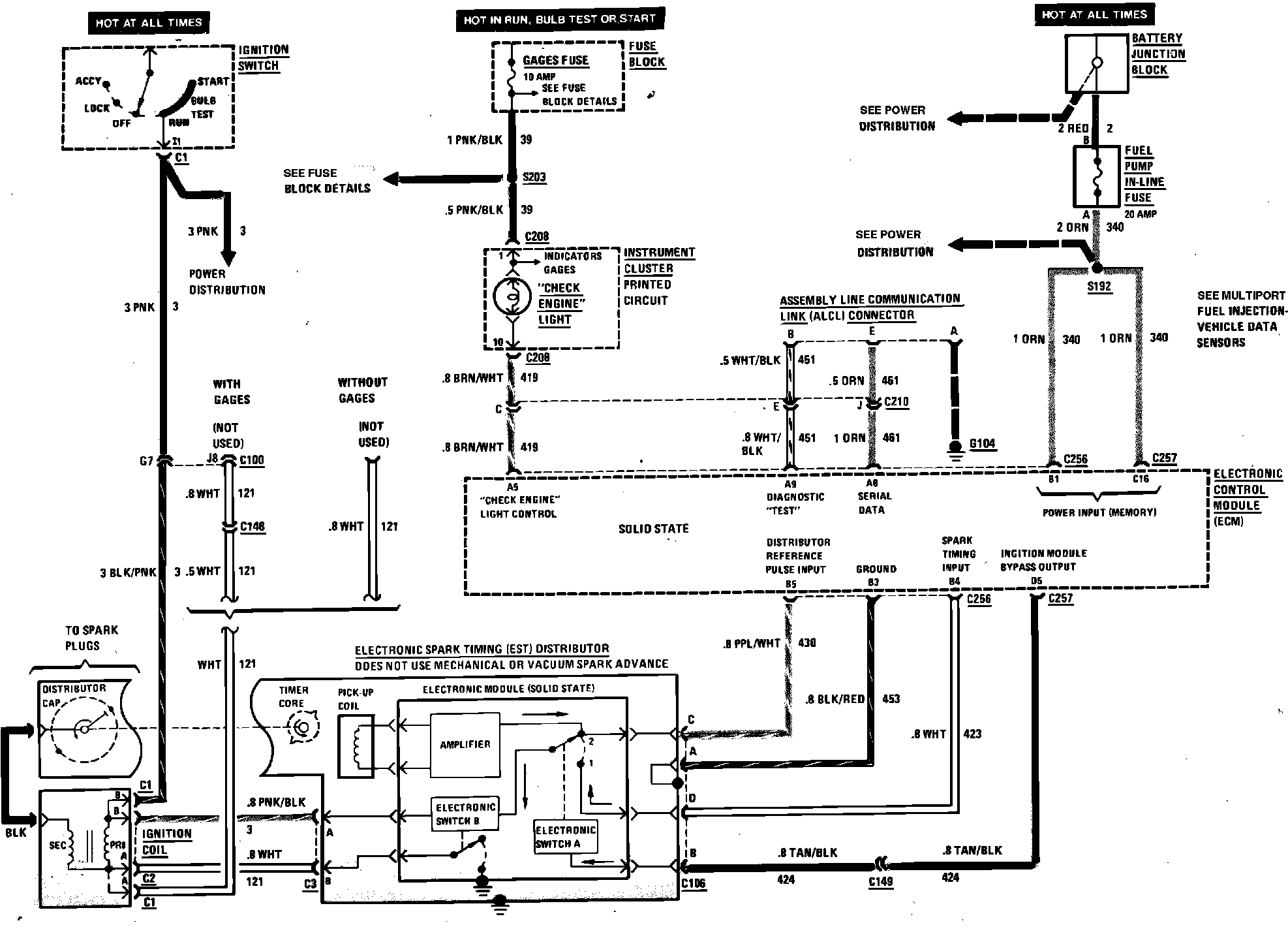

Fig. 190 Multiport Fuel Injection (Check Engine Light & Ignition) Wiring Circuit:
