Home
>>
Chevrolet
>>
1985
>>
Celebrity V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
With Carb
With Carb

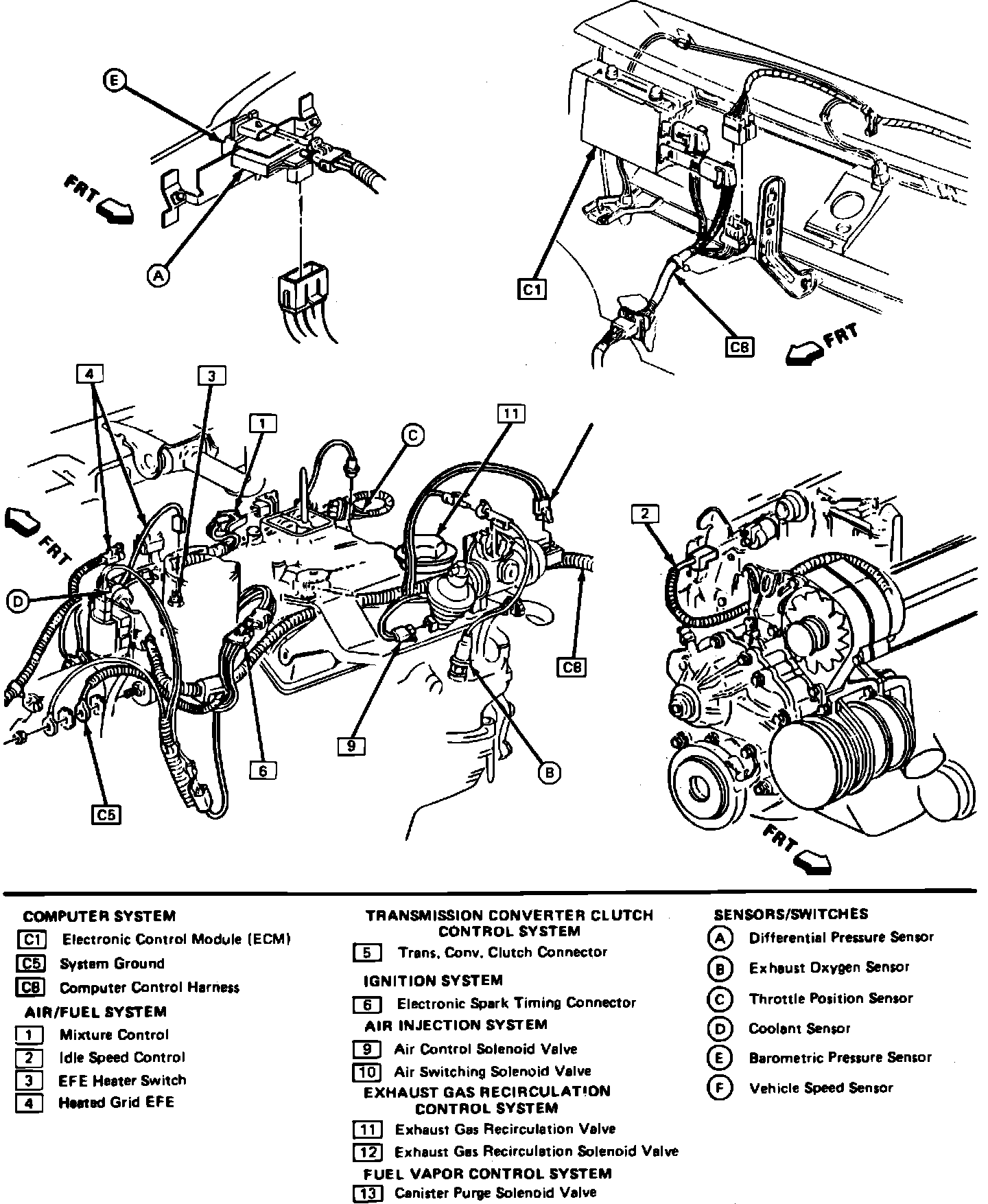

Fig. 22a Emission Component Location. 1985 Celebrity W/V6-173/2.8L, 2 Bbl. (Part 1 of 2):
Fig. 22b Emission Component Location. 1985 Celebrity W/V6-173/2.8L, 2 Bbl. (Part 2 of 2):
