Fuel Control & Fuel Injectors

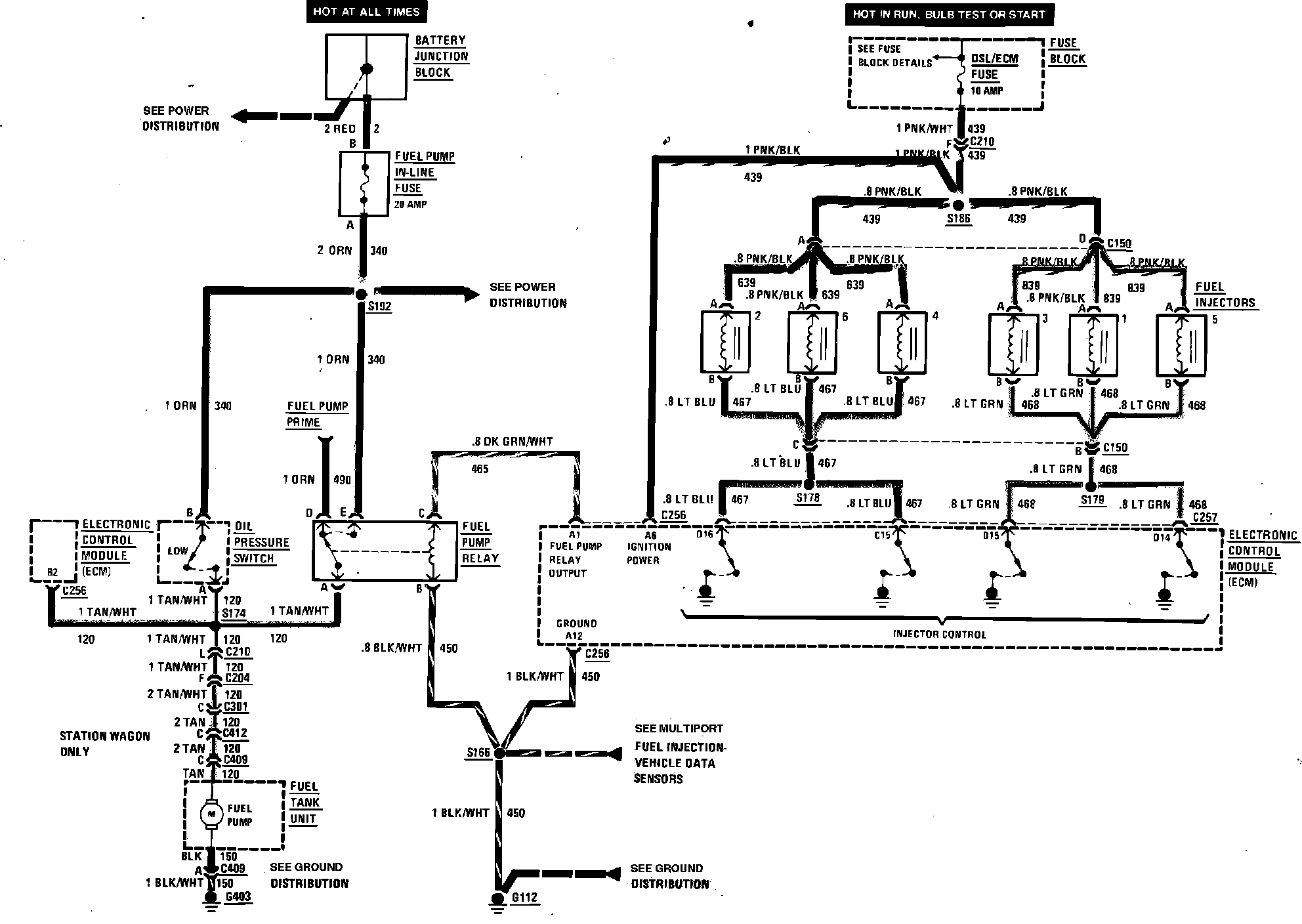

Fig. 192 Multiport Fuel Injection (Fuel Control & Fuel Injectors) Wiring Circuit:
