Vehicle Speed Sensors & Torque Converter Clutch

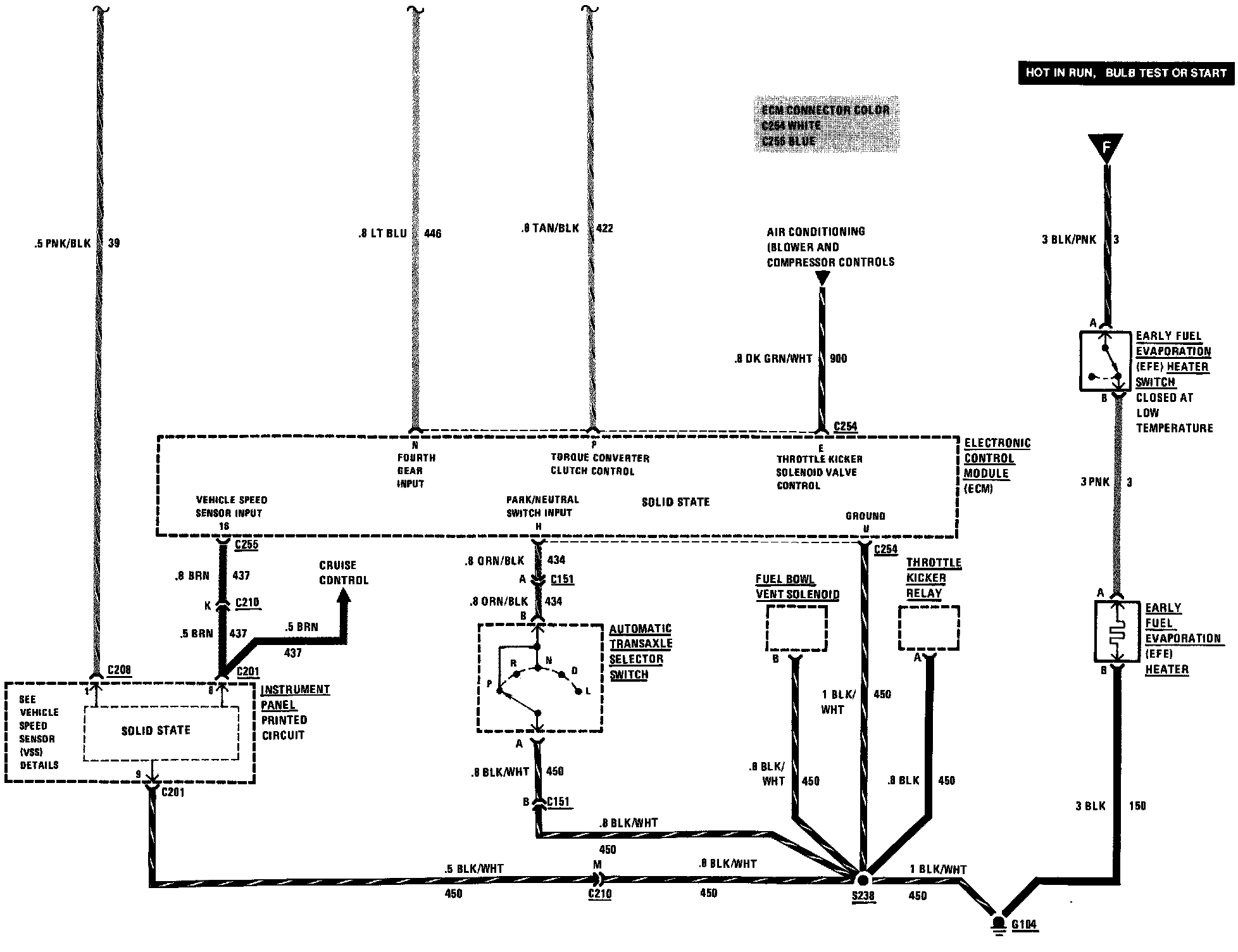

Vehicle Speed Sensors And Torque Converter Clutch (part 1):

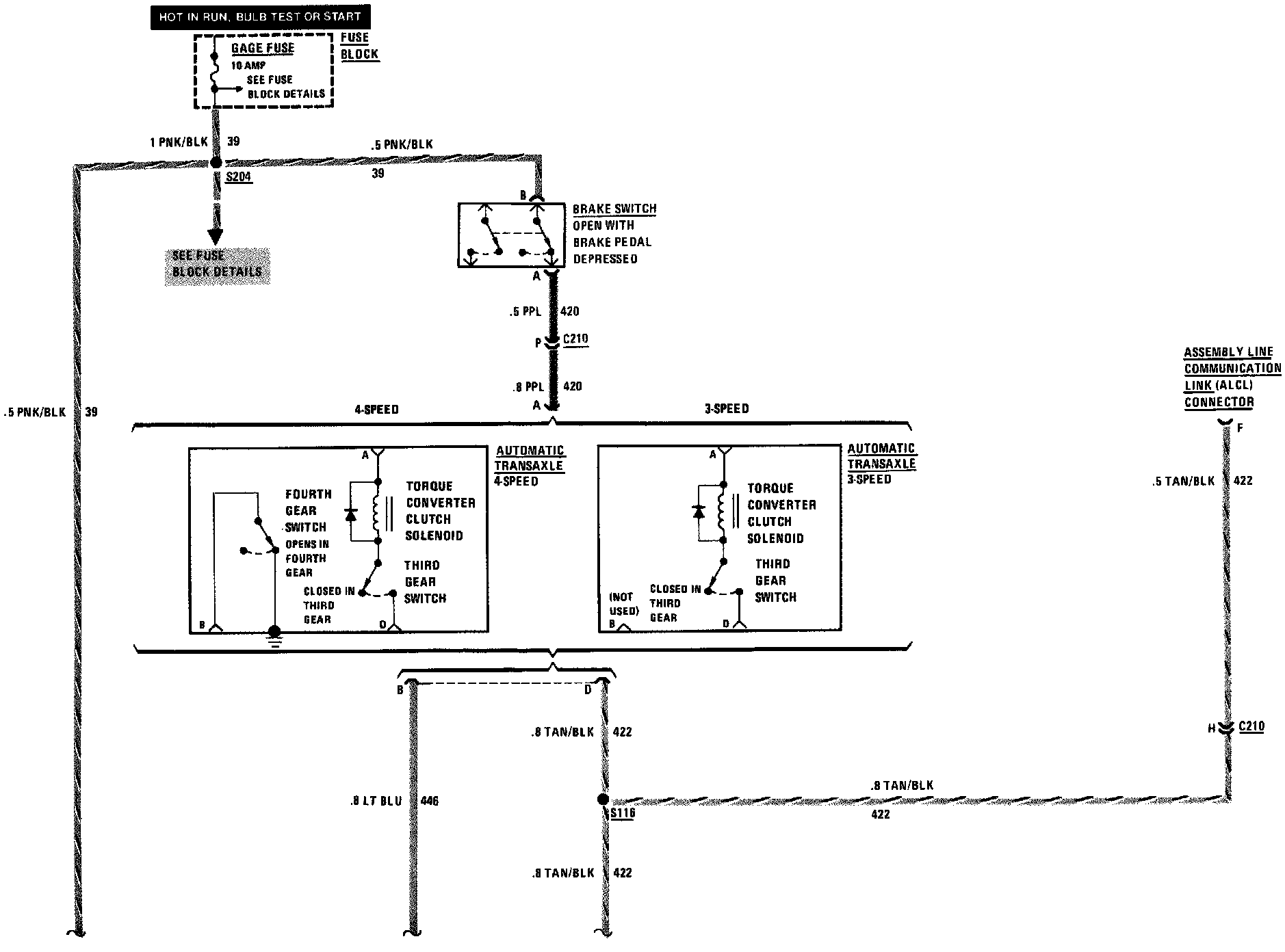

Vehicle Speed Sensors And Torque Converter Clutch (part 2):
