Turn Signals

Fig. 50 Hazard, Front Marker, Front Park, Stop & Turn Lamps Wiring Circuit (Part 1 of 2).:

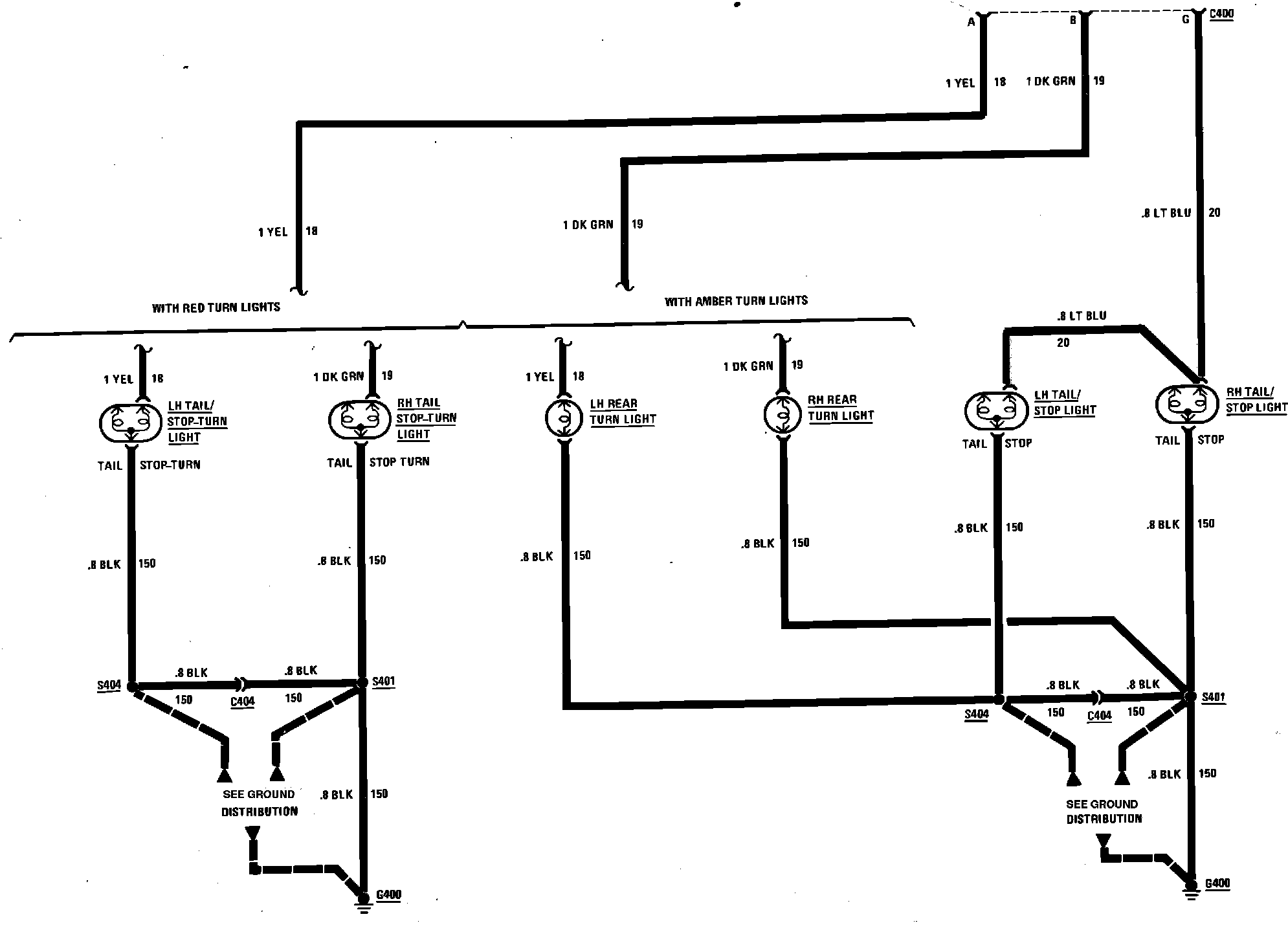

Fig. 50 Hazard, Front Marker, Front Park, Stop & Turn Lamps Wiring Circuit (Part 2 of 2).:
