Home >> Chevrolet >> 1985 >> Citation II L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radiator Cooling Fan Motor >> With A/C

With A/C

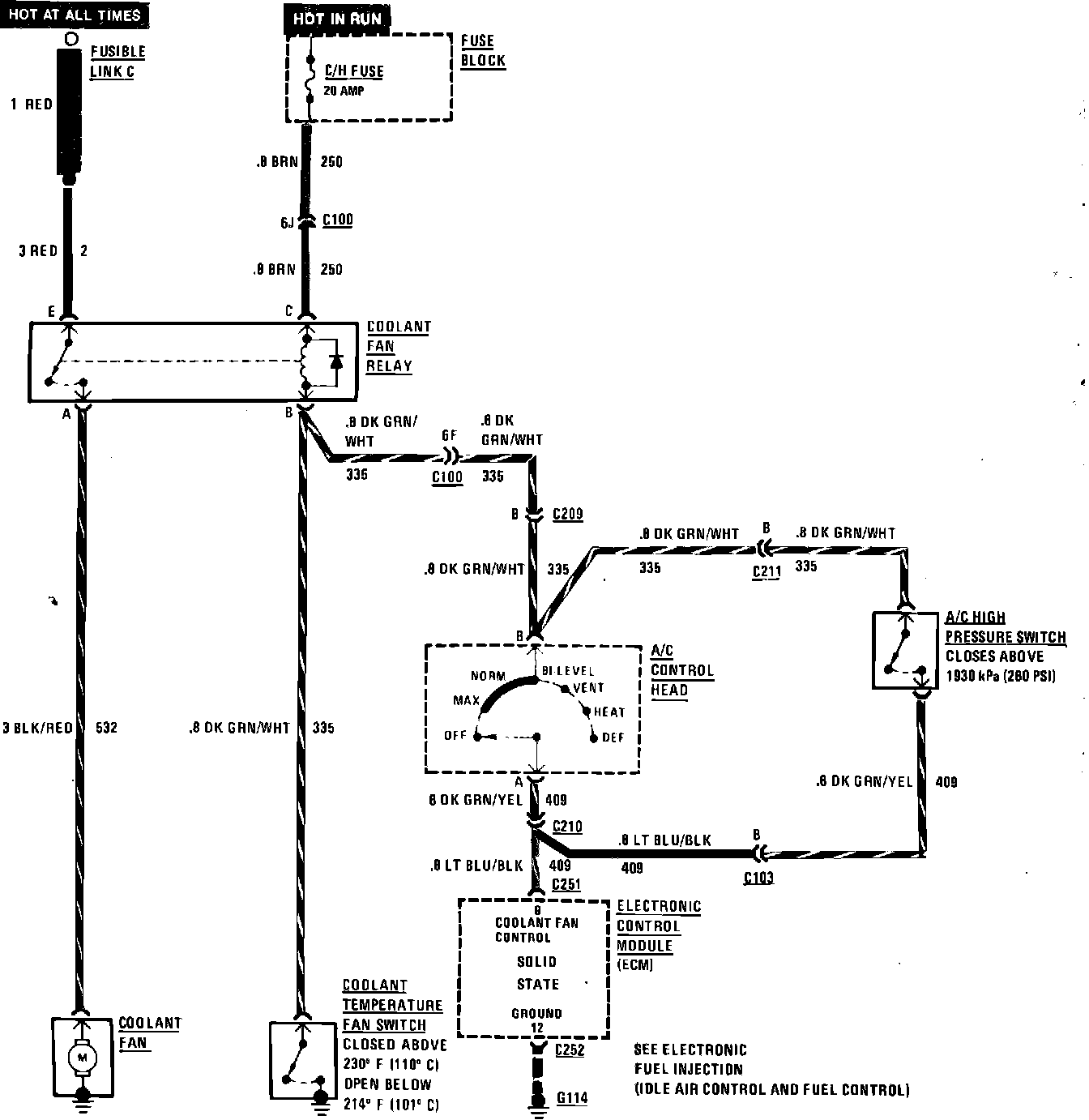

Fig. 34 Coolant Fan Wiring Circuit. 4 Cylinder, With A/C:
