Brake Warning Indicator
Brake Warning Indicator
Brake Warning System & Telltale Indicator Wiring Circuit:

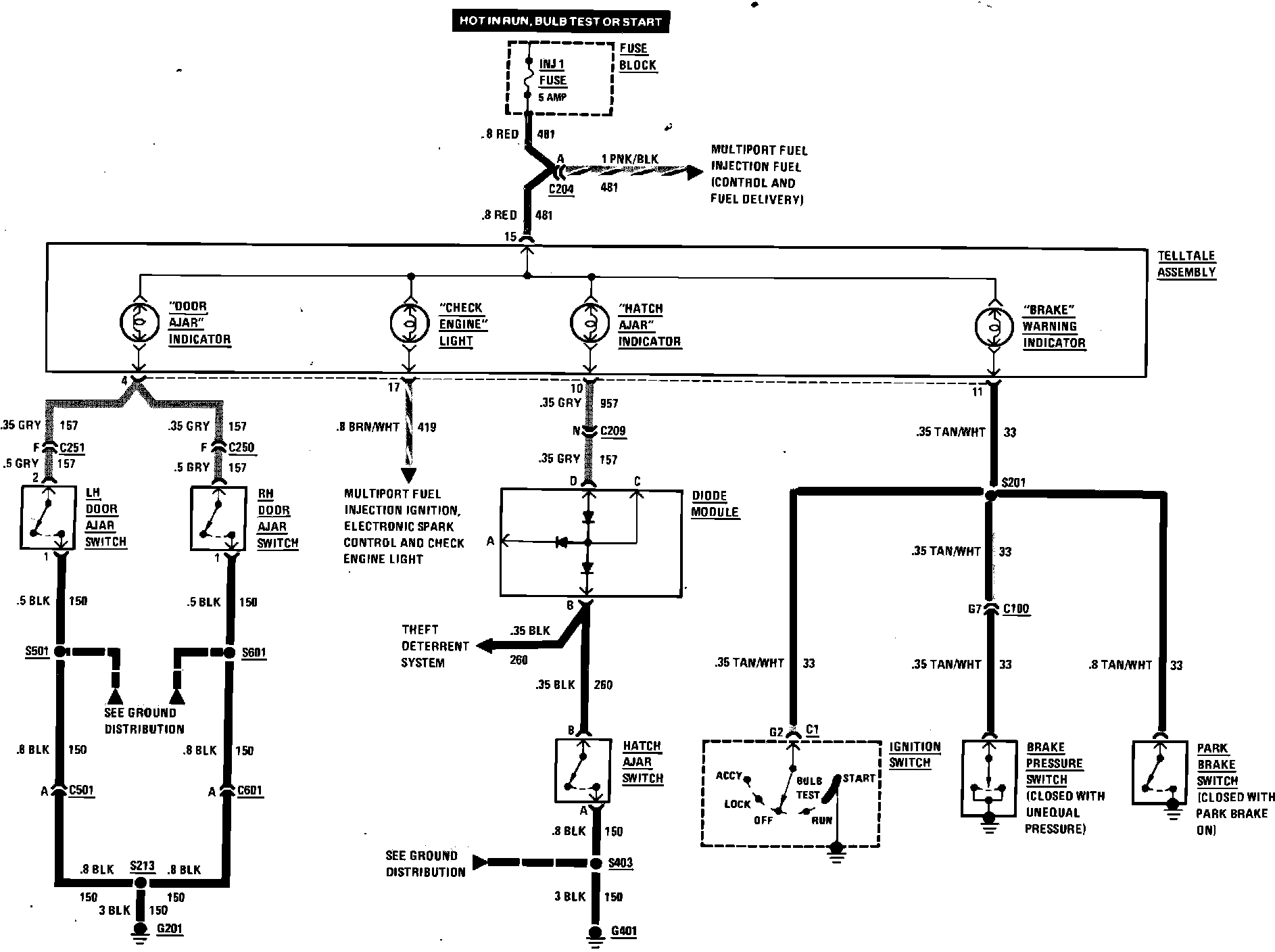

Brake Warning System & Telltale Indicator Wiring Circuit:
