Malfunction Indicator Lamp

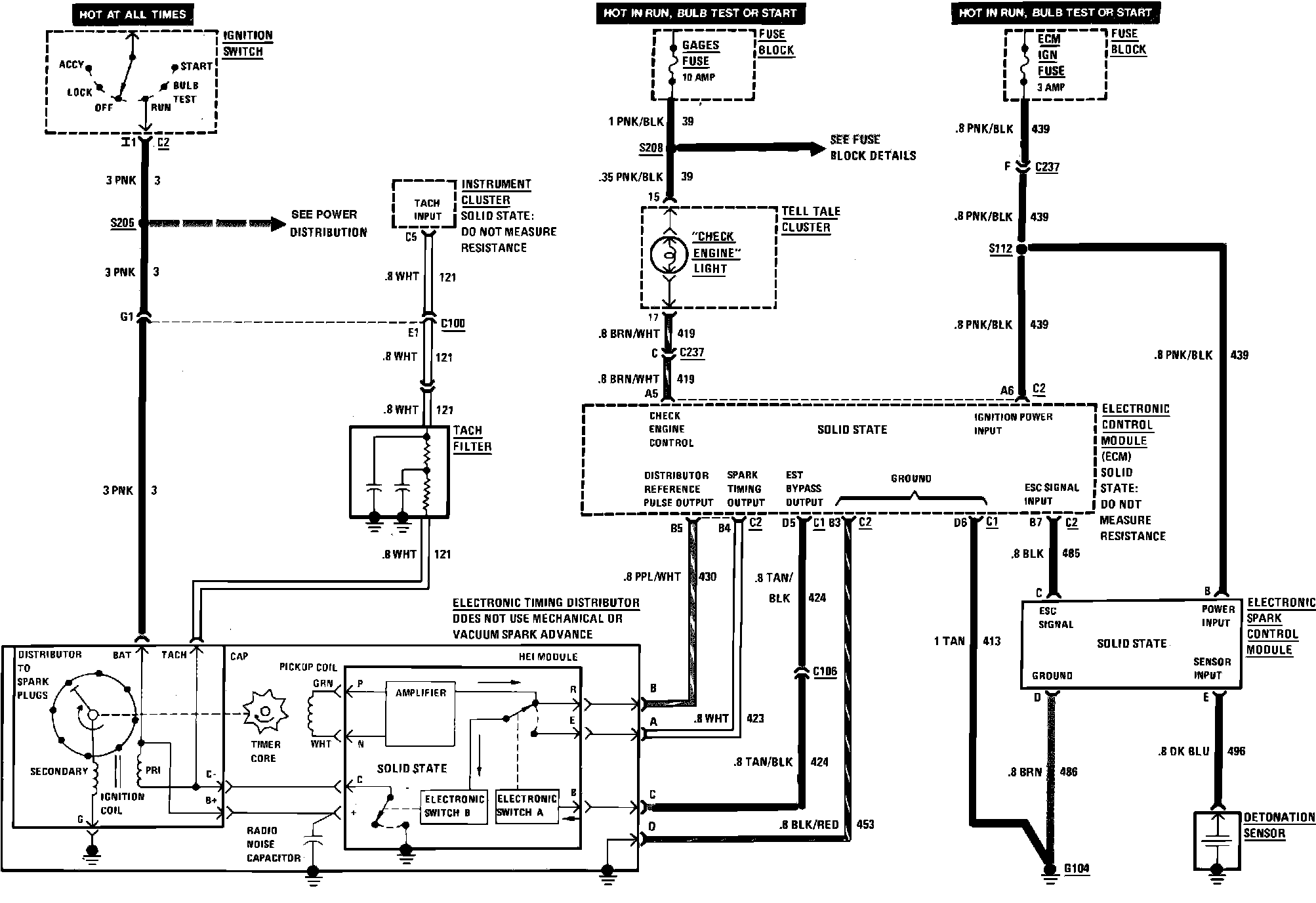

Multiport Fuel Injection Wiring Circuit (Check Engine Light & Electronic Spark Control):
