Warning System (Key In Ignition, Lights on Seatbelt)

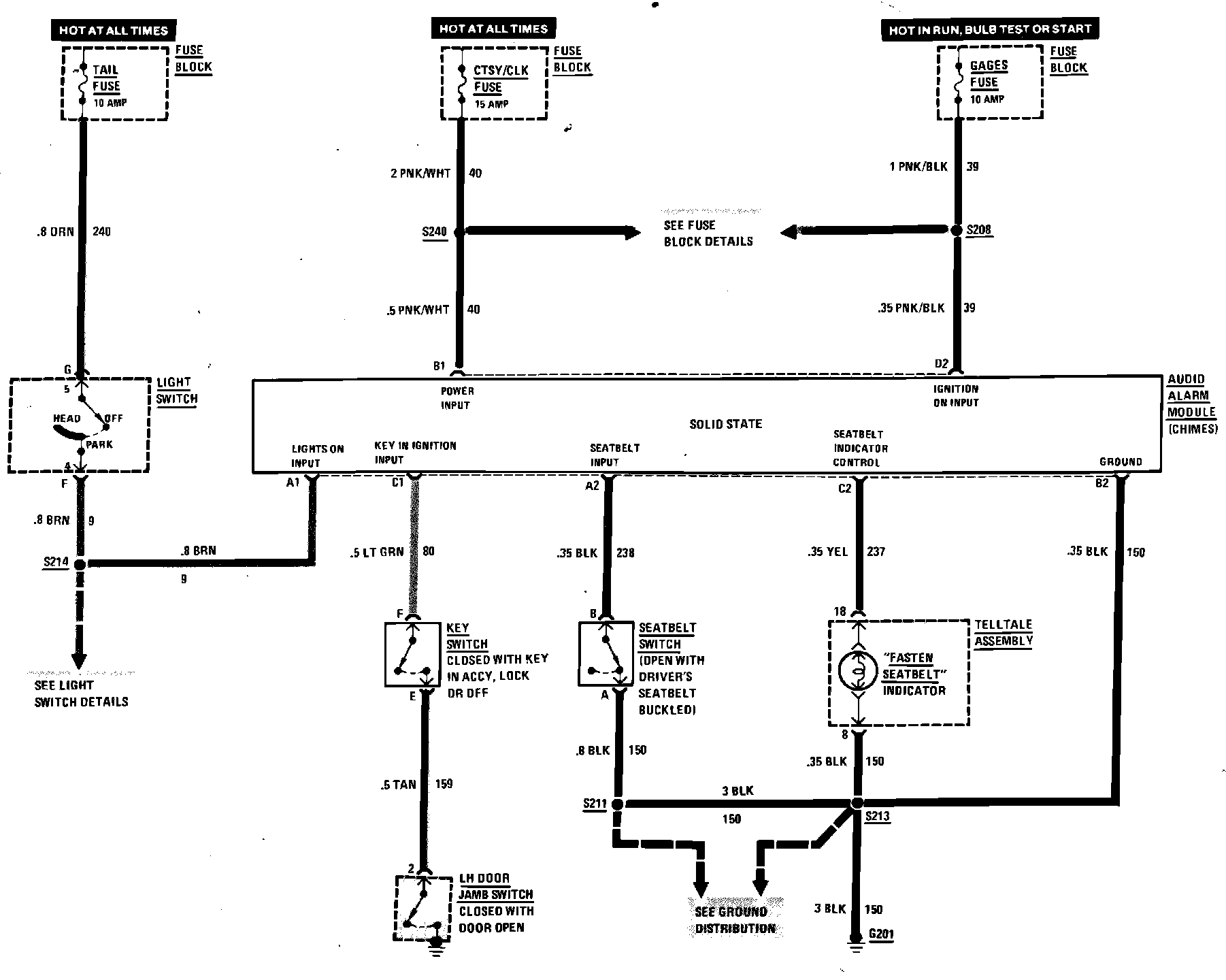

Warning System Wiring Circuit, (Key In Ignition, Lights On, Seatbelt):
