Manifold Absolute Pressure (MAP) Sensor

Cargo, Courtesy, Map & Vanity Lamp Wiring Circuit:

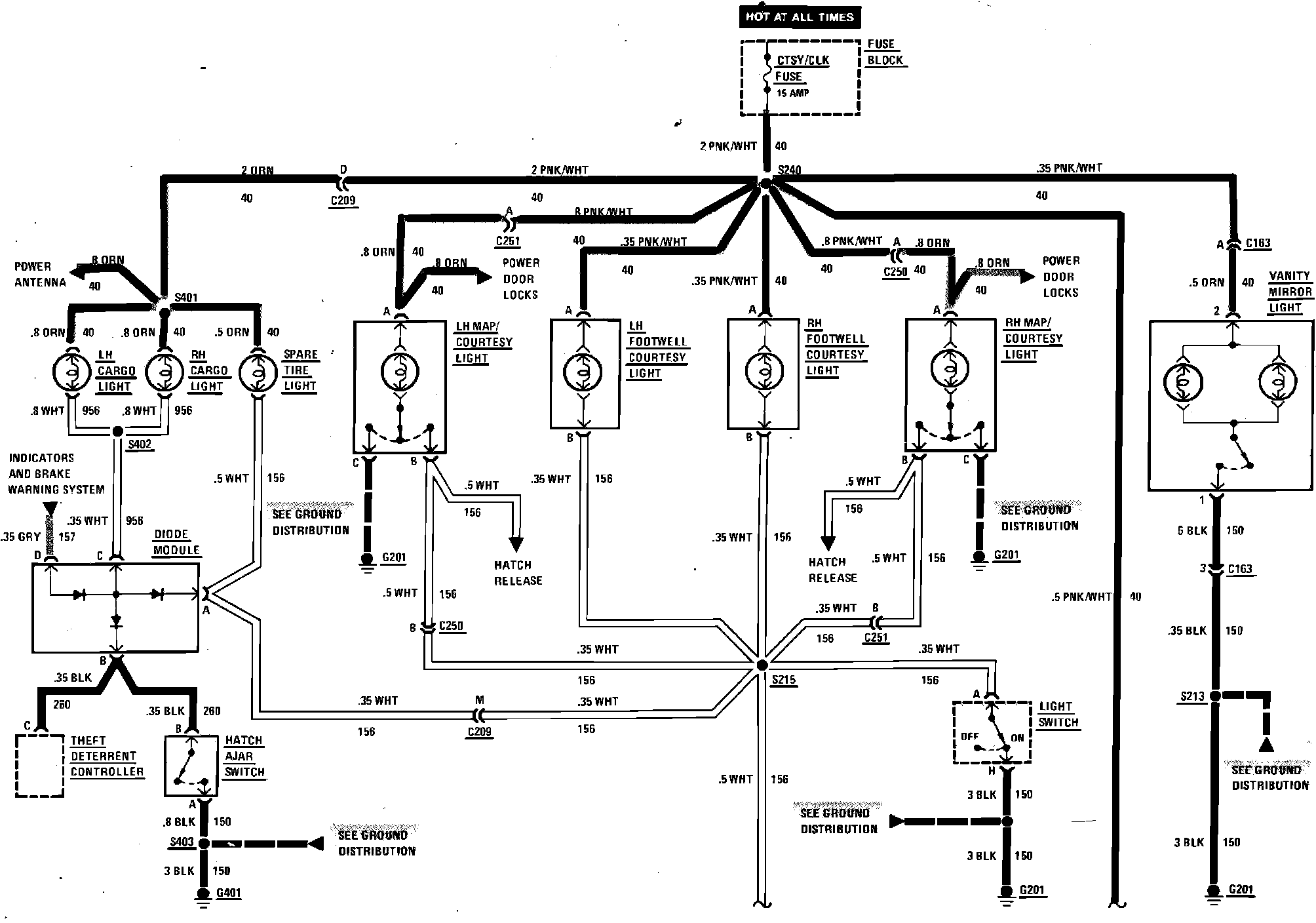

Cargo, Courtesy, Map & Vanity Lamp Wiring Circuit:
