Coolant Temperature Sensor
Coolant Temperature Sensor

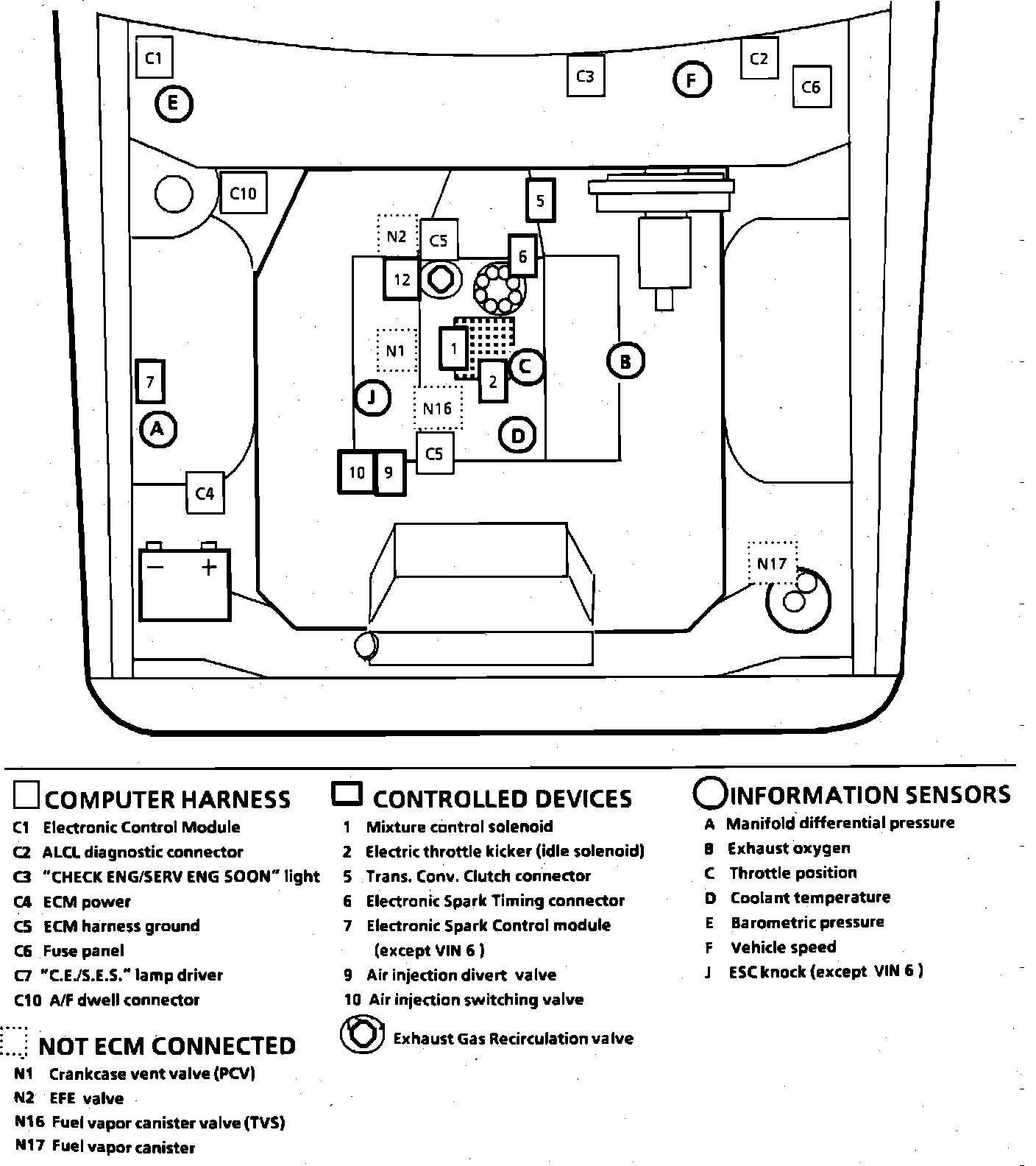

Engine Component Locations.:
Top Front Of Engine
Applicable to: V8-305/5.0L & V8-350/5.7L Engines
