Figure 31 V8-305 (5.0L) 4 Bbl. With A/T, Calif. (Vin 9)
Figure 31 V8-305 (5.0L) 4 Bbl. With A/T, Calif. (Vin 9)

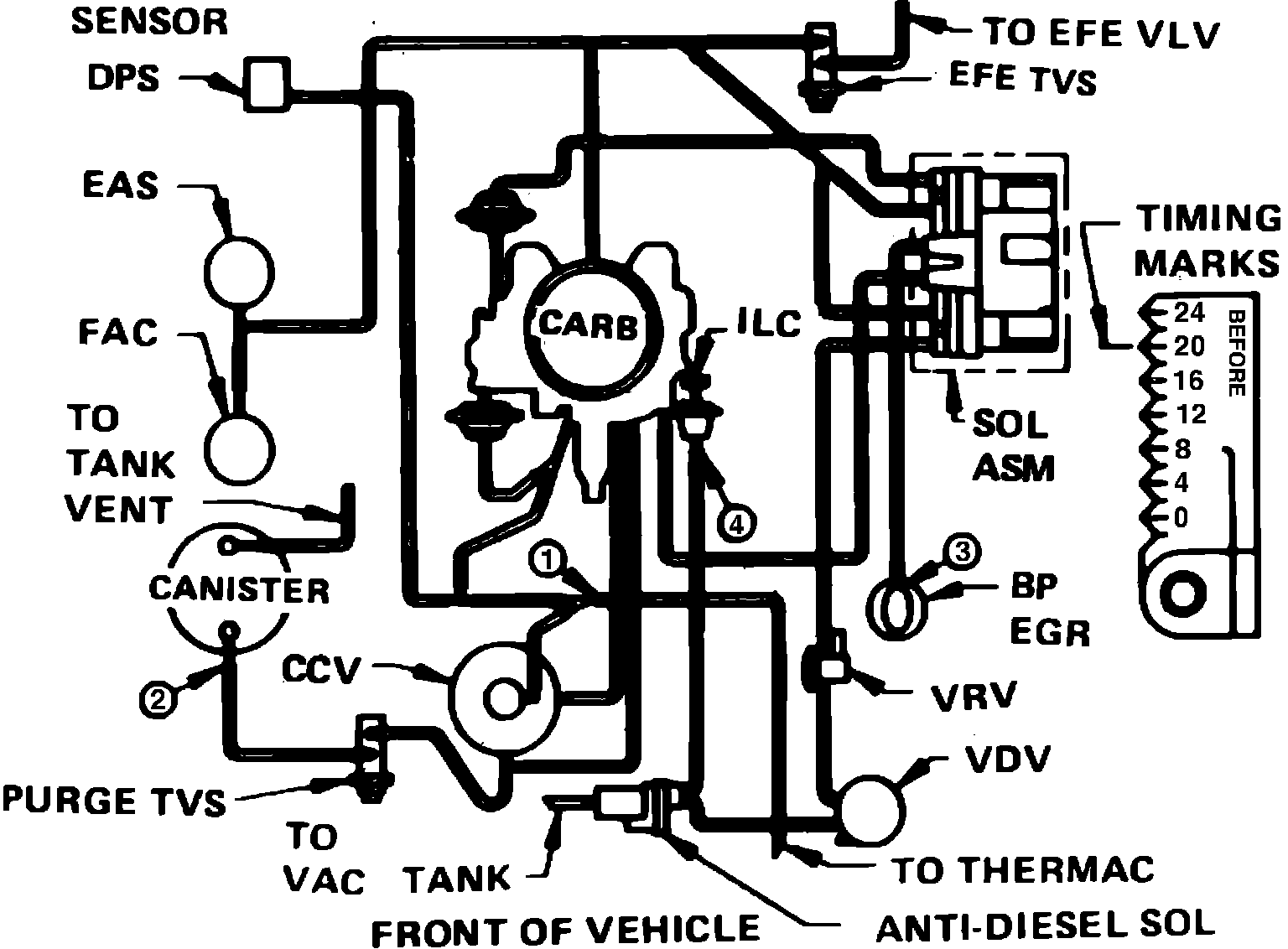

Fig. 31 Vacuum Hose Routing. 1985 V8-305 (5.0L) 4 Bbl. With A/T, Calif. (VIN 9):
