Instrument Panel Lights and Clock



Instrument Panel Lights and Clock

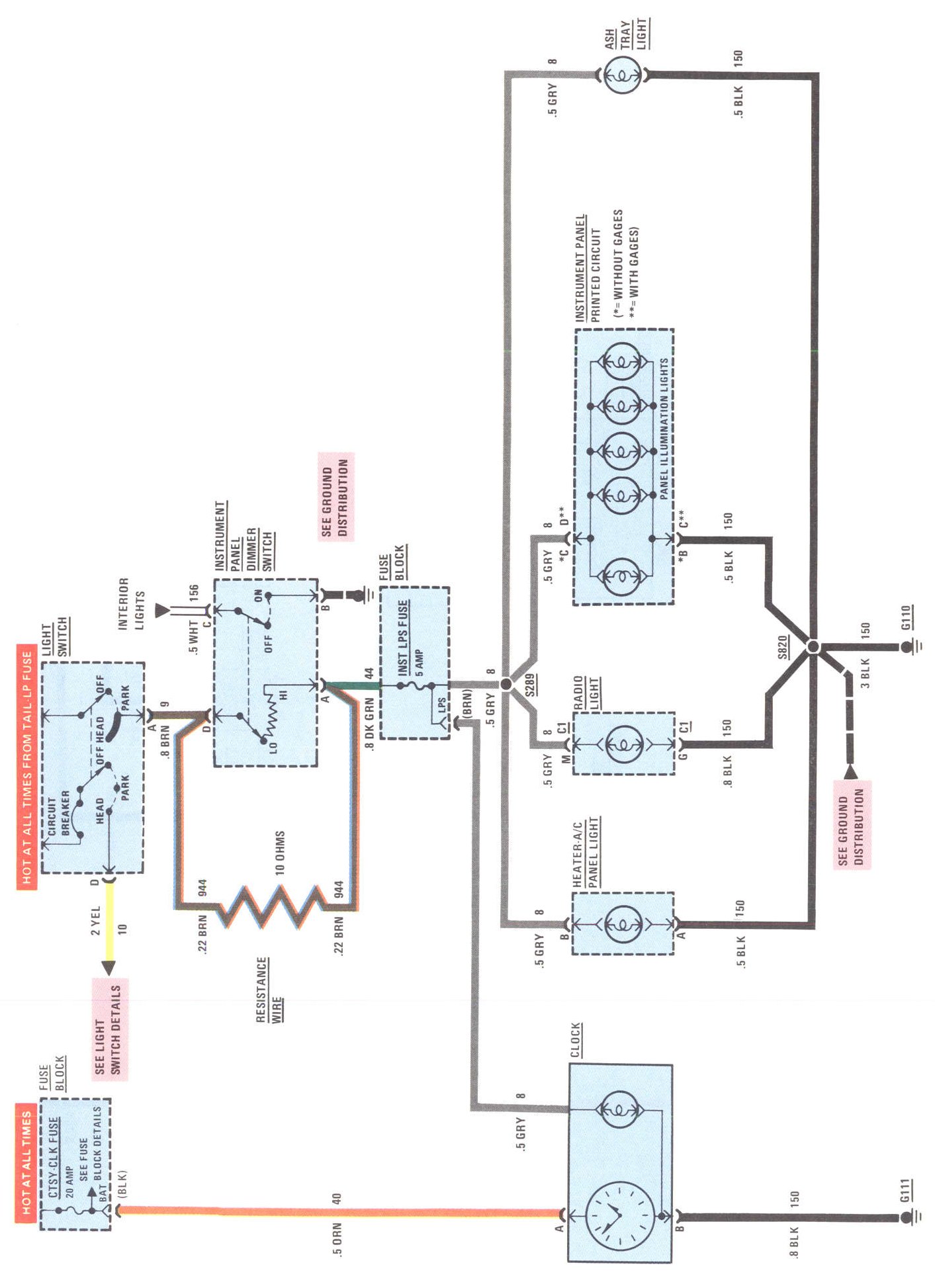

Vehicles With Footwell Courtesy Lights

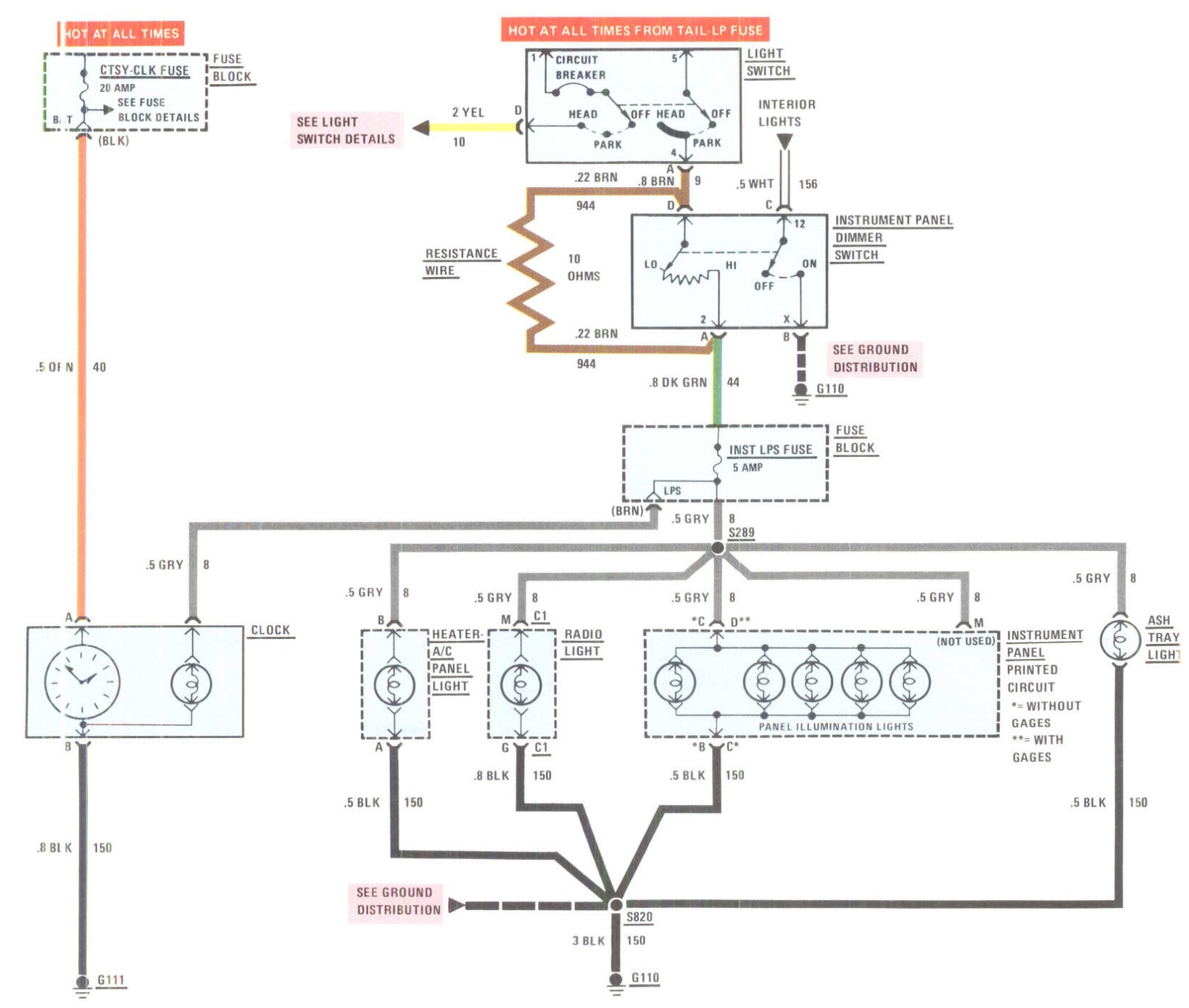

Vehicles Without Footwell Courtesy Lights
