Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1985
>>
Impala V8-305 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Diagrams
>>
Electrical Diagrams
>>
Tail / Rear Marker / License Lights
Tail / Rear Marker / License Lights
Tail / Rear Marker / License Lights

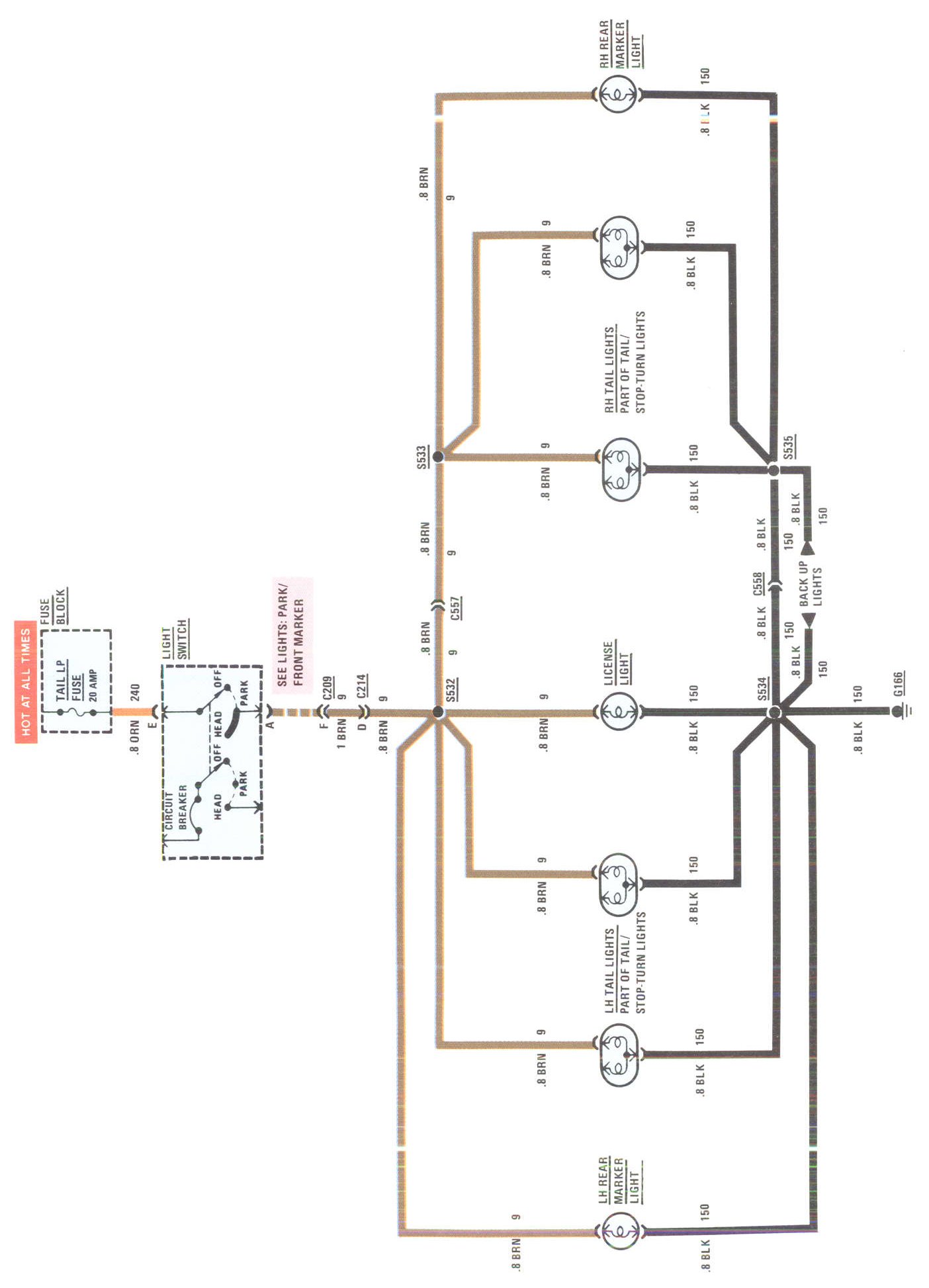

Station Wagon

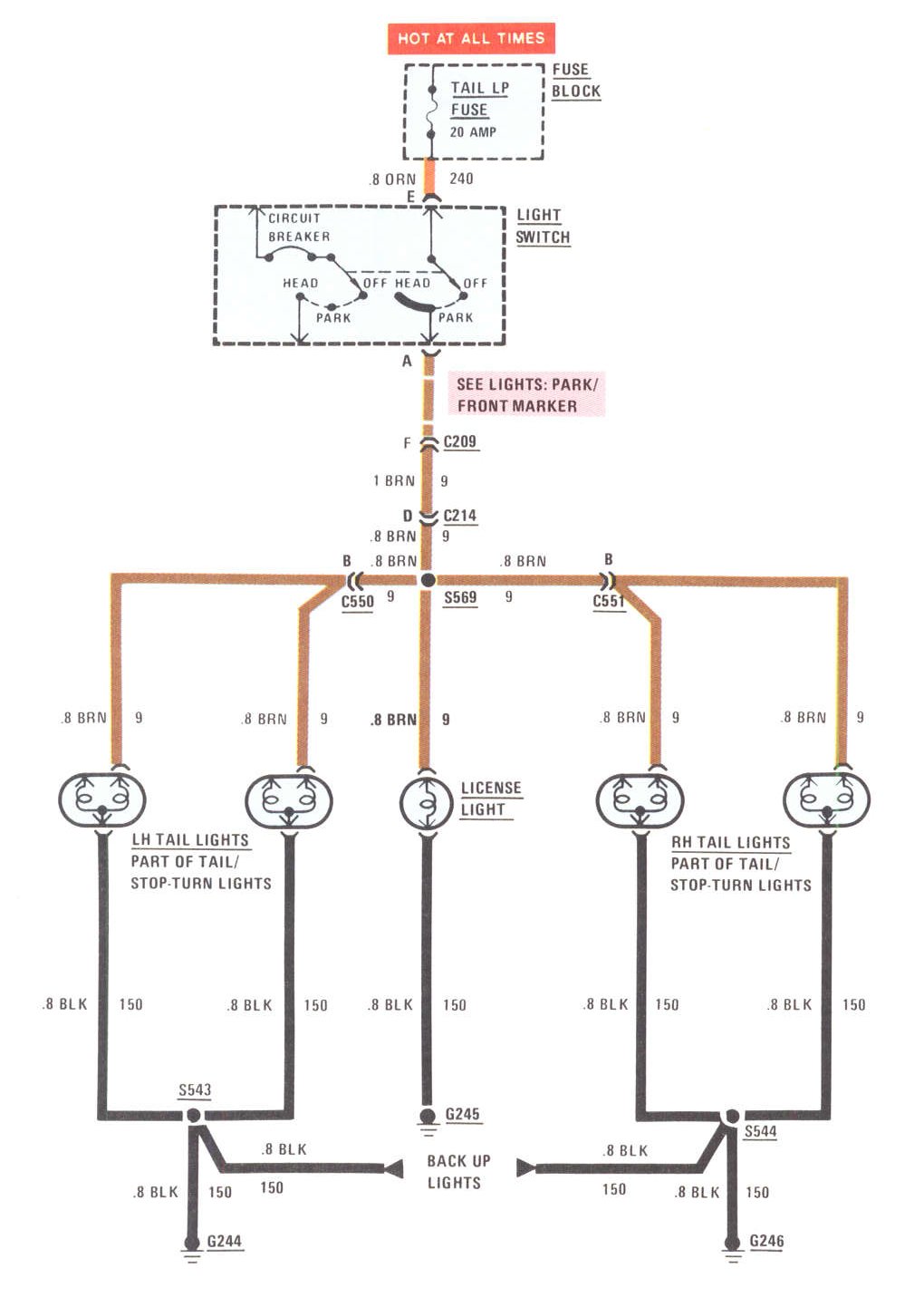

Except Wagon
