Body - Vinyl Trim and Vinyl Top Repair Information
Number: 85-10Section: 10 (I)
Date: Nov., 1984
Subject: VINYL TRIM AND VINYL TOP REPAIR INFORMATION
Model and Year: ALL 1985 MODELS
TO: ALL CHEVROLET DEALERS
Attached to the Service Manager's copy of this bulletin is information from U.S. Body Products regarding liquid vinyl color sprays and vinyl top repair material. This information should be reviewed with personnel in your dealership responsible for this type of repair. Most of these materials should be available through your local jobbers.
P.P.G. Industries (Ditzler) also manufactures vinyl paints for interior and exterior. The Ditzler material can be mixed by your local Ditzler jobber. If your local Ditzler jobber does not carry LIQUID VINYL PAINT (UCV), contact the nearest Ditzler warehouse. The warehouse will refer you to the nearest Ditzler jobber that is able to supply the material.
If U.S. Body Products material is not available locally, you may write, wire or phone U.S. Body Products at the address shown on the attached sheets. They will advise you of the availability of the material and will ship the material directly to your dealership pre-paid at your request. When contacting U.S. Body Products directly, give them the name of your local distributor so that they may follow-up in assisting the local supplier with your future needs.
U.S. Body Products also markets the VIP compound, which is a 1 oz. tube of vinyl repair compound. This vinyl compound has been used in the manufacturing and GMAD plants for several years, thus offering a different repair procedure for minor vinyl blemishes.
FACTORY MATCHEDVINYL TOP COLOR SPRAYS:
FACTORY MATCHED
VINYL TOP COLOR SPRAYS
Vynicolors may be purchased in Colorpaks or individual quarts.
COLORPAK KITS for 1985 GM VINYL TOPS
Includes all items shown above for each GM Div. - Factory Matched Colors in Quarts - Ready-to-Spray
CHEVROLET PONTIAC OLDSMOBILE BUICK CADILLAC
Kit No.: CHEV-85-VTQ Kit No.: PONT-85-VTQ Kit No.: OLDS-85-VTQ Kit No.: BU-85-VTQ Kit No.: CAD-85-VTQ
$159.00 $117.00 $199.00 $199.00 $382.00
Individual Colors, Prep Conditioners & Vinyl Repair Items
VCQ Vynicolor Quarts by Class - See Prices Above VPCA Aerosol Vinyl Prep Conditioner . . . . . . . . . . . .$3.95
VCA Vynicolor Aerosol 16 oz. (Spec. Order) 6 Min.....$9.95 PVC Vinylweld Patching Compound, Heat Curable.......................$7.95
VPCQ Quart Vinyl Prep Conditioner....................$5.75 GDC Grain Die Compound..............................................$5.50
Vip Tube, Color Matched Air Dry Vinyl Repair Compound..$9.95 SMR Silicone Mold Release.............................$5.50
PP-2250 Polypropylene Primer................................$5.95
Important Procedures:
Quart colors should not be mixed with thinners. Pour quart vinyl colors directly thru strainer into cup of spray gun. Vinyl surfaces should be cleaned before spraying to remove surface films. Wipe down with clean cloth wetted with VPC Vinyl Prep Conditioner to insure a perfect bond. For hard plastic parts use PP-2250 Polpropylene Primer.

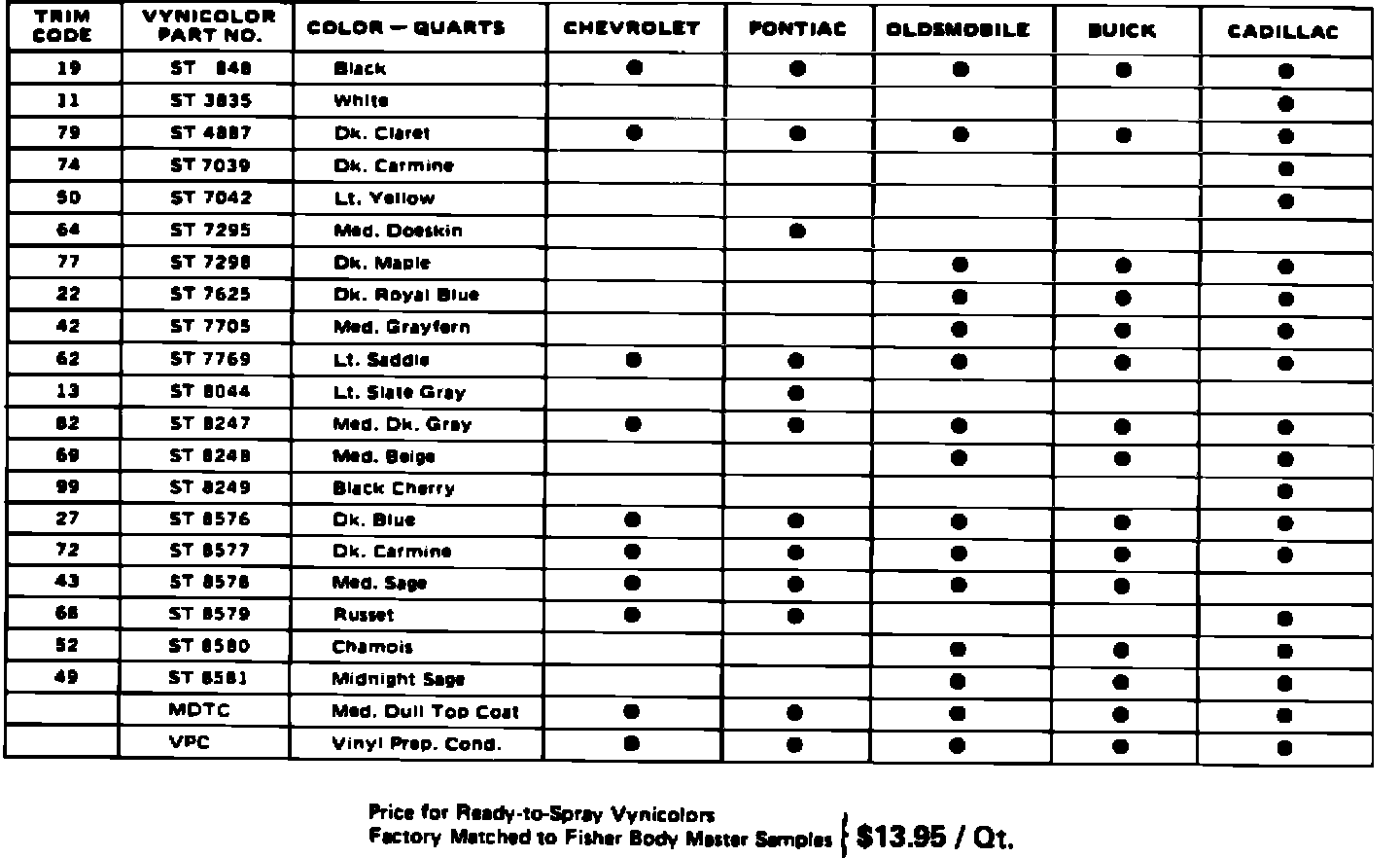

INTERIOR VINYL COLOR SPRAYS:
FACTORY MATCHED
INTERIOR VINYL COLOR SPRAYS
FOR SEATS, DOORS & HEADLINERS (ST Soft Trim)
PREP PP-2250 is a plastic paint primer for hard plastic parts.
MATERIALS VPCQ prepares and conditions soft vinyl trim before color spraying.
Vynicolors may be purchased in colorpaks or individual quarts.
COLORPAK KITS for 1985 GM INTERIOR TRIM (Seats & Doors) Includes all items shown above for each GM Div. - Factory Matched Colors in Quarts - Ready-to-Spray
CHEVROLET PONTIAC OLDSMOBILE BUICK CADILLAC
Kit No.: CHEV-85-INT Kit No.: PONT-85-INT Kit No.: OLDS-85-INT Kit No.: BU-85-INT Kit No.: CAD-85-INT
$131.00 $159.00 $199.00 $199.00 $256.00
GENERAL INFORMATION ON 1985 INTERIOR VINYL COLOR SPRAYS
VPCQ Quart Vinyl Prep Conditioner . . . . . . . . . . $5.75 PP-2250 Plastic Paint Primer for hard plastic parts
VIP Tube, color matched air dry vinyl repair com- 16 oz. aerosol for polypropylene . . . . . . . $5.95
pound for scratches, abrasions, small holes . $9.95 VCA Vynicolor Aerosol 16 oz. Spec. Order (6 min.) $9.95 ea.
FACTORY MATCHEDINSTRUMENT PANEL COLOR SPRAYS:
FACTORY MATCHED
INSTRUMENT PANEL COLOR SPRAYS
Vynicolors may be purchased in colorpaks or individual quarts.
COLORPAK KITS for 1985 GM INSTRUMENT PANELS Includes all items shown above for each GM Div. - Factory Matched Colors in Quarts - Ready-to-Spray
CHEVROLET PONTIAC OLDSMOBILE BUICK CADILLAC
Kit No.: CHEV-85-IPQ Kit No.: PONT-85-IPQ Kit No.: OLDS-85-IPQ Kit No.: BU-85-IPQ Kit No.: CAD-85-IPQ
$131.00 $187.00 $242.00 $199.00 $326.00
MODEL 747 SPRAY PAK:
MODEL 747 SPRAY PAK . . . . . . . . . . . . . . $9.95 complete
Offers the convenience of Aerosol spraying when using Quart material. Portable, self-contained, hand-held SPRAY PAK has separate jar for points and a replaceable Propellant Power Unit. Matched headpiece assembly lets you make your own spray can in one minute. Large 13 oz. Propellant Unit will deliver One Quart of paint to the job with uniform pressure and spray pattern. Replacement Propellent Power Units . . . . . . @ $4.95 each

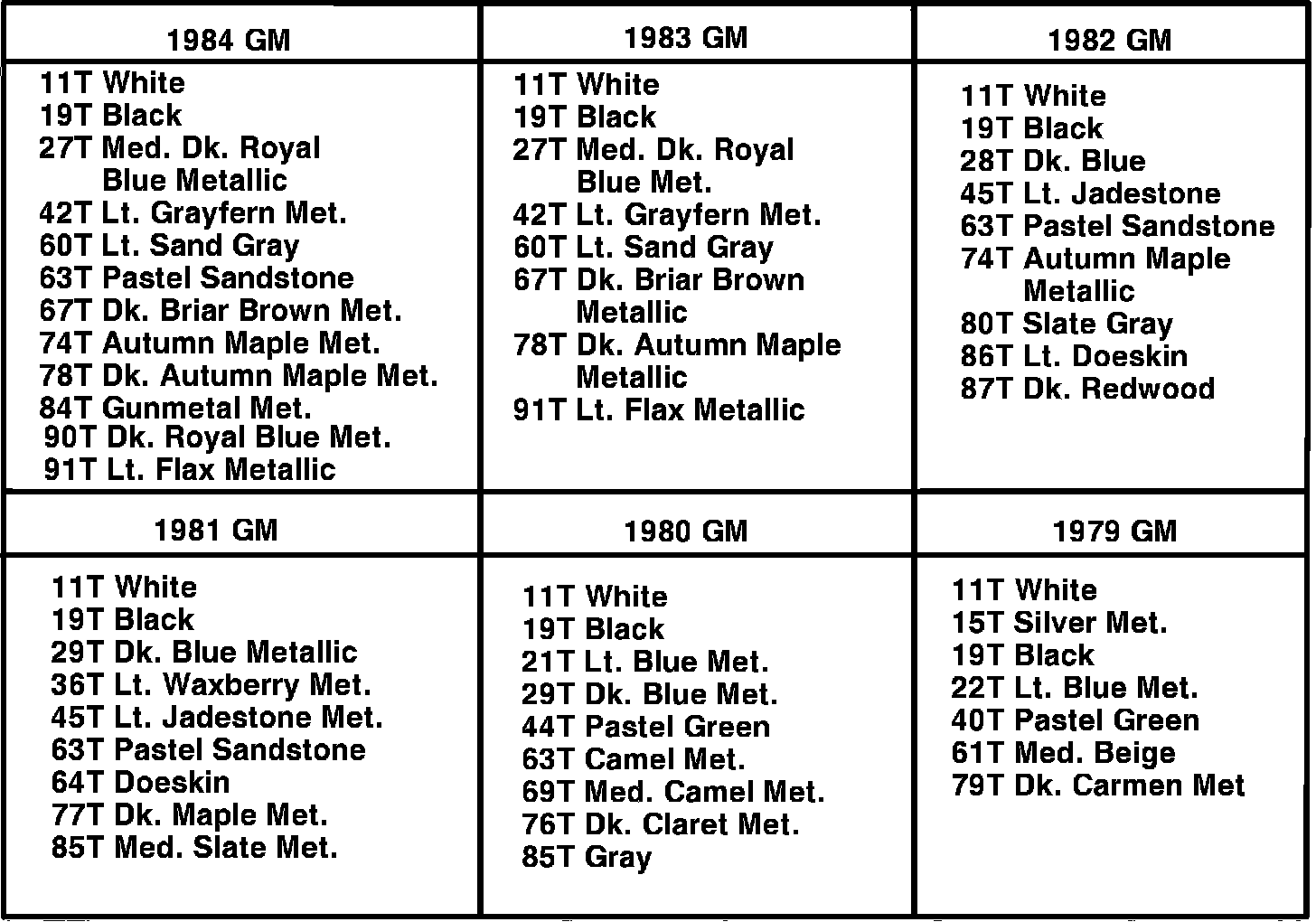

VINYL TOP COLOR CODES
���\:
��\:

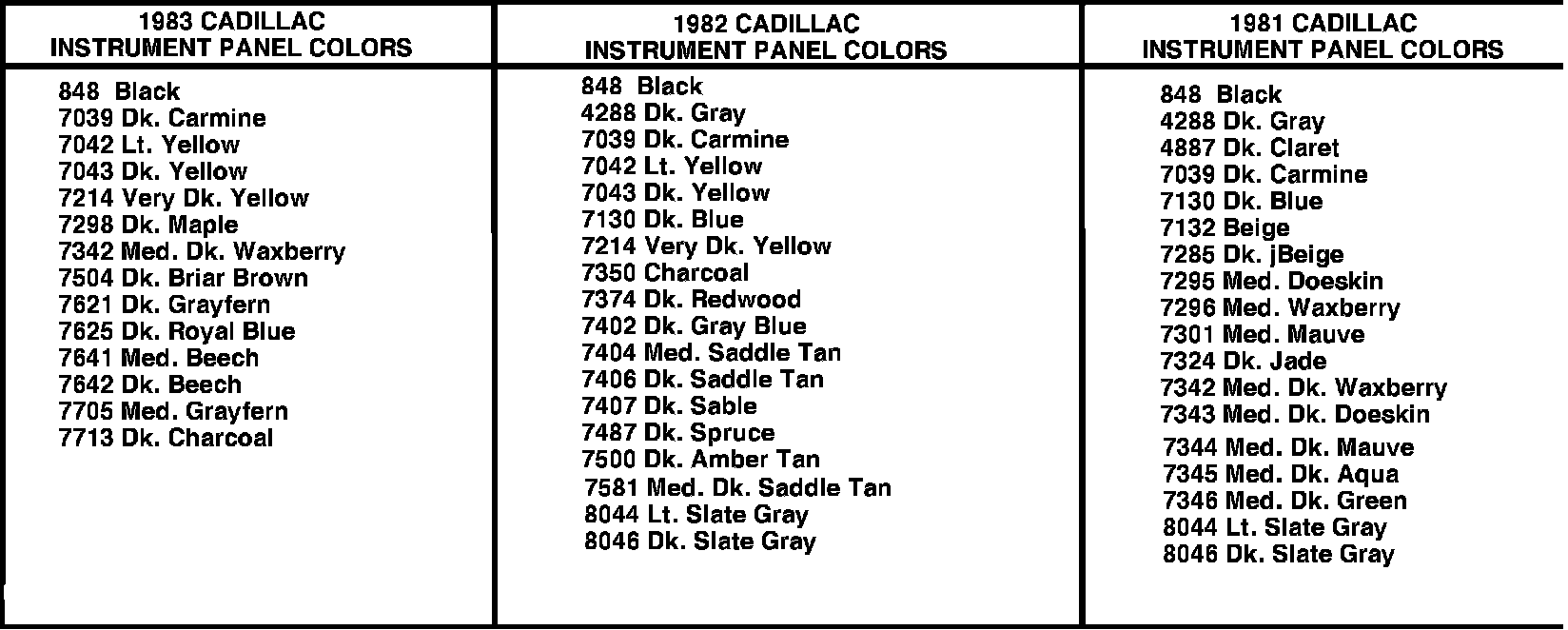

INSTRUMENT PANEL COLORS
