A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Chart 1 Dwell Fixed Under 15
Chart 1 Dwell Fixed Under 15

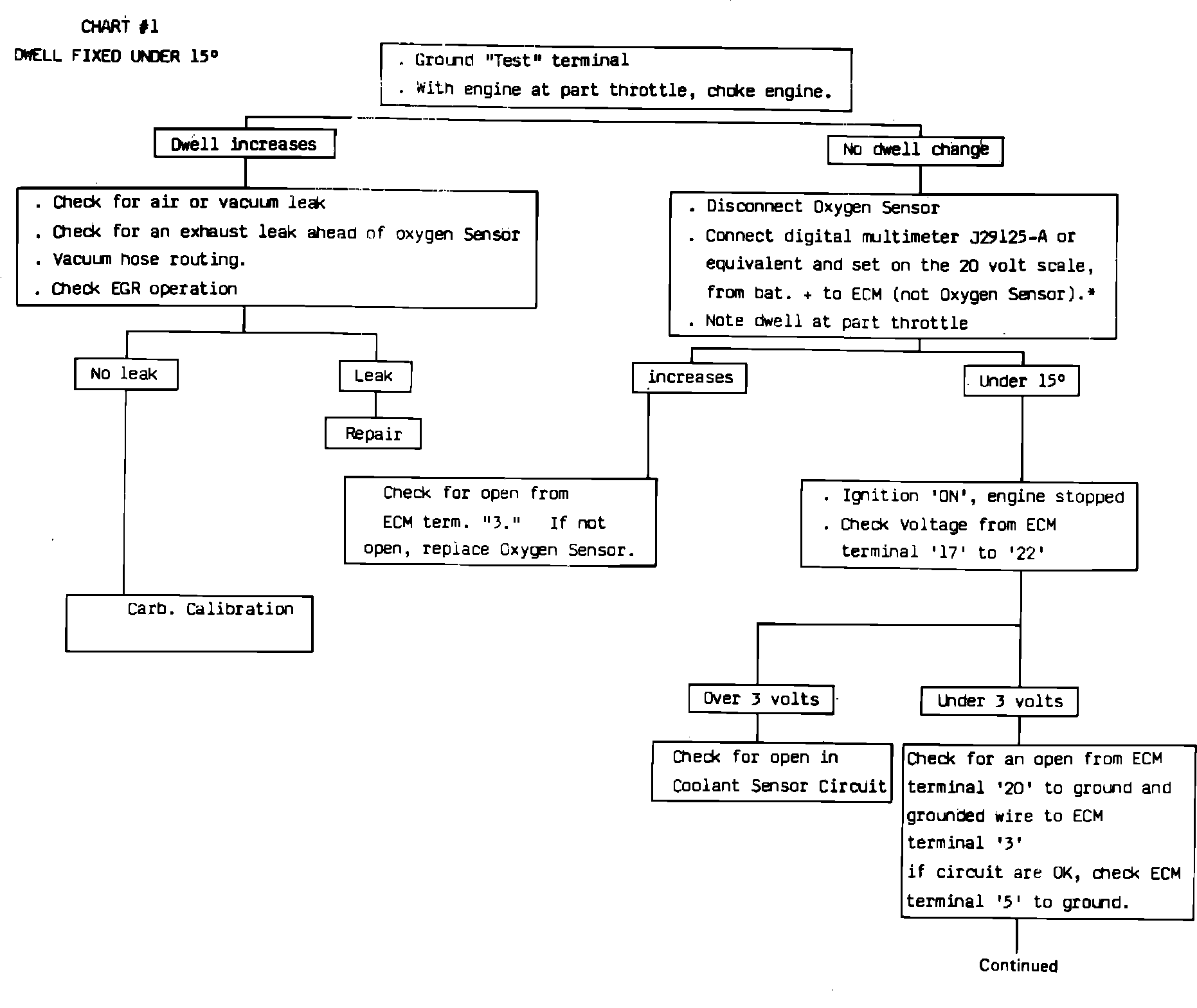

Fig. 8a Dwell fixed under 15 (Part 1 of 2):
Fig. 8b Dwell fixed under 15 (Part 2 of 2):
