Home
>>
Chevrolet
>>
1986
>>
Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Mono System
With Mono System

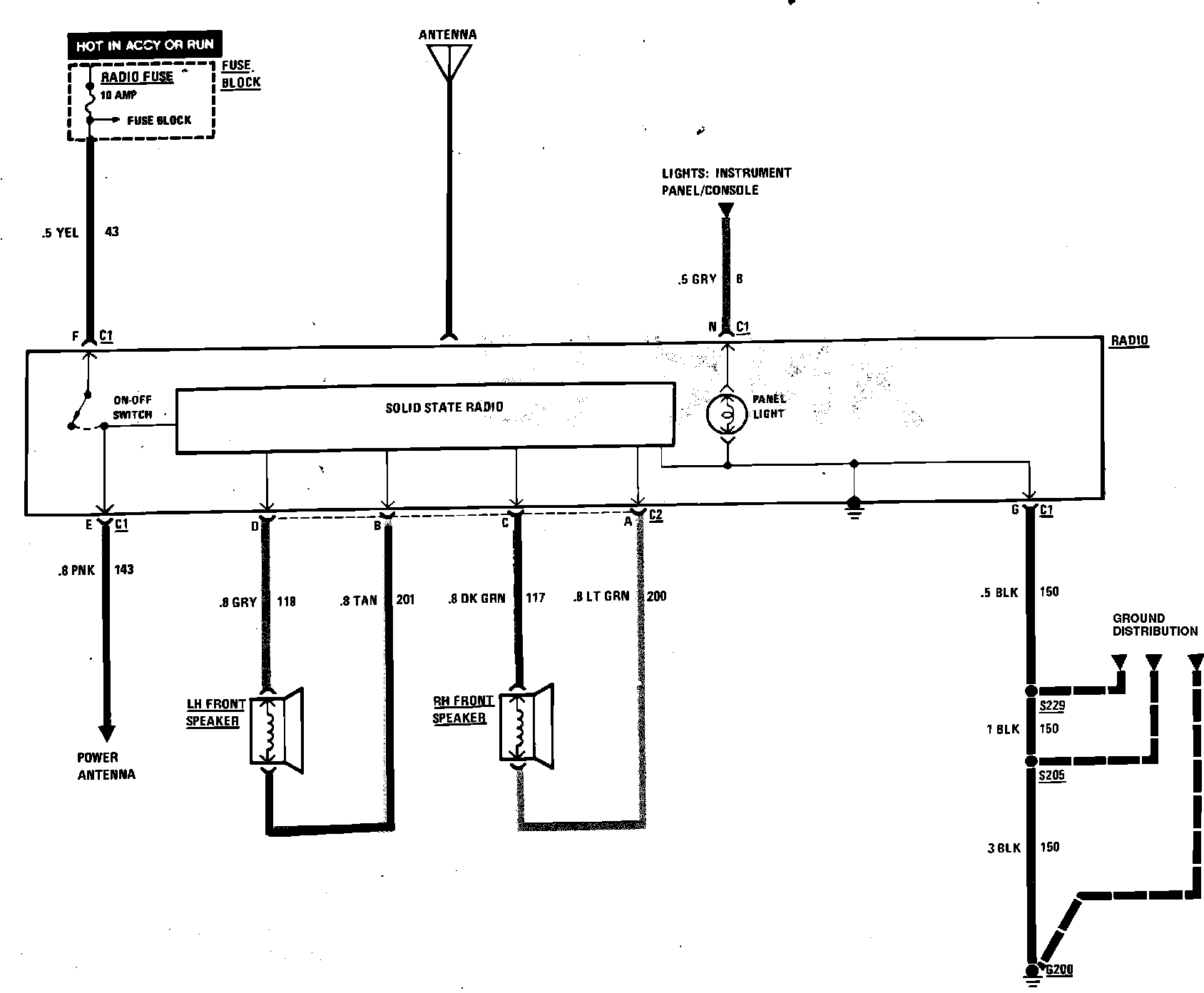

Radio Wiring Circuit. W/Monaural Radio:
