Home >> Chevrolet >> 1986 >> Camaro L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Cruise Control >> Part 1 of 2 >> Exc. Berlinetta

Exc. Berlinetta

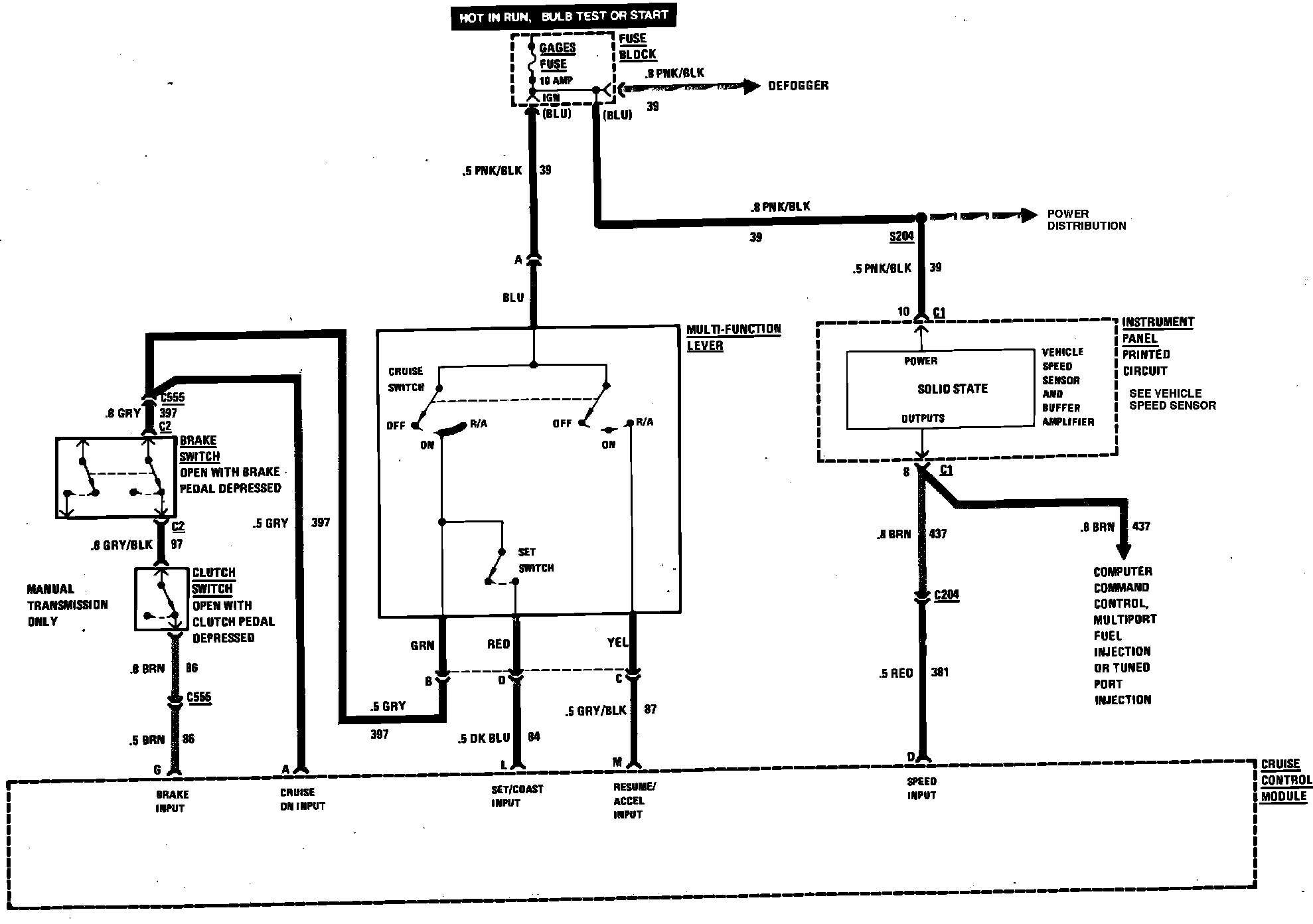

Cruise Control Vacuum & Wiring Circuit (Part 1 of 2). Exc. Berlinetta:
