Check Engine Light, Ignition System & Tachometer

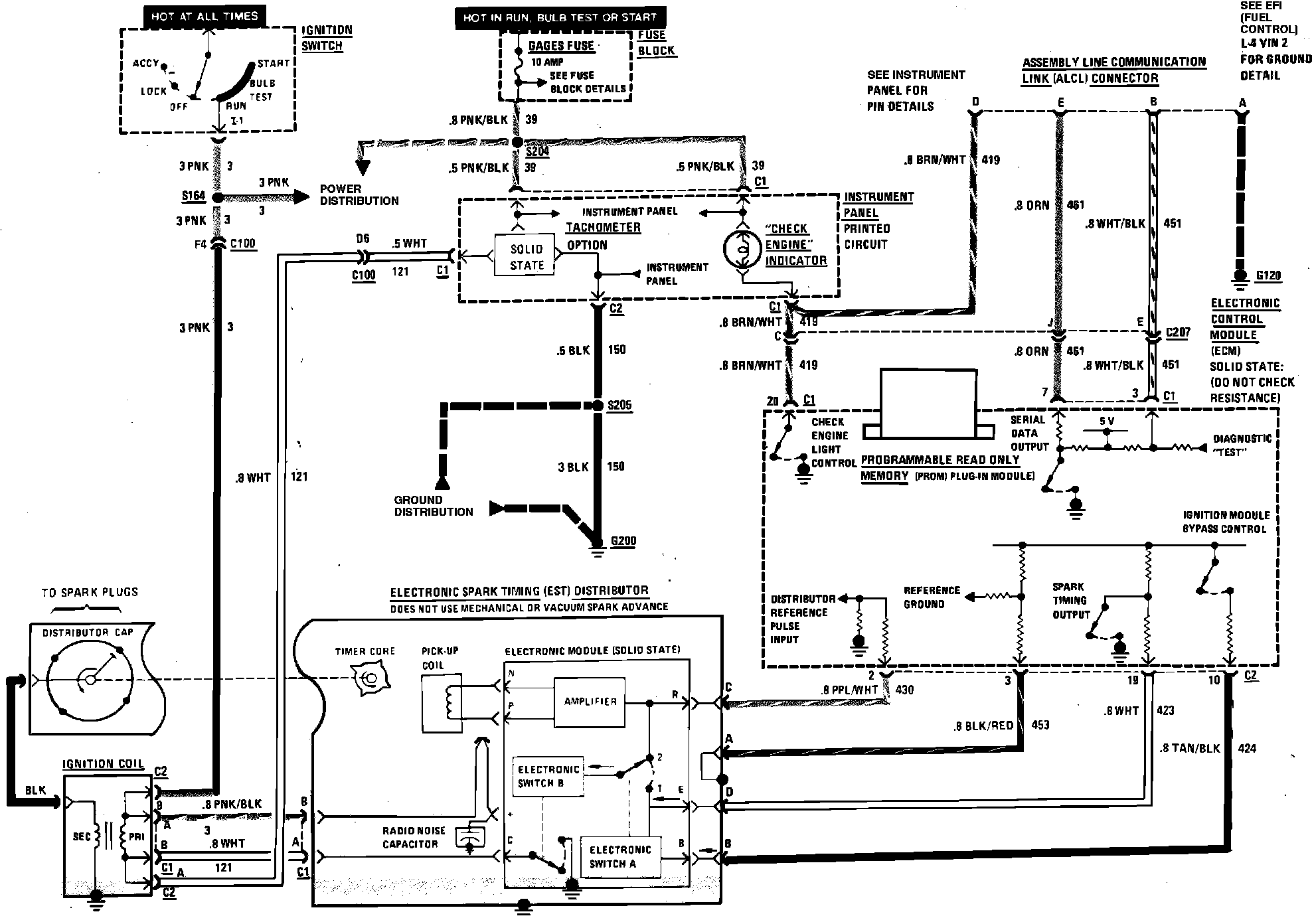

Throttle Body Injection Wiring Circuit (Check Engine Lamp, Ignition & Tachometer):
