Vehicle Speed Sensor (VSS)

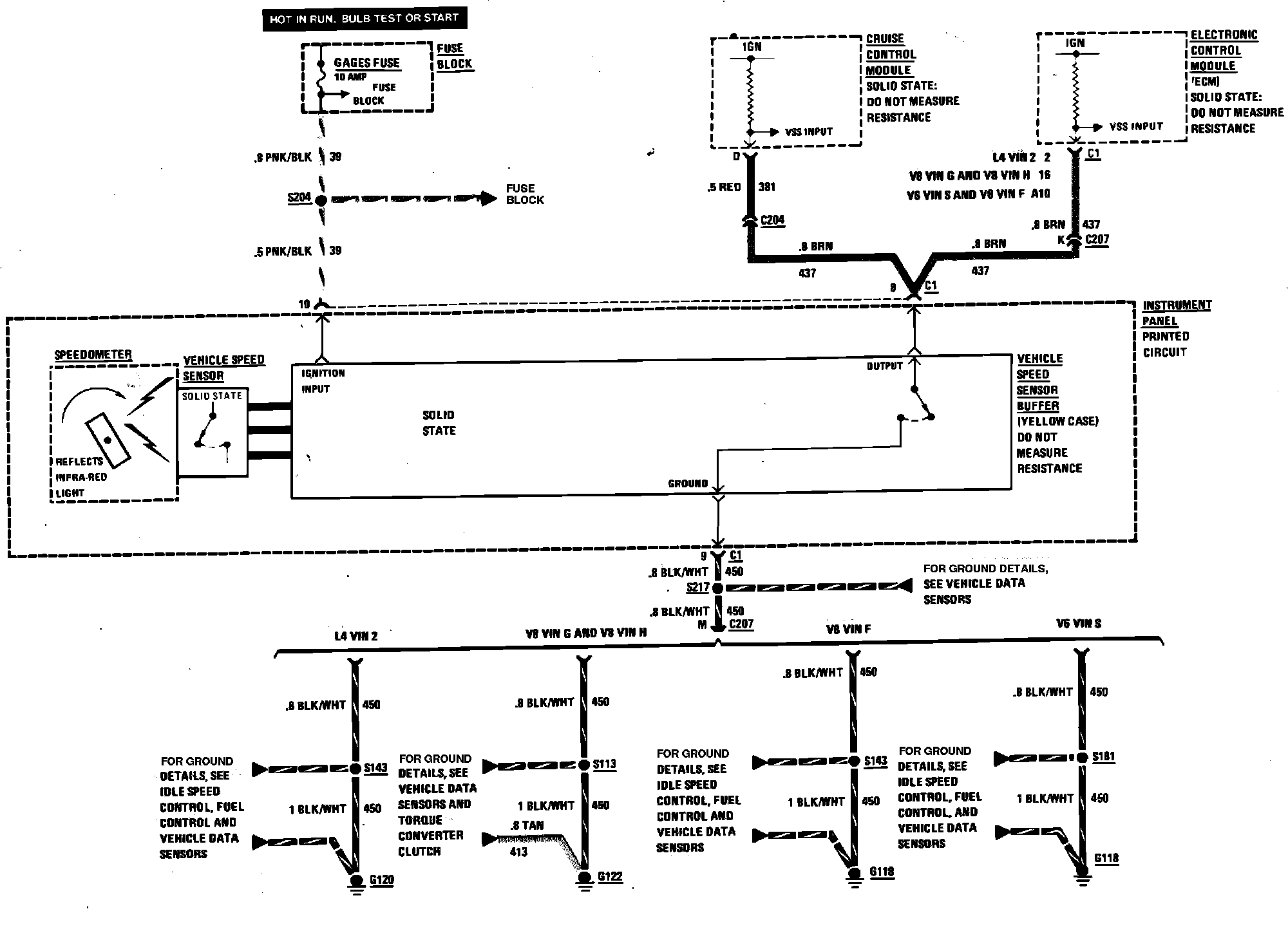

Vehicle Speed Sensor Wiring Circuit. Exc. Berlinetta:



Vehicle Speed Sensor Wiring Circuit. Berlinetta:
