Detonation Sensor

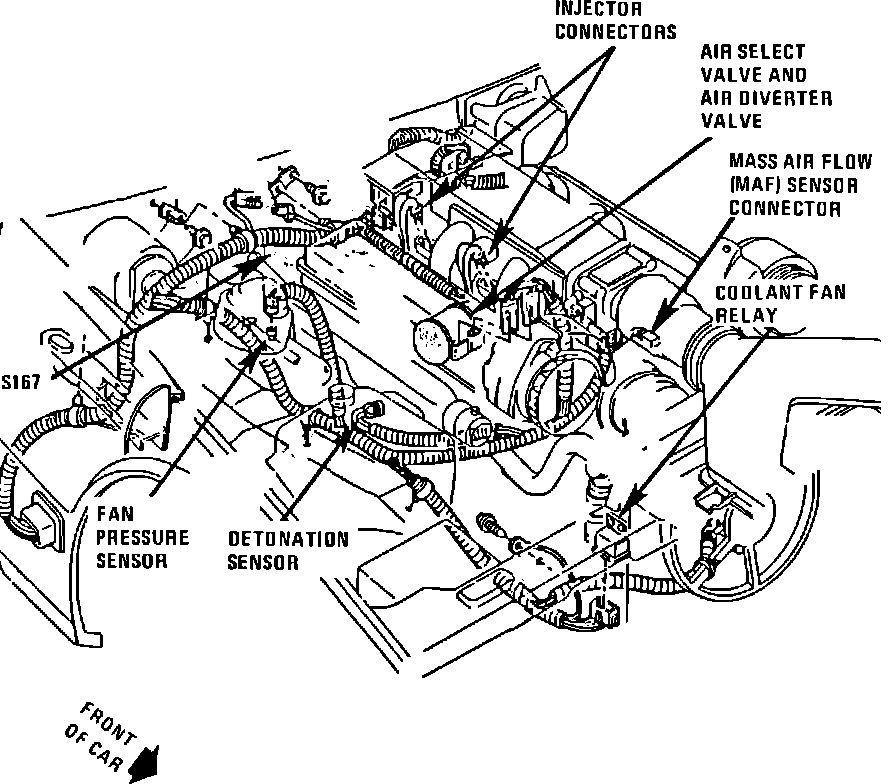

Detonation Sensor
RH side of engine:
Lower LH Side Of Engine Near Starter Solenoid
